Switch gestionado Cisco Catalyst 9200L

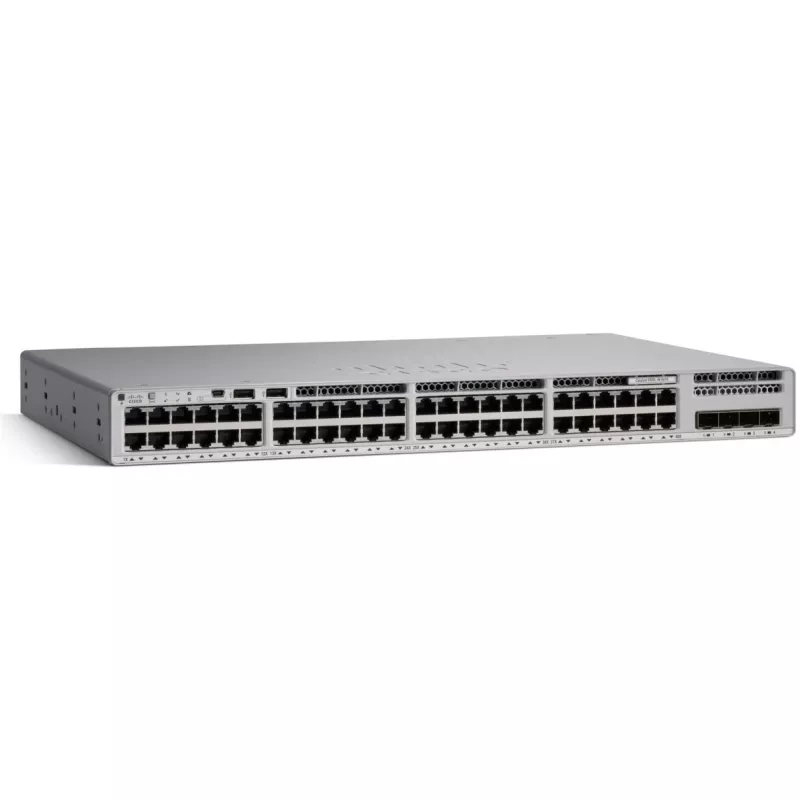

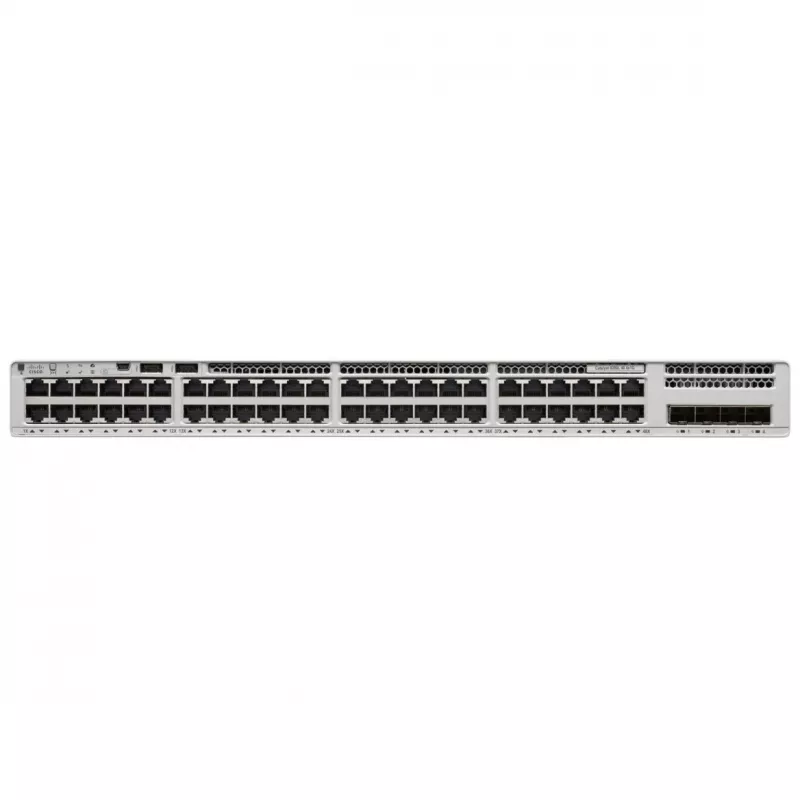

The Cisco Catalyst 9200L (C9200L-48T-4X-E) is a Layer 3 managed switch designed for enterprise and branch networks. It features 48 10G-capable RJ-45 ports, full-duplex operation and a switching capacity of 176 Gbit/s. Built on the Catalyst 9200 family architecture and Cisco IOS XE, the switch delivers security, resiliency and programmability suitable for intent-based networking deployments while offering investment protection through modular uplinks and support for advanced features.

Advantages

The Catalyst 9200L provides advanced hardware and software security to protect device integrity and data traffic, resilient design with power and fan redundancy options, and stacking bandwidth up to 160 Gbps for simplified scaling. With full PoE+ capability, Layer 3 feature support and open APIs on Cisco IOS XE, the switch supports automation and programmability for easier operations and long-term flexibility.

Suitable for

• Enterprise access layer deployments
• Branch-office networks requiring Layer 3 services
• High-density 10G access for servers or aggregation
• Environments needing PoE+ for powered devices

Key specifications

• Model: C9200L-48T-4X-E
• Switch type: Managed, Layer 3
• Ports: 48 × 10G Ethernet (100/1000/10000) RJ-45
• Switching capacity: 176 Gbit/s
• MAC address table: 16,000 entries
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ad, 802.3af, 802.3at, 802.3bz; IEEE 802.1Q, 802.1p, 802.1x, 802.1w, 802.1s, 802.1D
• Colour: Grey

How to use

Install the switch in a standard 19-inch rack following Cisco mounting guidelines and connect uplinks using the modular uplink ports. Configure basic network settings via the Cisco IOS XE CLI or management GUI, assign VLANs and Layer 3 interfaces as required, and enable stacking if you need to combine multiple units for higher bandwidth and simplified management. Enable PoE+ where powering endpoints is required and apply security policies, access control and monitoring through the device management interface.

Recommendations

Use the Catalyst 9200L in access or aggregation roles where high-density 10G connectivity and Layer 3 capabilities are needed. Ensure firmware is kept up to date, monitor PoE budget when many powered devices are connected, and consider stacking or redundant power/fan options to increase resiliency in critical deployments.
