Switch gestionado LevelOne Hilbert Switch industrial Gigabit PoE Smart Lite de 8 puertos

The LevelOne IGS-2108P Hilbert 8-Port Industrial Gigabit PoE Smart Lite switch is an industrial Layer 2 managed switch with eight Gigabit RJ45 ports, all supporting PoE+ (IEEE 802.3at/af). Designed for industrial deployments, it provides a 16 Gbit/s switching capacity, a MAC address table of 4000 entries and supports common networking standards such as IEEE 802.1D, 802.1Q and IEEE 802.3 variants. The switch accepts a DC input voltage of 44–57 V and is supplied in a compact, black housing suitable for DIN-rail mounting.

Advantages

The IGS-2108P combines PoE+ power delivery on all eight ports with Gigabit copper connectivity to simplify installation of powered devices such as IP cameras and wireless access points. Its managed Layer 2 feature set and support for VLANs and link management provide better control of network traffic, while a 16 Gbit/s switching capacity and a 4000-entry MAC table ensure sufficient performance for many industrial applications. Visible status LEDs and compatibility with LevelOne IP Locator software make discovery and basic monitoring straightforward.

Suitable for

• Industrial and factory network segments requiring DIN-rail mounting
• Powering and connecting IP cameras, wireless access points and VoIP phones
• Small-to-medium enterprise edge networks needing managed Layer 2 features

Key specifications

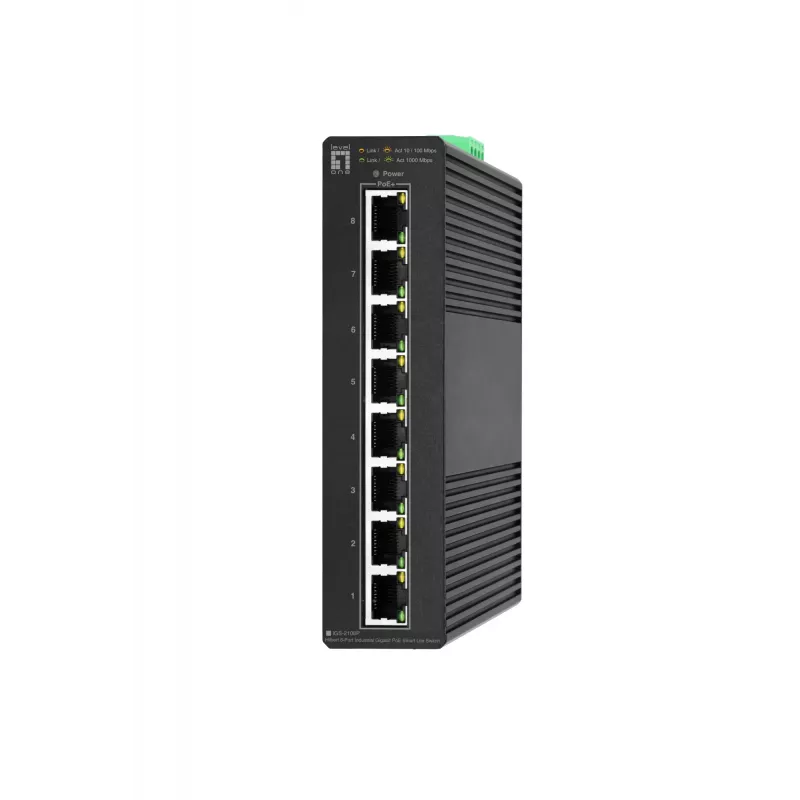

• Ports: 8 × Gigabit RJ45 (10/100/1000), all PoE+ (802.3at/af)
• Switching capacity: 16 Gbit/s
• MAC address table: 4000 entries
• Supported standards: IEEE 802.1D, 802.1Q, 802.1p, 802.1w, 802.3 family (including 802.3ab/802.3u/802.3x/802.3az)

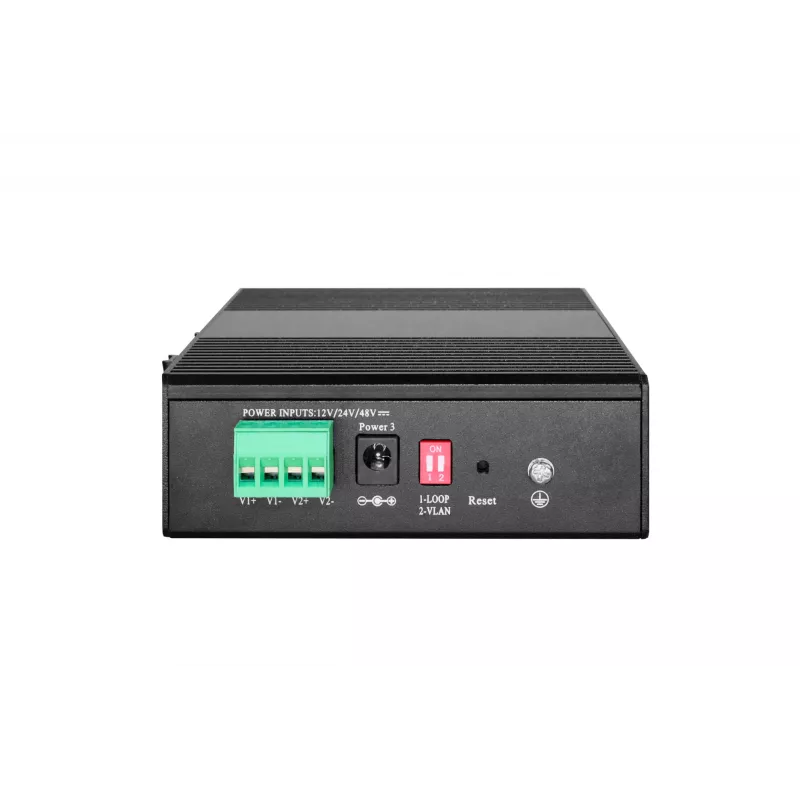

• DC input voltage: 44–57 V

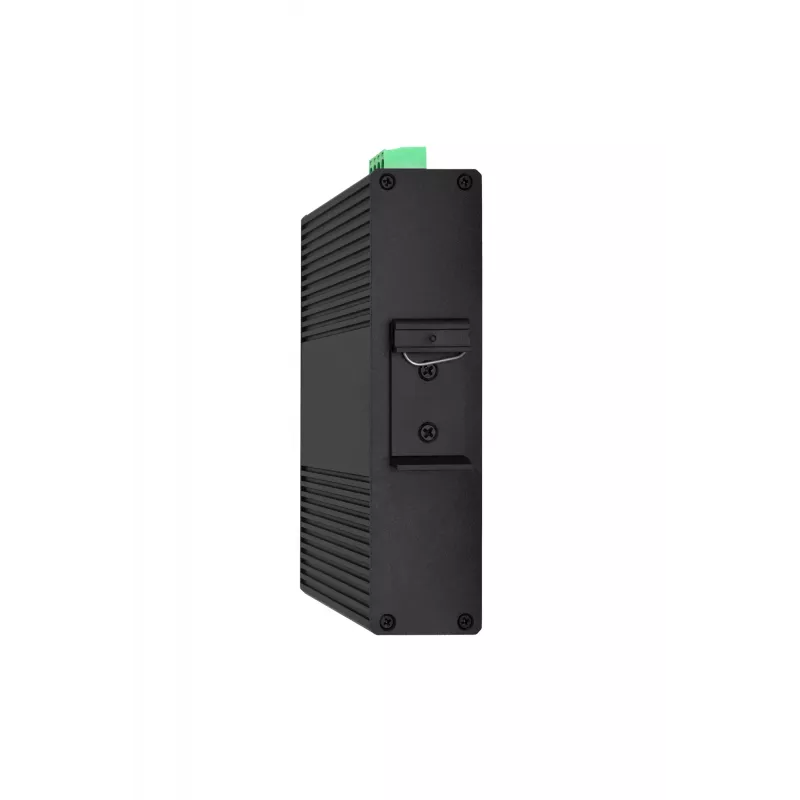

• Mounting: DIN-rail
• Color: Black
• Managed: Layer 2 managed switch

How to use

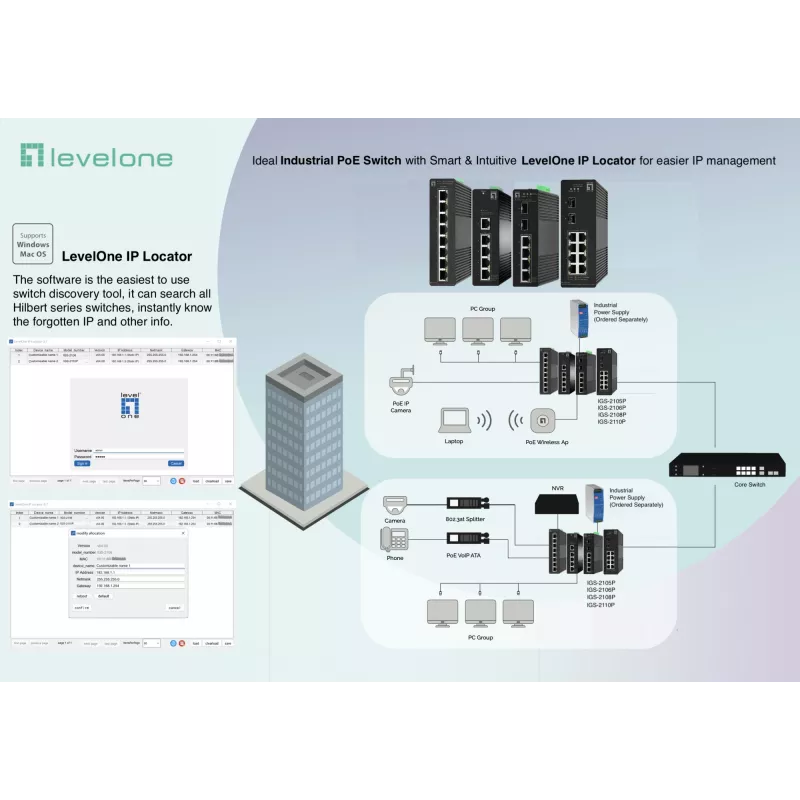

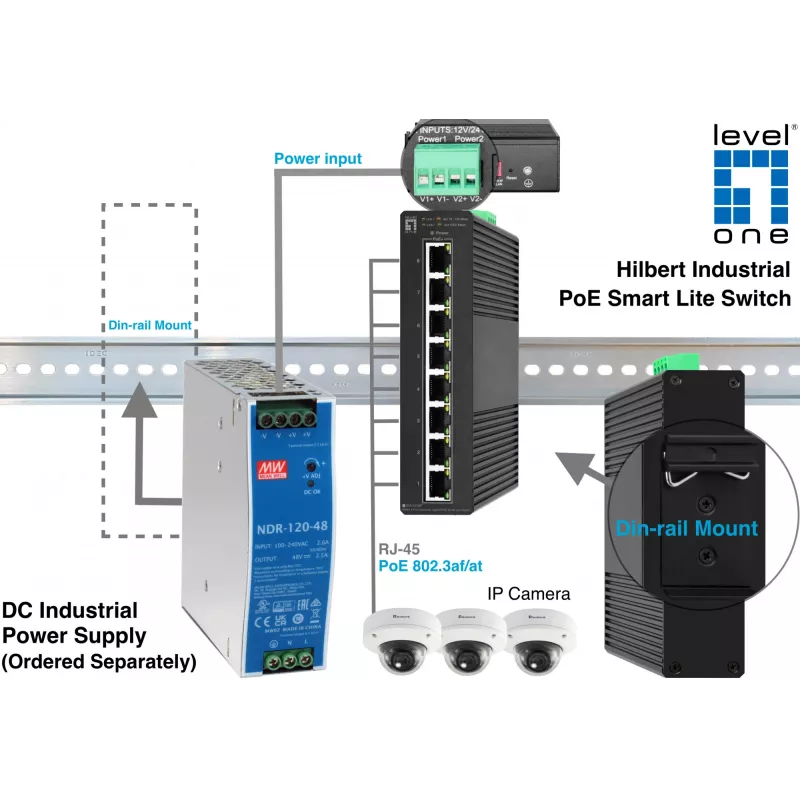

Mount the switch on a DIN-rail in a suitable industrial cabinet and connect a compatible DC power source within the 44–57 V range. Connect Ethernet devices to the RJ45 ports; PoE-capable ports will provide power automatically to IEEE 802.3af/at devices. Use the web management interface or supported management tools to configure VLANs, QoS and other Layer 2 settings. The LevelOne IP Locator utility can be used on Windows or Mac to locate the switch on the network and retrieve its IP address for initial configuration.

Recommendations

For reliable operation, ensure the total PoE power budget is sufficient for connected devices and operate the switch within the recommended temperature and voltage ranges. Use appropriate surge protection and follow industrial cabling best practices when installing in mission-critical environments.
