Switch gestionado PLANET IGS-4215-24T4X 24 puertos Gigabit Ethernet

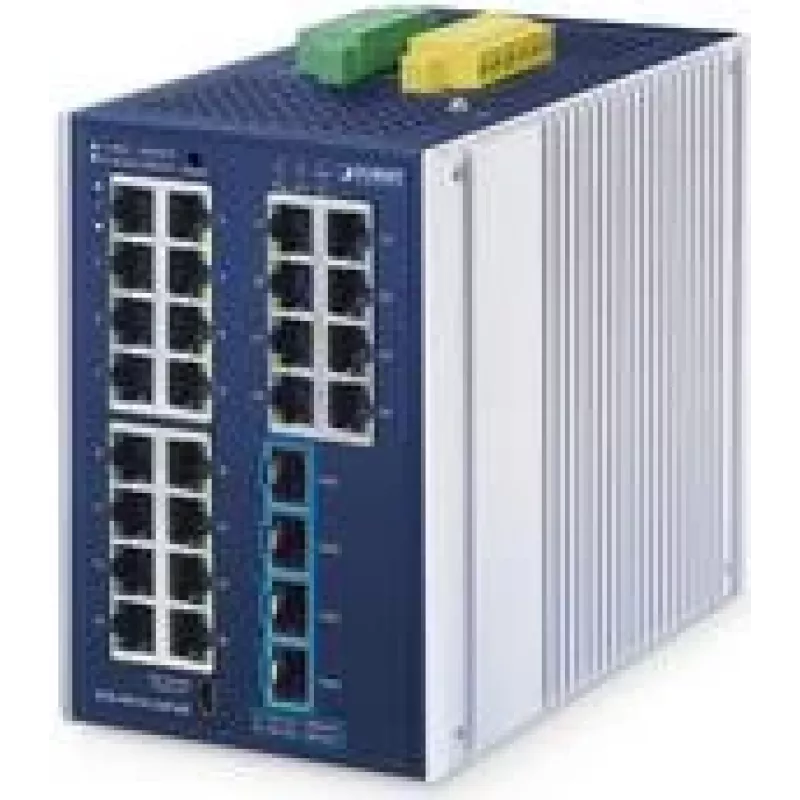

The PLANET IGS-4215-24T4X is a managed industrial DIN-rail Ethernet switch offering 24 Gigabit RJ-45 ports and 4 10G SFP+ slots. Designed for harsh environments, it supports IPv4/IPv6 dual-stack, Layer 2/Layer 4 switching with Layer 3 static routing, and operates over a wide temperature range (-40 to 75 °C). The unit provides a compact IP30 aluminum enclosure, USB Type-C console access, 128 Gbit/s switching capacity and DC power input suitable for industrial installations.

Advantages

The switch combines cost-efficiency with advanced management and security features, including SSHv2, TLSv1.2, SNMPv3, DHCP Snooping, IP Source Guard and Dynamic ARP Inspection. It supports redundant ring protection (ITU-T G.8032 ERPS), MSTP and fast recovery mechanisms for critical applications. Additional benefits include robust ESD and surge protection, fault alarm with digital input/output for external alarms, SFP diagnostic monitoring and compatibility with remote management platforms (UNI-NMS and CloudViewerPro).

Suitable for

• Industrial automation networks and factory floors
• Traffic control cabinets and outdoor cabinets without air conditioning
• Enterprise edge switching requiring VLAN routing (IPv4/IPv6)
• Video surveillance, VoIP and business-class data networks
• Long-distance fiber extension using 10G SFP+ transceivers

Key specifications

• Ports: 24 × 10/100/1000BASE-T, 4 × 10G SFP+
• Switching capacity: 128 Gbit/s
• Protocols/standards: IPv4/IPv6, L2/L4 features, static L3 routing, IEEE 802.1Q, 802.1p, 802.3ad, MSTP (802.1s), ERPS (G.8032)
• Cybersecurity: SSHv2, TLSv1.2, SNMPv3, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, DAI
• Environmental: operating temperature -40 to 75 °C, IP30 aluminum casing
• Protection: Ethernet ESD ±6 kV contact / ±8 kV air, surge immunity ±4 kV
• Console: USB Type-C; Management: Web, CLI (Telnet/SSH), SNMP
• Power input: DC 9–48 V

How to use

Mount the switch on a DIN rail or wall as appropriate for the installation site and connect DC power within the specified 9–48 V range. Connect copper devices to the 24 Gigabit RJ-45 ports and fiber links to the SFP+ slots using compatible SFP/SFP+ transceivers (supports 10G, 2.5G and 1G speeds depending on module). Use the USB Type-C console or Web/CLI/SNMP interfaces to configure VLANs, QoS, ACLs, redundancy (ERPS/MSTP) and security functions. Configure the Digital Input/Output for external alarm signaling and enable SFP-DDM monitoring for real-time transceiver diagnostics.

Recommendations

For reliable operation in industrial environments, use shielded cabling where appropriate, verify compatible SFP/SFP+ transceiver types for required distances and speeds, enable ERPS or MSTP for network resilience, and configure DHCP Snooping/IP Source Guard/DAI alongside ACLs to reduce spoofing risks. Regularly monitor SFP-DDM readings and integrate the device with UNI-NMS or CloudViewerPro for centralized remote management and alerting.
