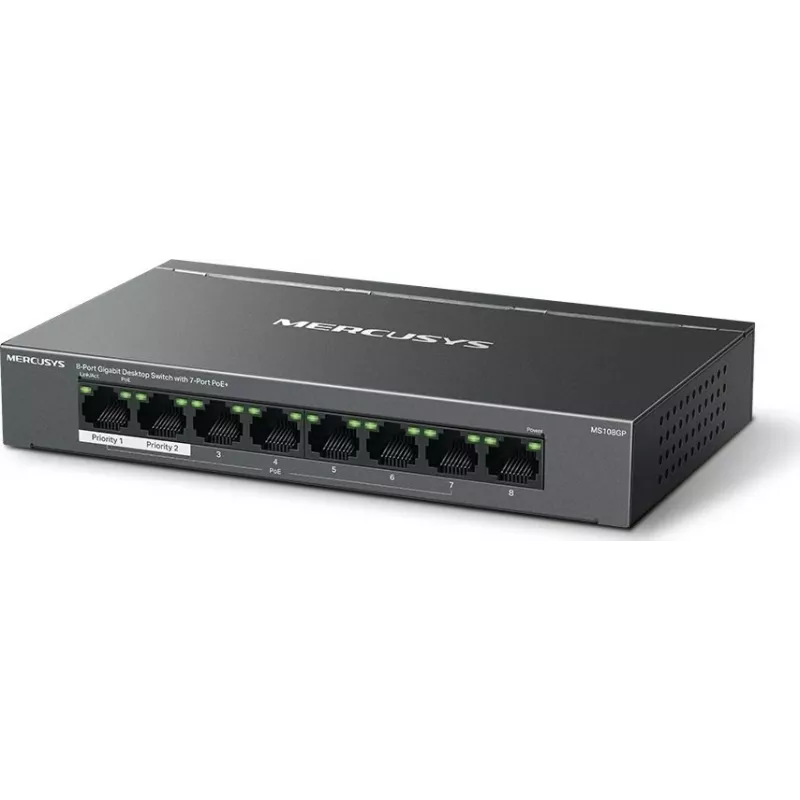

Switch Gigabit Desktop PoE+ Mercusys MS108GP de 8 puertos, 123W de presupuesto, Plug & Play

The Mercusys MS108GP stands out by combining eight Gigabit ports with full PoE+ capability in a compact desktop form factor, delivering up to 123W of power budget without the need for complex configuration. This switch is ideal for small offices and home networks that demand both high-speed data and power delivery to devices like IP cameras, VoIP phones, and wireless access points, all from a single, reliable unit.

Highlights

• 8× 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX
• All 8 ports support IEEE 802.3af/at PoE+ with up to 30W per port
• Total PoE power budget of 123W to power multiple devices simultaneously
• 16 Gbps switching capacity and 11.9 Mpps forwarding rate for smooth data flow
• Fanless design ensures silent operation, perfect for noise-sensitive environments
• Plug-and-play: no software installation or configuration needed

In daily use

Deploy the MS108GP in any small business or home setup where you need to connect and power PoE-enabled devices without running separate power cables. Its store-and-forward architecture and support for jumbo frames up to 15KB ensure efficient handling of large data transfers. The compact metal housing can be placed on a desktop or mounted on a wall, and the fanless cooling means zero noise, making it suitable for open offices or living spaces. LED indicators on the front panel provide at-a-glance status for power, link/activity, and PoE operation.

Full specifications

• Ports: 8× Gigabit RJ45 (10/100/1000 Mbps)
• PoE: IEEE 802.3af/at on all ports, max 30W per port, total budget 123W
• Switching capacity: 16 Gbps
• Packet forwarding rate: 11.9 Mpps
• MAC address table: 4K entries
• Jumbo frame support: 15 KB
• Transmission method: Store-and-forward
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
• Power supply: External 53.5 VDC / 2.43 A adapter
• Mounting: Desktop or wall-mountable
• Dimensions: 209 × 126 × 26 mm (without external power supply)
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10% to 90% RH non-condensing
• Storage humidity: 5% to 90% RH non-condensing

Final note

The Mercusys MS108GP is a cost-effective solution for expanding your network with PoE devices, offering reliable performance and silent operation in a sturdy, space-saving design.
