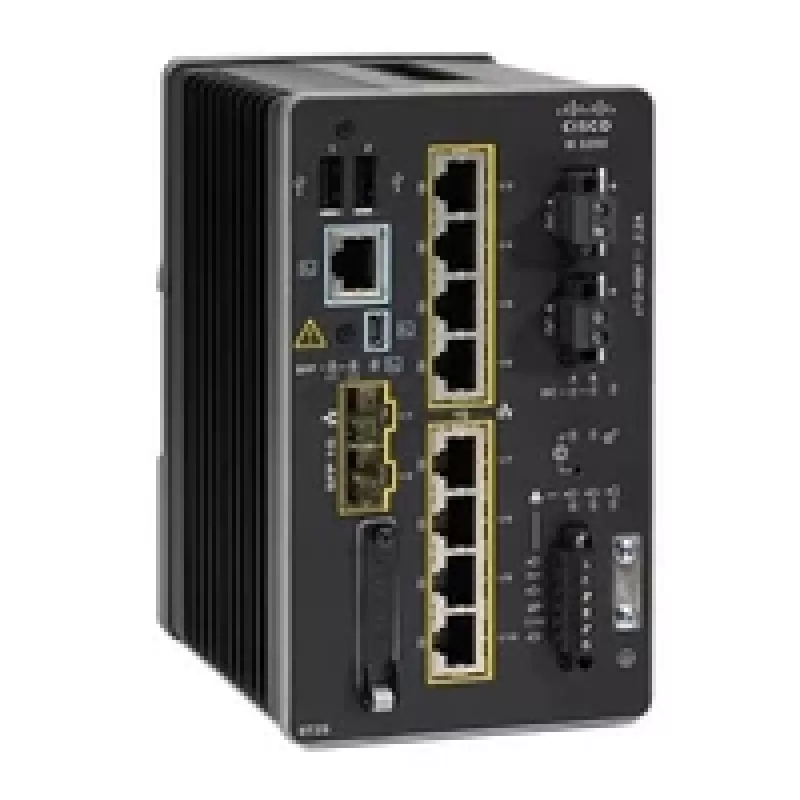

Switch Gigabit Ethernet gestionado L2/L3 Cisco Catalyst IE-3200-8T2S-E

The Cisco Catalyst IE-3200-8T2S-E is a managed L2/L3 Gigabit Ethernet switch in a compact, ruggedized form factor designed for industrial and extended enterprise environments. It provides eight Gigabit RJ-45 ports, one USB 2.0 port, and an RS-232 console port, and runs Cisco IOS XE with features such as secure boot, image signing, and API-driven configuration. The platform supports a PoE/PoE+ power budget up to 240 W shared across eight ports and is built to operate in harsh conditions across manufacturing, energy, transportation, mining, smart cities, warehouses, and outdoor deployments.

Advantages

The IE-3200-8T2S-E combines hardened industrial design with full Cisco IOS XE capabilities, offering built-in security and trust modules, open APIs for automation, and compatibility with Cisco management tools including Cisco DNA Center and Industrial Network Director. Its compact size and PoE/PoE+ power support simplify deployment of IP cameras, phones, access points, and sensors while meeting industrial networking standards and a wide DC input range for flexible installation.

Suitable for

• Industrial automation and manufacturing networks
• Energy, oil and gas, and mining communication infrastructure
• Transportation systems and smart-city installations
• Extended enterprise sites: warehouses, distribution centers, and outdoor areas
• Deployments requiring PoE/PoE+ for IP cameras, wireless APs, phones, and sensors

Key specifications

• Ports: 8 × Gigabit RJ-45 (10/100/1000), 1 × USB 2.0, 1 × RS-232 console
• Switch type: Managed L2/L3
• MAC address table: 8000 entries
• Power: PoE/PoE+ support, up to 240 W shared across 8 ports
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3ad, 802.3ah, IEEE 802.1Q, 802.1x, 802.1w, 802.1s, 802.1p, 802.1ab, IEEE 1588
• DC input voltage range: 9.6–60 V
• Colour: Black
• Weight: 1.7237 kg

How to use

Install the IE-3200-8T2S-E on a DIN rail or other supported mounting surface in a location that meets the device's environmental and power requirements. Connect network devices to the Gigabit RJ-45 ports and attach PoE-powered devices as needed, keeping the total PoE budget in mind. Use the RS-232 console or WebUI for initial setup and configuration, or automate deployment with Cisco IOS XE open APIs and management platforms such as Cisco DNA Center or Industrial Network Director for ongoing monitoring and policy management.

Recommendations

For reliable operation in industrial settings, provide appropriate surge protection and ensure the DC power supply is within the 9.6–60 V range. When deploying PoE devices, plan power allocation to avoid exceeding the 240 W shared budget. Regularly update Cisco IOS XE images using signed firmware and follow your organisation’s security policies to maintain device integrity.
