Switch HDMI DeLOCK 3 x HDMI entrada a 1 x HDMI salida 4K 60 Hz

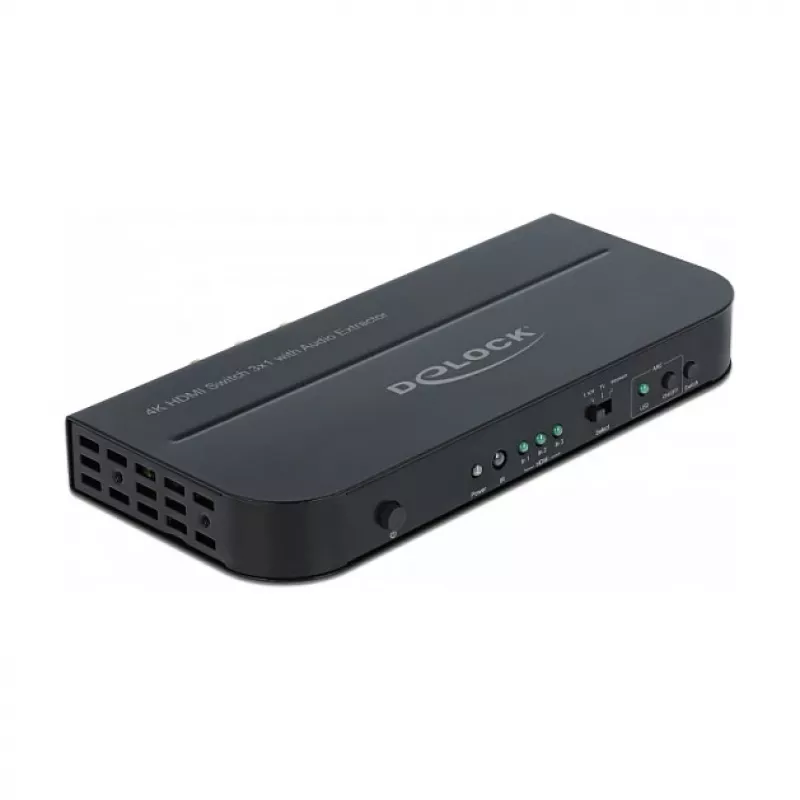

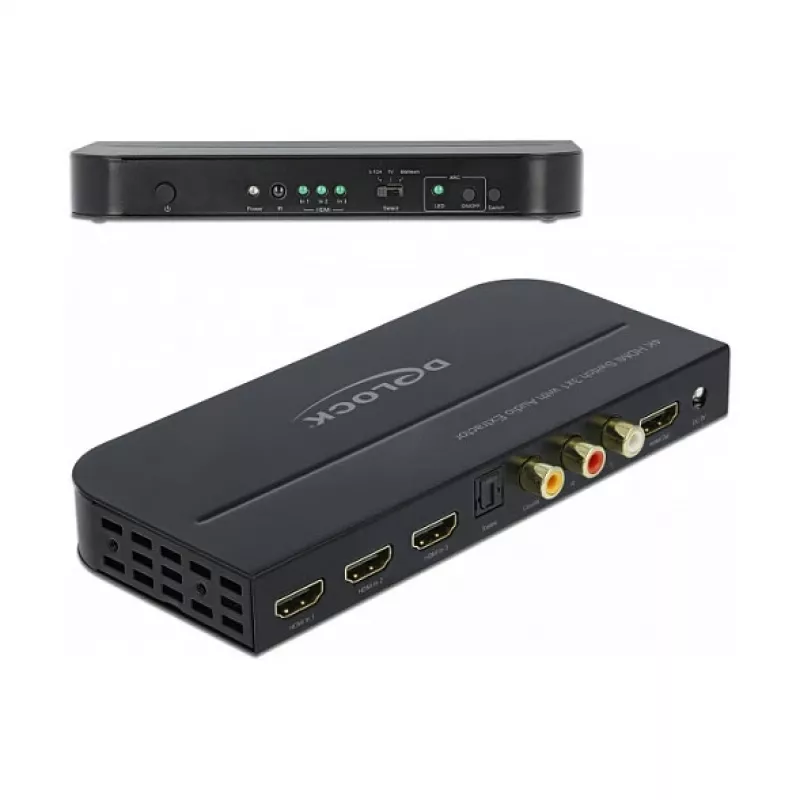

The DeLOCK HDMI Switch 3 x HDMI in to 1 x HDMI out 4K 60 Hz lets you connect up to three HDMI sources to a single HDMI display, TV or projector. The compact metal-cased switch supports 4K at 60 Hz and includes an audio extractor and ARC functionality. Switching between inputs is done via the button on the unit or the included remote control.

Advantages

The switch supports up to three HDMI input devices and one HDMI output at 4K 60 Hz, is housed in a durable metal case and is supplied with a USB cable. It features an audio extractor to output sound separately via S/PDIF (digital) or analogue stereo, and a push-button or remote-controlled Audio Return Channel (ARC) to send TV audio back to connected receivers.

Suitable for

• Connecting multiple HDMI sources (game console, Blu-ray player, set-top box) to a single TV or monitor
• Using a projector with several input devices in meeting rooms or classrooms
• Extracting audio to an external sound system or headphones while keeping video on the display

Key specifications

• Brand: DELOCK
• Model / MPN: 66498
• EAN: 4043619664986

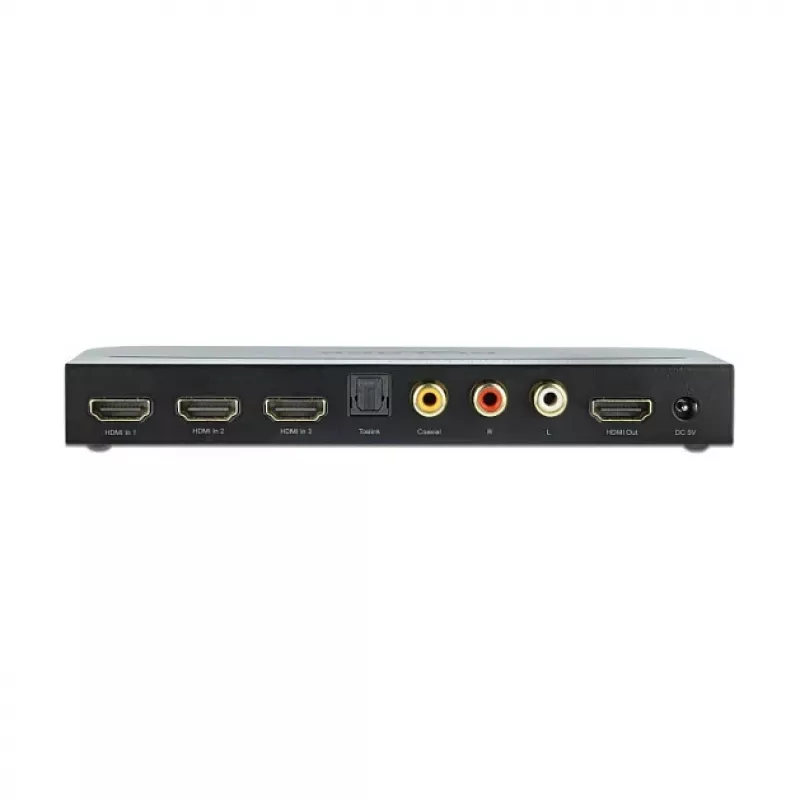

• Inputs / Outputs: 3 x HDMI in, 1 x HDMI out
• Resolution support: up to 4K (3840 x 2160) at 60 Hz
• Audio output: S/PDIF (digital) and analogue stereo (audio extractor)
• Audio Return Channel: ARC (button or remote activated)

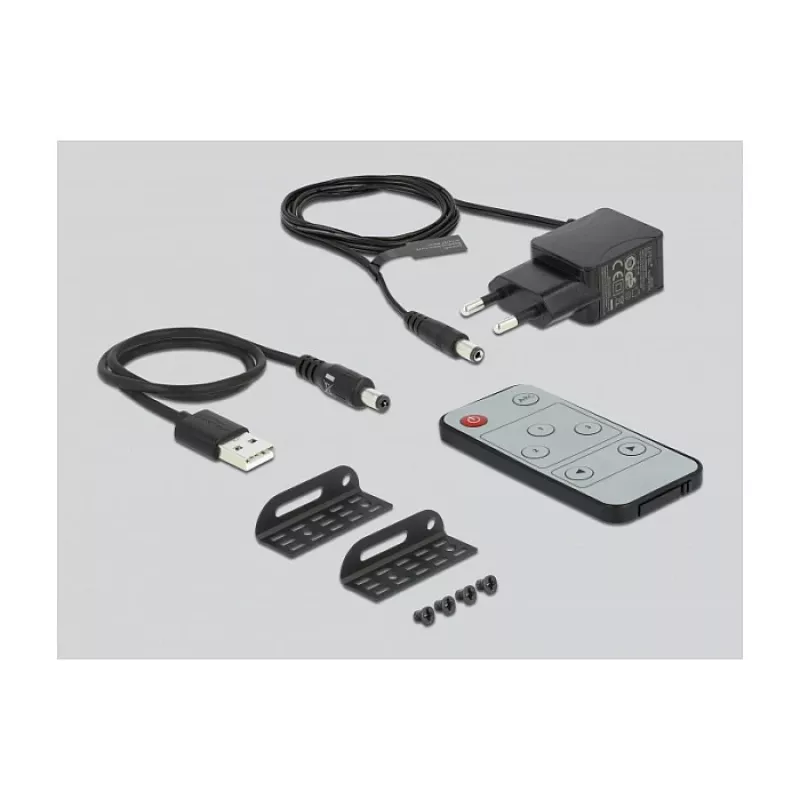

• Power: wide input voltage (100–240 V) — USB-powered cable included
• Colour: Black
• Dimensions: 75 x 168 x 21 mm

How to use

Connect up to three HDMI source devices to the HDMI input ports and connect the HDMI output to your TV, monitor or projector. Use the unit button or the remote control to switch between the connected HDMI sources. To extract audio, enable the audio extractor and route sound via the S/PDIF or analogue stereo outputs to your audio device. To use ARC, enable the ARC function on the switch and, if required, on the TV to route the TV audio back through the S/PDIF outputs.

Recommendations

For best performance, use high-quality HDMI cables rated for 4K@60 Hz. Ensure connected devices and the display support the target resolution and enable ARC on the TV if you intend to use the Audio Return Channel.
