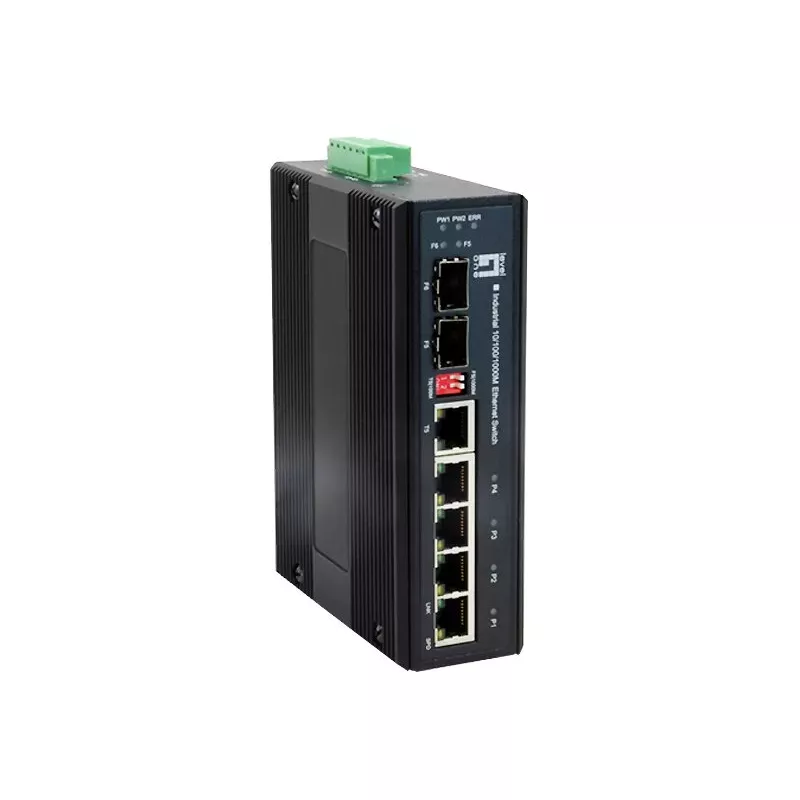

Switch industrial LevelOne 6 puertos Gigabit, 1 x SFP, 1 x combo SFP/RJ45, -40 °C a 75 °C, carril DIN

The LevelOne IES-0600 / Industrial Switch LevelOne 6-Port Gigabit (MPN 55506207) is a compact DIN-rail mountable Ethernet switch built for industrial and harsh environments. It provides four 10/100/1000Base-T RJ-45 ports and two Gigabit fiber options (one Gigabit combo and one SFP slot) to support flexible uplink or fiber connections. The switch operates across a wide temperature range (-40°C to 75°C), has a metal IP30-rated housing, and complies with IEEE Ethernet standards for reliable network performance.

Advantages

This industrial switch combines gigabit copper ports with SFP-based fiber flexibility to accommodate different network topologies and distances. Auto-Negotiation and Auto-MDI/MDIX simplify installation by removing the need for crossover cables or manual port configuration. The metal enclosure, DIN-rail mounting and wide operating temperature range make the unit suitable for installation in cabinets and industrial racks where environmental resilience and clear LED port status indication are required.

Suitable for

• Factory automation networks
• Transportation and infrastructure communications
• Remote cabinet and outdoor enclosures (when properly protected)
• Fiber uplinks between buildings or network segments

Key specifications

• Ports: 4 × 10/100/1000Base-T RJ-45; 1 Gigabit Combo + 1 Gigabit SFP (100/1G)
• Switching capacity: 12 Gbit/s
• MAC address table: 1024 entries
• Operating temperature: -40°C to 75°C
• Networking standards: IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3z
• Housing: Metal, IP30; DIN-rail mountable
• Product colour: Black; Weight: 0.72 kg

How to use

Mount the switch on a DIN-rail inside a suitable cabinet or enclosure. Connect Ethernet devices to the RJ-45 ports and install an appropriate SFP transceiver in the SFP slot or use the Gigabit combo uplink as needed. Power the unit according to the manufacturer’s power input specifications and verify link/activity LEDs to confirm port connections. The switch will automatically negotiate speed and duplex settings and handle MAC learning and forwarding without additional configuration.

Recommendations

Install the switch in a ventilated, dry cabinet; use surge protection on power and uplink lines where required. Choose SFP transceivers that match the required fiber type and distance and verify environmental requirements (IP protection, temperature) for the installation site.
