Switch KVM club 3d Dual USB-C a HDMI, 2 puertos, 4K UHD 3840x2160, consola USB-C, 65W PD, negro

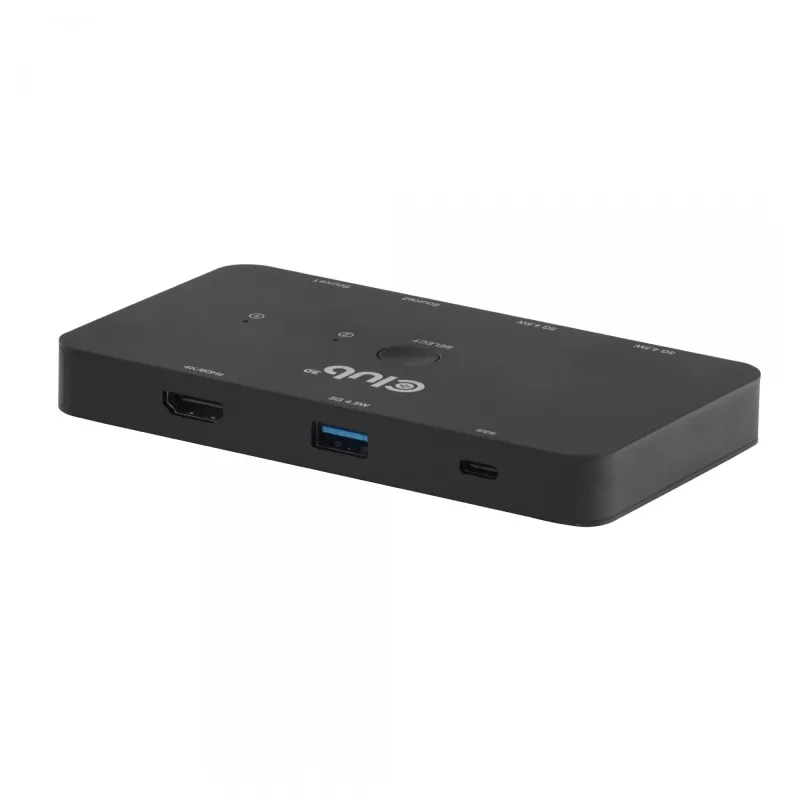

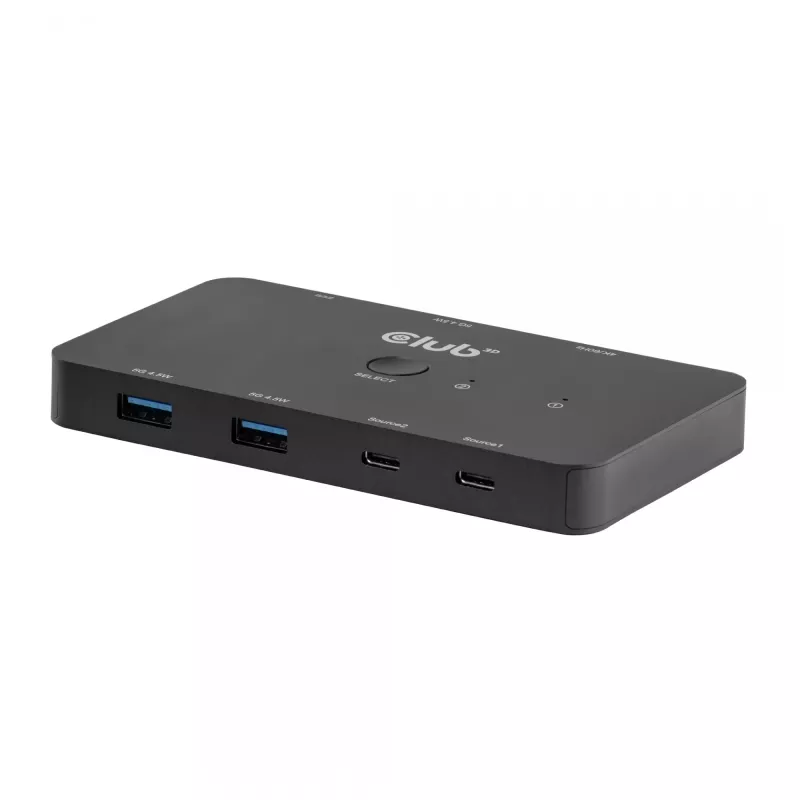

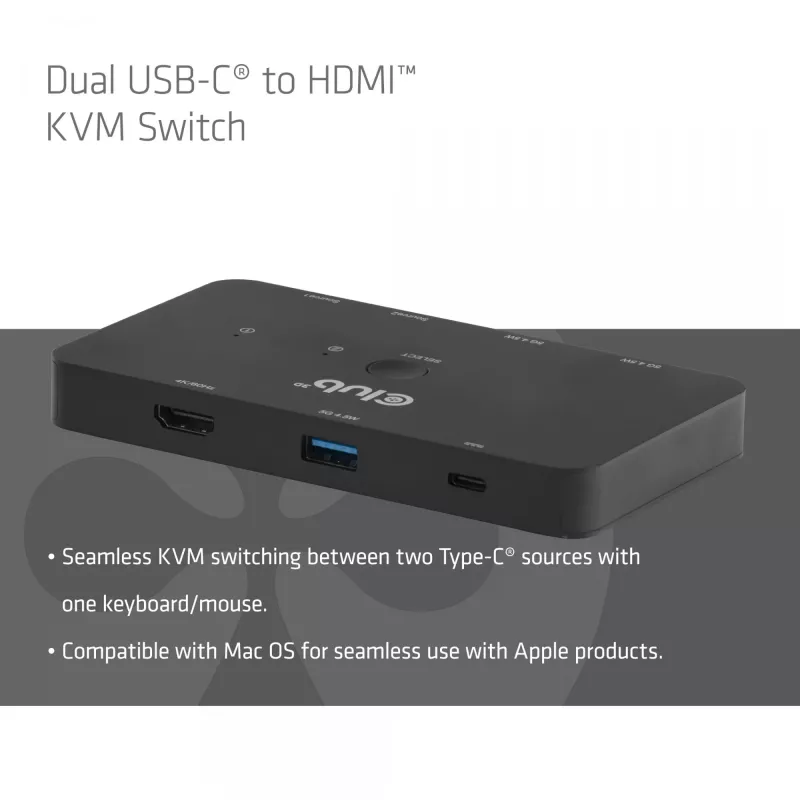

The CLUB3D Dual USB-C® to HDMI™ KVM Switch allows control of two USB-C sources from a single keyboard and mouse while outputting to a 4K/60Hz HDMI display. Designed for compatibility with Mac OS and other USB-C devices, the compact black switch supports dual-device charging and flexible power options for laptop and tablet workflows.

Advantages

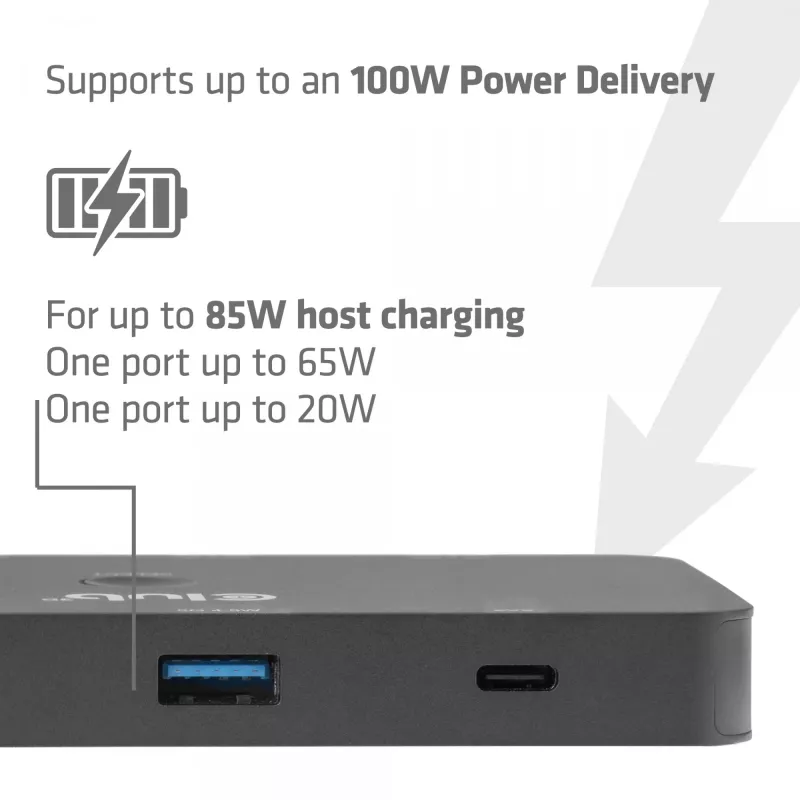

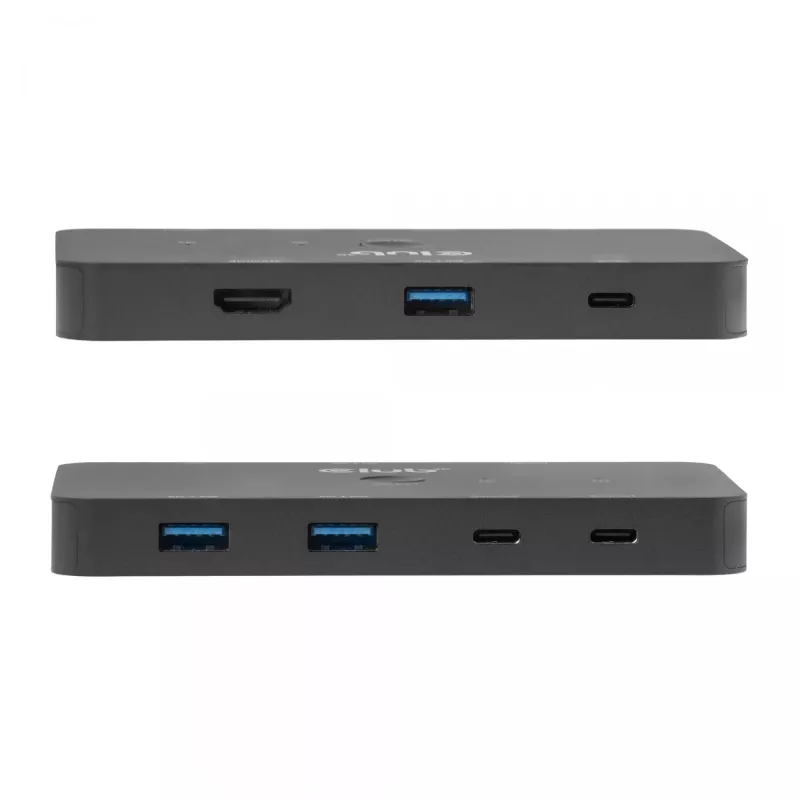

This KVM switch provides seamless switching between two Type-C sources with a dedicated switch button and LED indicator. It supports 4K@60Hz HDMI output, offers USB Power Delivery up to 100W (distributed as up to 65W for one device and 20W for the other when both inputs are used), and includes three 5Gbps USB-A ports for peripherals and charging. The unit can operate without an external PD adapter by drawing power from connected sources, or use an optional 100W PD adapter to increase host charging capability.

Suitable for

• Office setups where one keyboard and mouse must control two USB-C computers
• Mac and iPad users needing high-resolution HDMI output from USB-C
• Hybrid workstations with two laptops or a laptop and tablet sharing a single monitor
• Environments requiring simultaneous charging of two USB-C devices

Key specifications

• Product name: CLUB3D Dual USB-C® to HDMI™ KVM Switch (CSV-2512)
• Video port type: HDMI; Maximum resolution: 4K Ultra HD (3840 x 2160) at 60Hz
• Controlled computers: 2 via USB-C inputs
• USB Power Delivery: up to 100W total; when two inputs connected: Source 1 up to 65W, Source 2 up to 20W

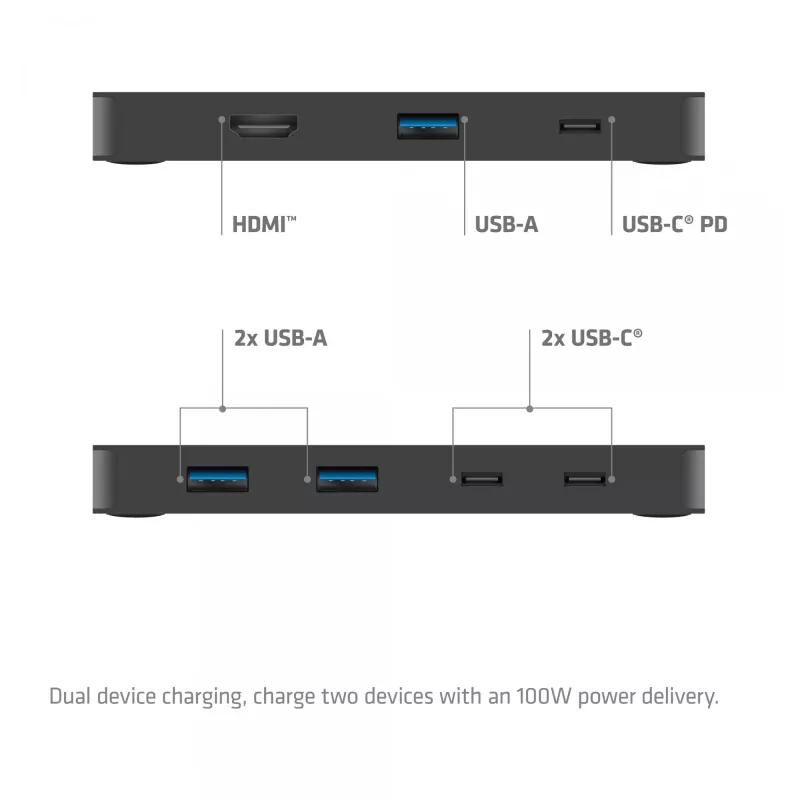

• USB ports: three USB-A 5Gbps ports with shared 12W charging (each up to 4.5W)

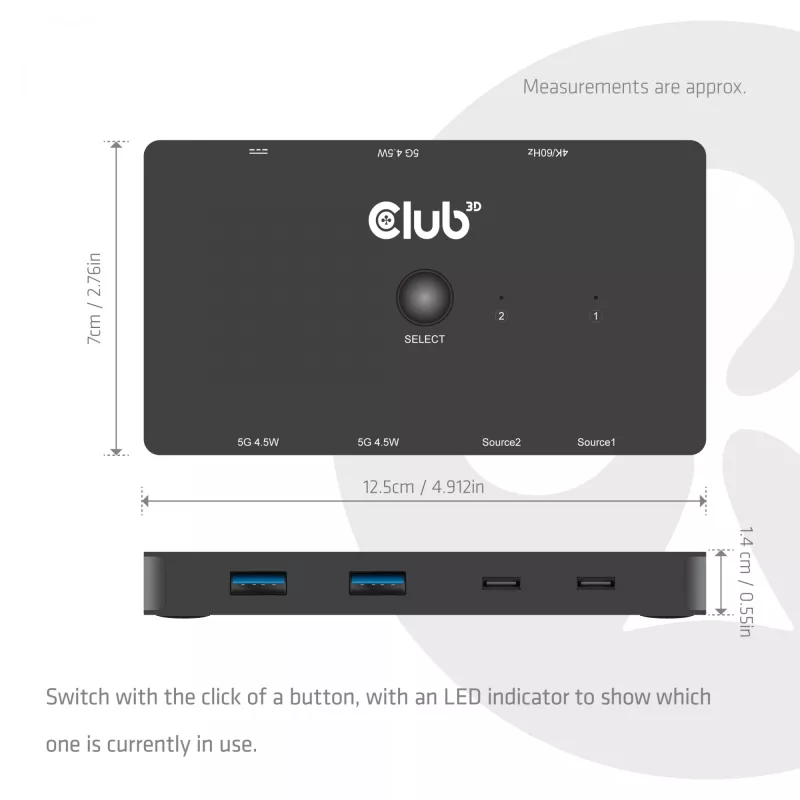

• Dimensions: 125 mm x 70 mm x 14 mm; Weight: 0.136 kg
• Colour: Black

How to use

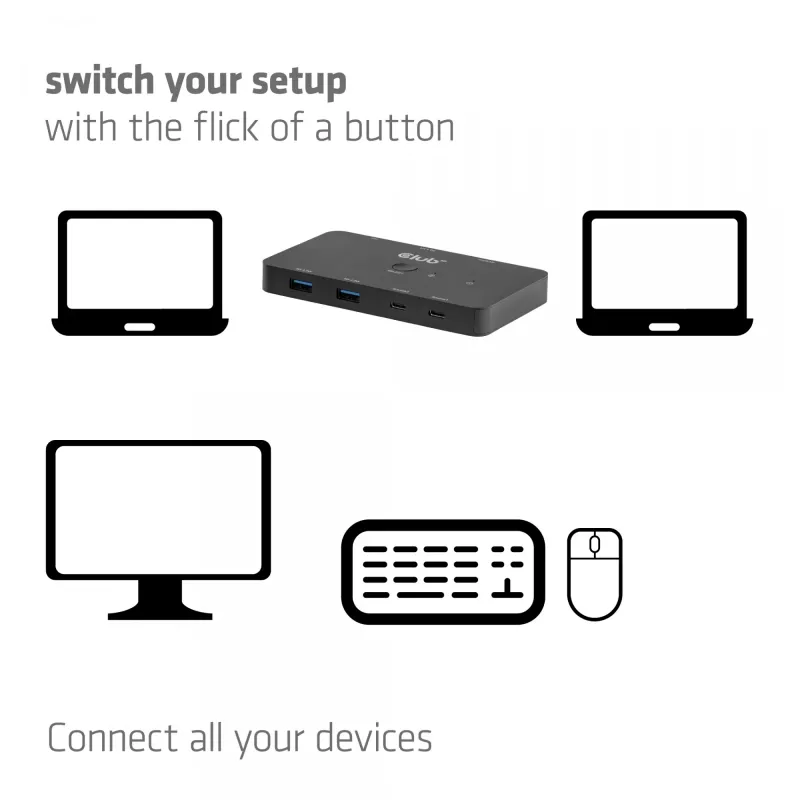

Connect each computer or device to the switch using the USB-C input ports, and connect the HDMI output to your 4K/60Hz display. Use the front button to switch control between the two sources; the LED indicator shows the active source. Attach keyboard and mouse to the USB-A console ports or the dedicated USB-C console if available. If you need increased host charging, connect an optional 100W PD adapter to the switch; otherwise the switch can draw power from the connected sources for basic operation and charging.

Recommendations

For best results with high-resolution video and stable charging, use certified USB-C cables rated for 5A/20V for PD and HDMI cables rated for 4K@60Hz. When both inputs are connected and simultaneous charging is required, note the 65W / 20W distribution and plan device charging accordingly.
