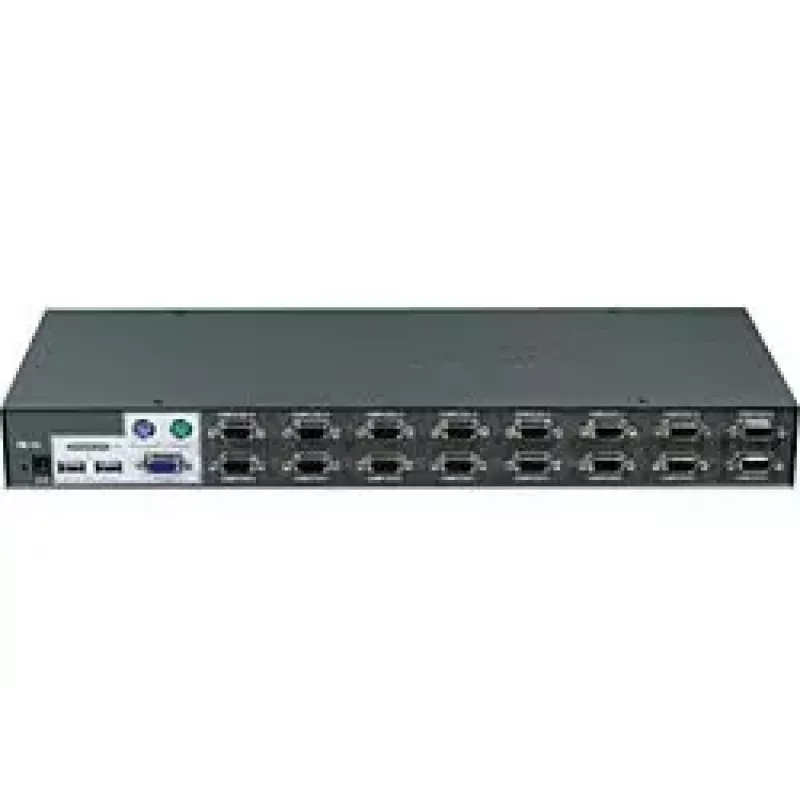

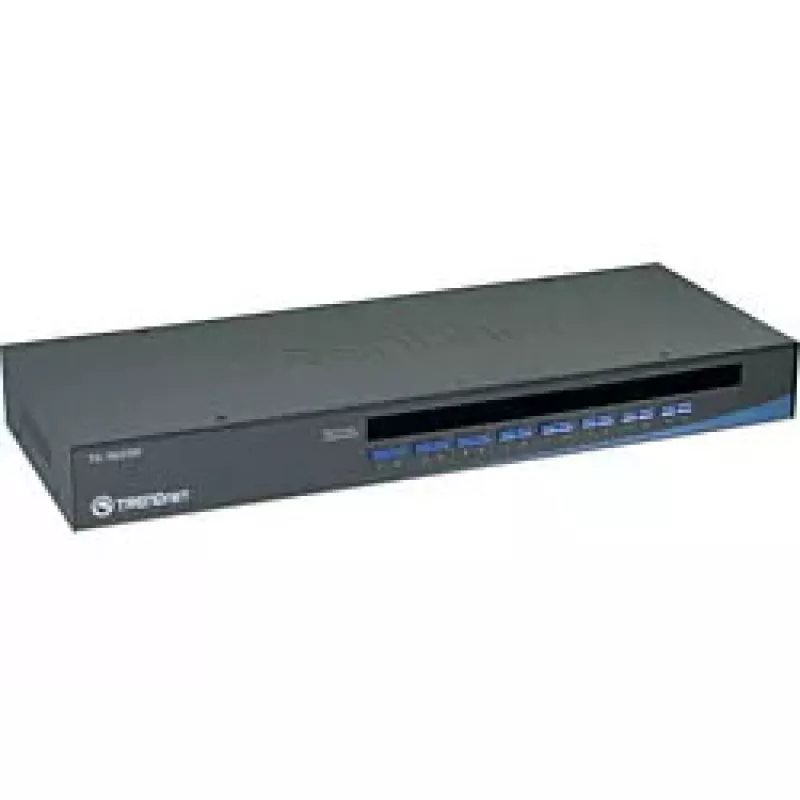

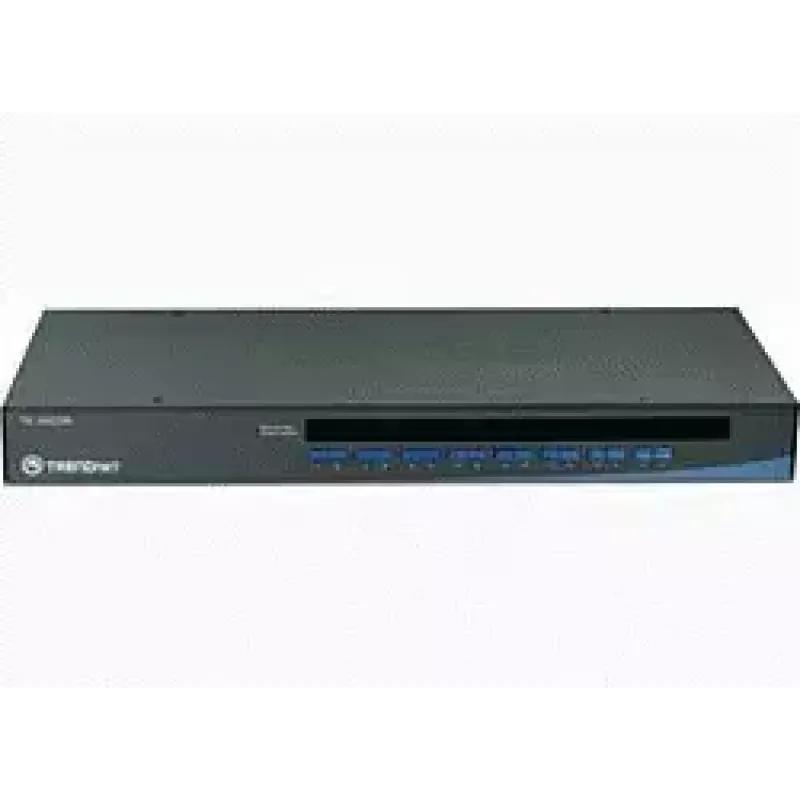

Switch KVM Trendnet TK-1603R 16 puertos USB/PS/2 montaje en rack

The Trendnet TK-1603R 16-Port USB/PS/2 Rack Mount KVM Switch allows management of up to 16 computers using a single keyboard, monitor and mouse. This 1U rack-mount unit supports USB and PS/2 on the console side and USB on the PC side, provides VGA video up to 2048 x 1536 resolution, and is compatible with Windows, Linux and Mac platforms. The wired connections ensure stable performance and the device supports hot-plugging and firmware upgrades via the PC port.

Advantages

The KVM switch consolidates control of multiple systems into one console, reducing the need for extra peripherals and saving rack space with a standard 19" 1U design. It offers flexible switching via hot-key sequences or front-panel push buttons, on-screen auto-scan with adjustable intervals from 10 to 99 seconds, LED status indicators, audible confirmation on port changes (optional), and automatic keyboard status restoration when switching between computers.

Suitable for

• Server rooms and data centers managing multiple rack-mounted servers
• IT maintenance stations and network operation centers
• Lab and testing environments with mixed Windows, Linux and Mac systems
• Environments where space-saving 1U rack solutions are required

Key specifications

• Model: Trendnet TK-1603R
• Ports: 16 controlled computers
• Console interfaces: USB, PS/2 (keyboard and mouse)
• PC-side interface: USB
• Video type: VGA, up to 2048 x 1536 resolution
• Scan interval: adjustable, 10–99 seconds
• Form factor: 19" 1U rack mount
• Weight: 2.04 kg
• Colour: Black
• Compatibility: Windows 98SE/ME/2000/XP/2003 Server, Linux, Mac OS

How to use

Install the TK-1603R into a standard 19" rack using the included mounting brackets. Connect each target computer to the KVM using the appropriate KVM cable to the USB port and VGA video connector. Attach your console keyboard, mouse and monitor to the front or rear console ports depending on model layout. Power the unit, then switch between connected computers using the configurable hot-key sequence or the front-panel push button. Hot-plugging of PCs is supported so systems can be connected or disconnected without powering down the KVM.

Recommendations

For best video performance, use good-quality VGA cables and verify each target system’s video output settings. If you manage mixed OS platforms, enable firmware updates as needed and test hot-key switching after installation to ensure keyboard mappings are correct.
