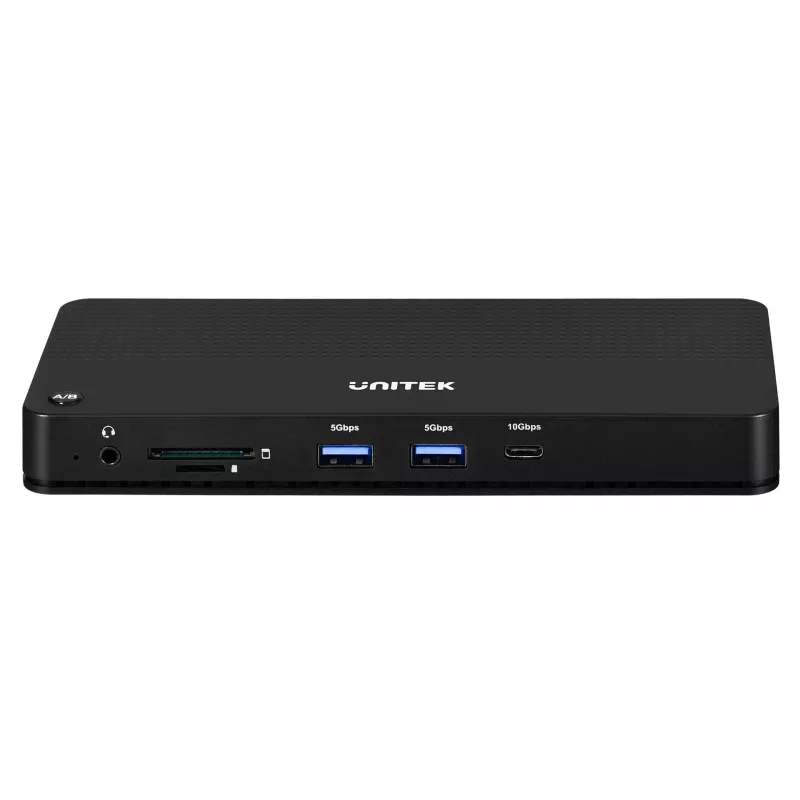

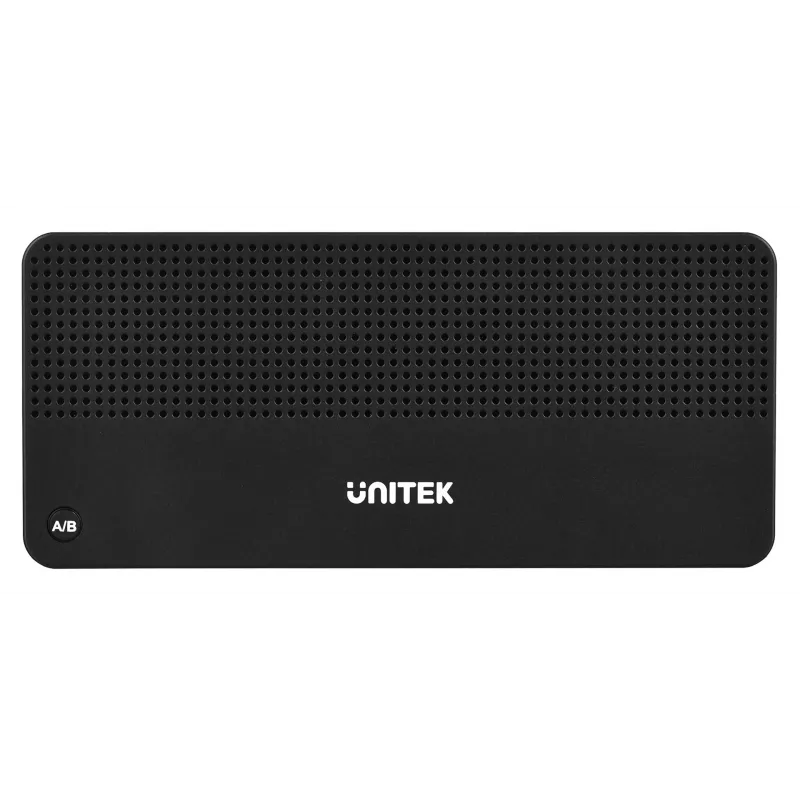

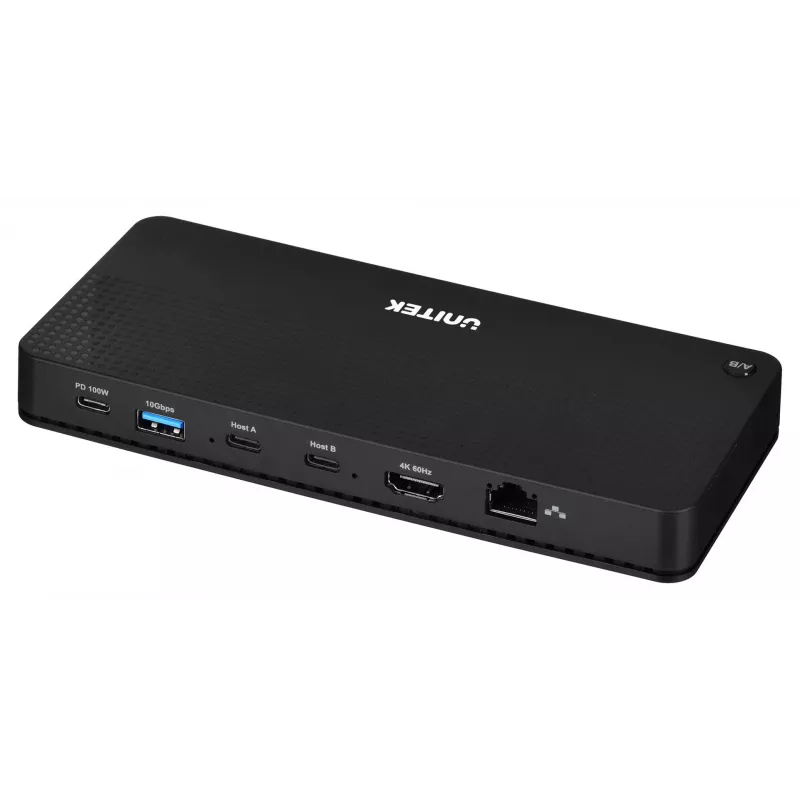

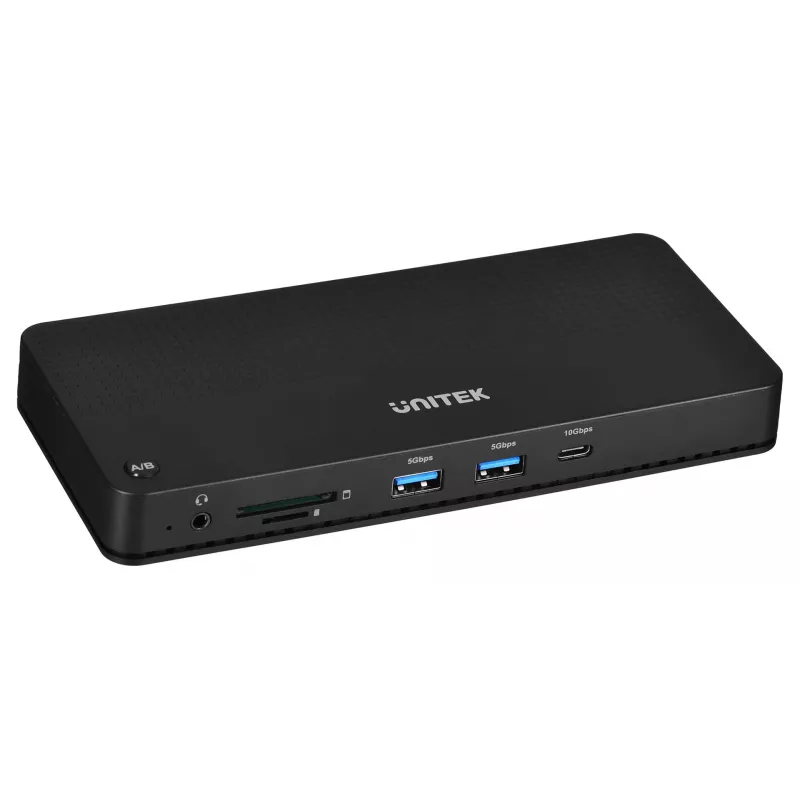

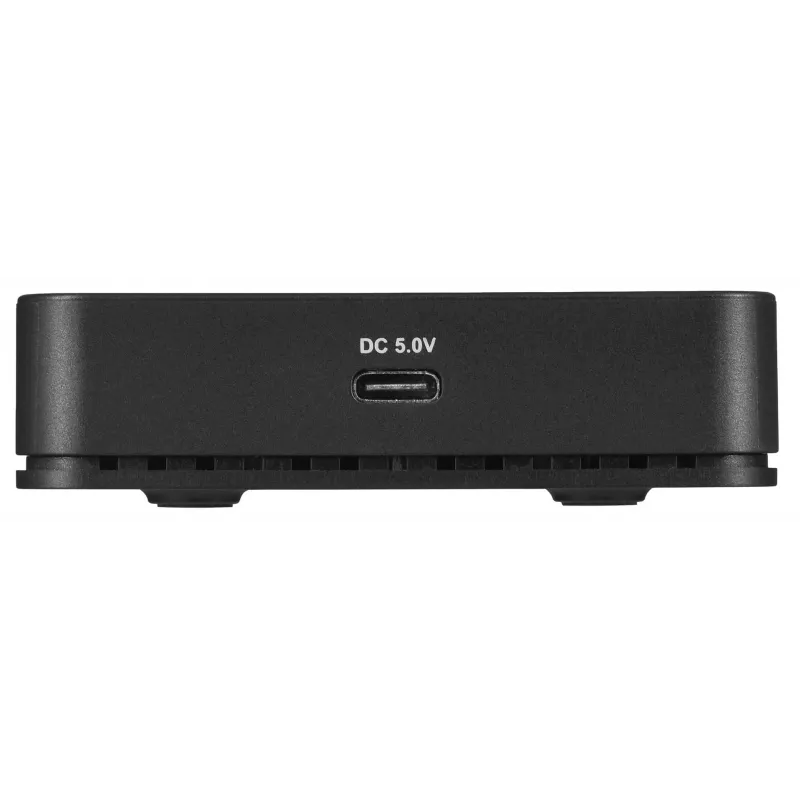

Switch KVM UNITEK D1077A USB HDMI 4K Ultra HD

The UNITEK D1077A USB Type-C KVM switch lets you control two computers with a single keyboard, mouse and monitor. It supports HDMI video up to 4K UHD @ 60Hz, multiple USB data ports and Power Delivery charging up to 100 W. The unit also includes RJ-45 Gigabit Ethernet, 3.5 mm audio out and microphone in, and built-in SD and TF card slots that can read two cards simultaneously.

Advantages

The KVM switch consolidates peripherals so you can switch between two computers using one-key push control. It provides high-resolution HDMI output (3840 x 2160 @ 60Hz), USB data transfer ports (including both 5 Gbps and 10 Gbps ports), Gigabit Ethernet pass-through and integrated card readers for convenient file access. The device supports Power Delivery up to 100 W to charge connected laptops or devices while switching.

Suitable for

• Home office setups with two computers or a laptop plus desktop
• Workstations requiring 4K video output and peripheral sharing
• IT administrators who need quick switching between systems
• Content creators who use SD/Micro SD cards and external peripherals

Key specifications

• Brand: Unitek
• Model: D1077A
• Controlled computers: 2
• Video output: HDMI, up to 4K UHD @ 60Hz (3840 x 2160)
• USB data ports: 2 × 5 Gbps and 2 × 10 Gbps (type-A ports)
• Power Delivery: up to 100 W
• Ethernet: RJ-45 Gigabit
• Audio: 3.5 mm stereo output and 3.5 mm microphone input
• Card readers: SD and TF (Micro SD), support reading two cards simultaneously
• Colour: Black

How to use

Connect the KVM switch to each computer using the provided USB and HDMI cables or compatible USB Type-C to HDMI connections. Attach your monitor to the HDMI output and plug in a single keyboard and mouse to the USB ports. Insert SD or TF cards into the built-in slots to access files. Use the one-key switch button on the unit to toggle control between the two connected computers; Ethernet and audio connections will remain available to the active system.

Recommendations

For reliable 4K @ 60Hz output, use high-quality HDMI cables rated for 18 Gbps and ensure connected computers support HDMI 2.0 or DisplayPort-to-HDMI conversion that provides 4K@60Hz. To charge laptops at full 100 W Power Delivery, confirm the host device accepts PD charging over the connected USB Type-C port.
