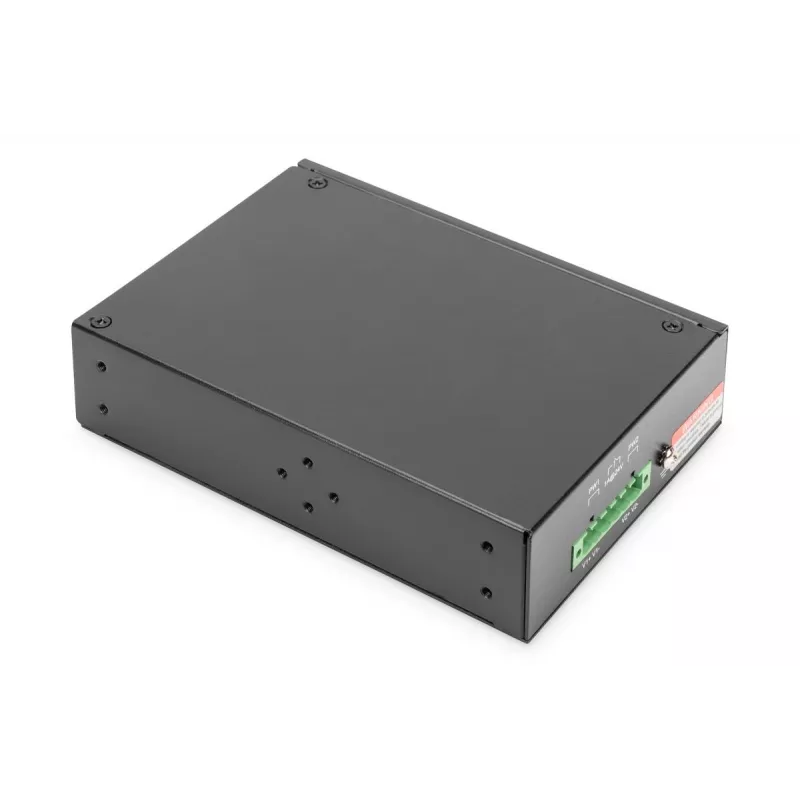

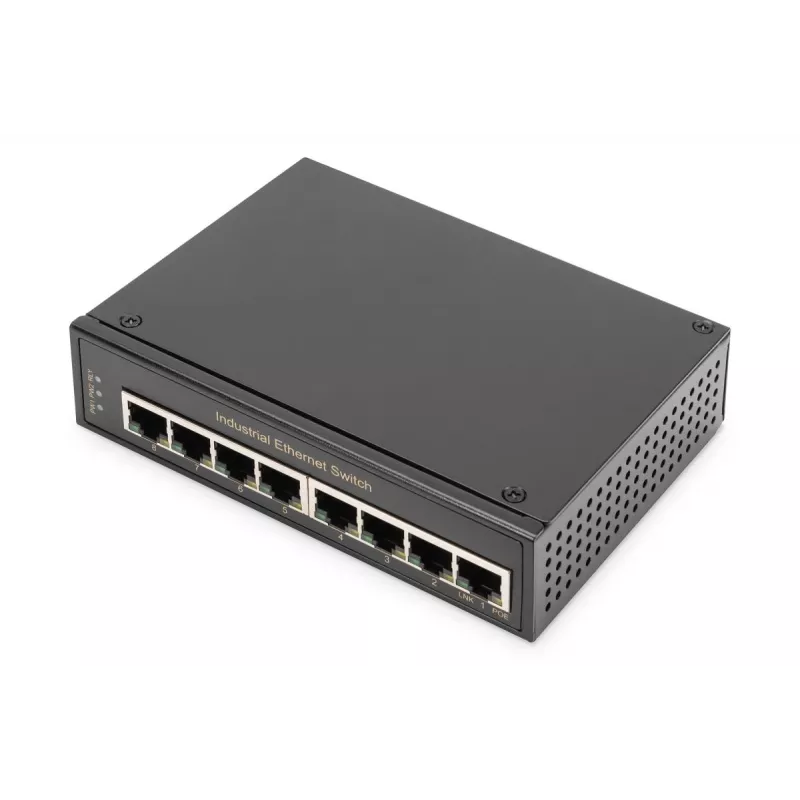

Switch no gestionado Digitus DN-651108 8 puertos Gigabit Ethernet

The DIGITUS DN-651108 Unmanaged Switch is an industrial 8-port Gigabit Ethernet switch for use in harsh environments. It provides eight 10/100/1000Base-TX RJ-45 ports, supports full-duplex communication and a MAC address table with 8000 entries, and offers a switching capacity of 16 Gbit/s. Built to operate over a wide DC input range (12–56 V) and to withstand temperatures from -40 °C to +75 °C, this wall-mountable switch is suited for continuous operation in transportation, production, traffic systems and security surveillance.

Advantages

The unmanaged design enables plug-and-play installation without configuration, reducing deployment time. Gigabit ports deliver high-speed wired connectivity for industrial devices while the extended operating temperature range and robust construction ensure reliable performance under humidity, vibration and temperature fluctuations. Compliance with IEEE networking standards and a compact, wall-mountable form factor provide easy integration into existing networks.

Suitable for

• Industrial automation and production networks
• Transportation systems (rail, road control)
• Traffic management and road surveillance
• Security and CCTV camera networks
• Any application requiring a hardened unmanaged Gigabit switch

Key specifications

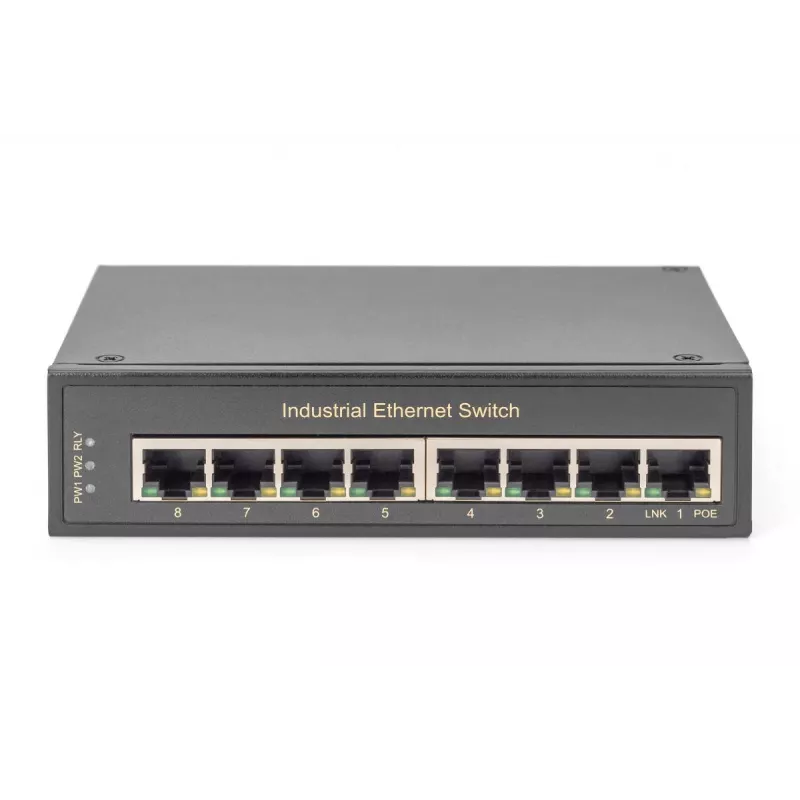

• Ports: 8 x 10/100/1000Base-TX RJ-45
• Switch type: Unmanaged
• MAC address table: 8000 entries
• Switching capacity: 16 Gbit/s
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x

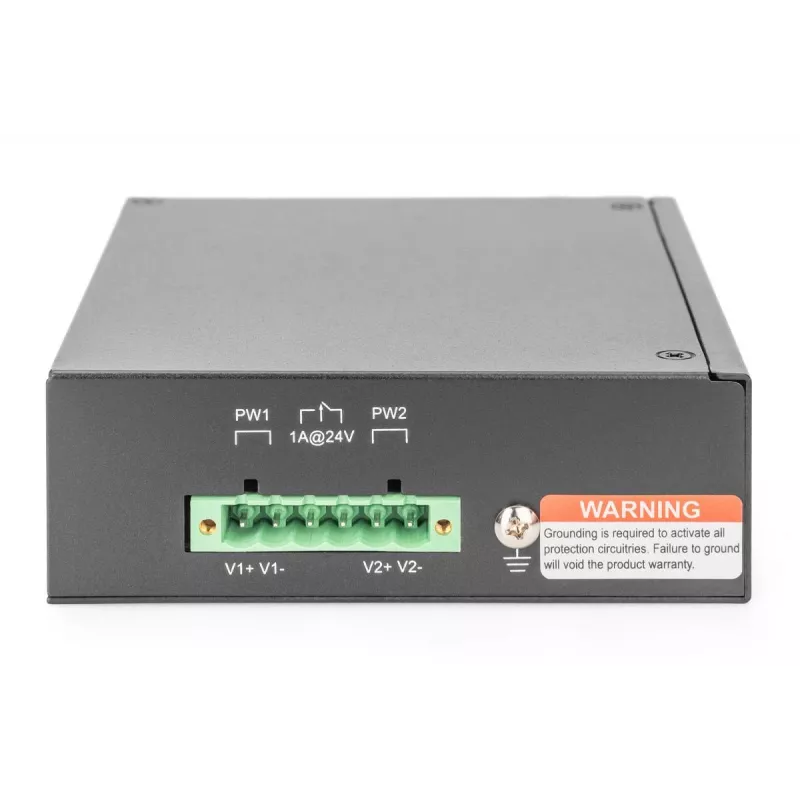

• Input voltage: DC 12–56 V
• Operating temperature: -40 °C to +75 °C
• Mounting: Wall-mountable
• Colour: Black
• Weight: 0.52 kg

How to use

Mount the switch on a suitable wall or panel using compatible fasteners, connect a DC power source within the specified 12–56 V range, and attach Ethernet cables to the RJ-45 ports. Devices connected to the ports will establish network links automatically thanks to auto-negotiation and full-duplex support. No configuration is required for basic operation; monitoring and management are performed externally if needed by adding network management tools elsewhere on the network.

Recommendations

Install the switch in a ventilated, dust-minimized location and ensure the power supply is stable and within the specified range. Use shielded Ethernet cables and proper grounding in electrically noisy or high-vibration environments to maximise reliability.
