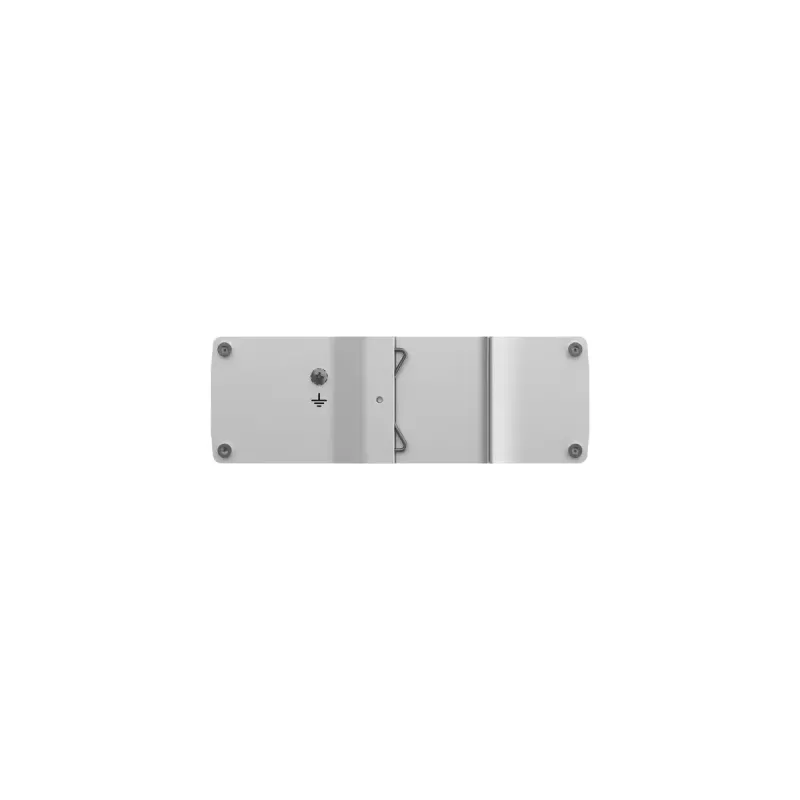

Switch no gestionado Teltonika TSW210

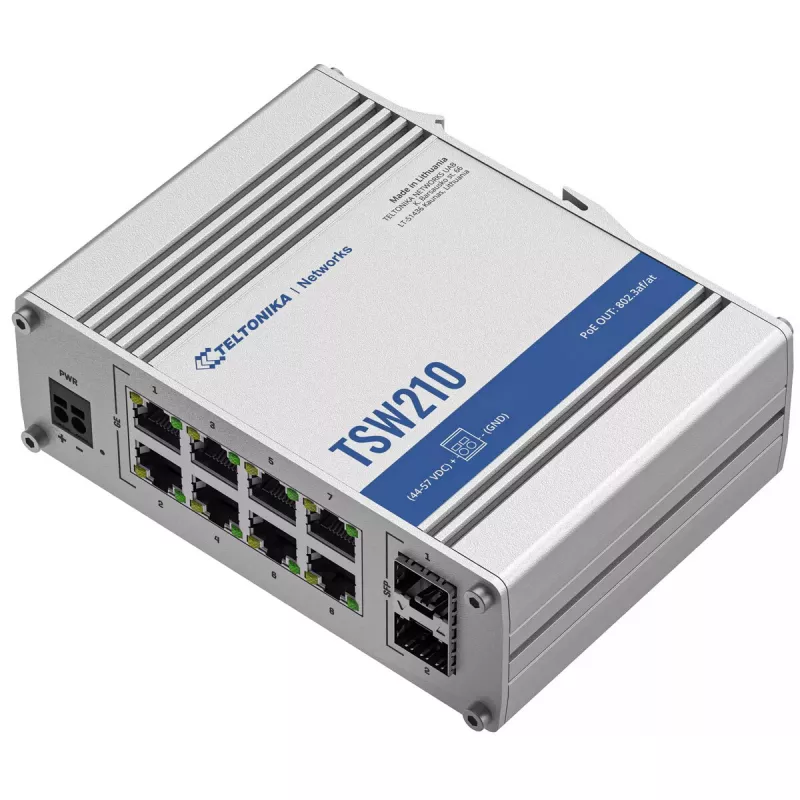

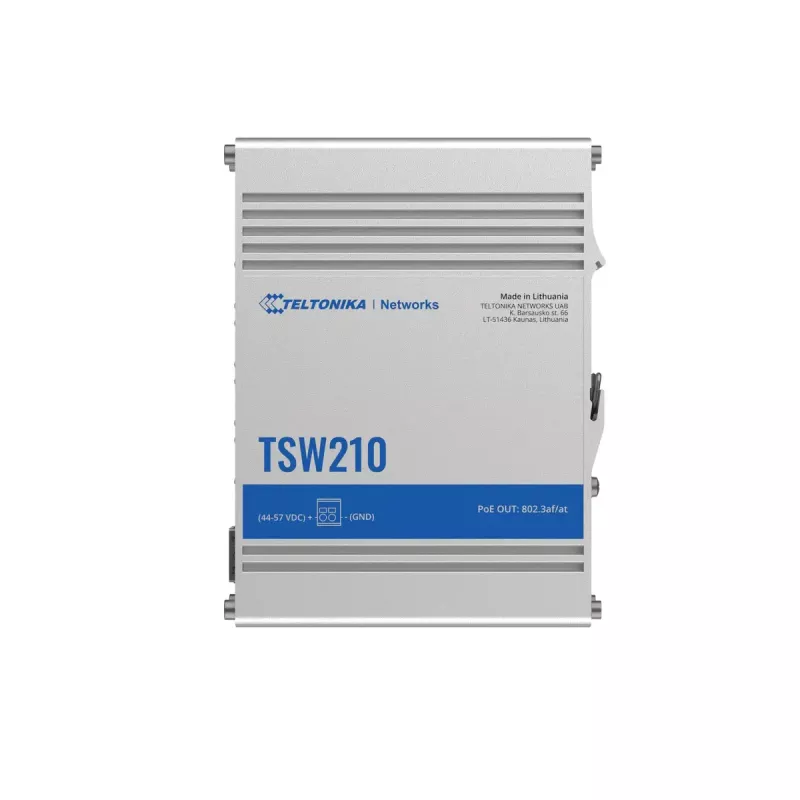

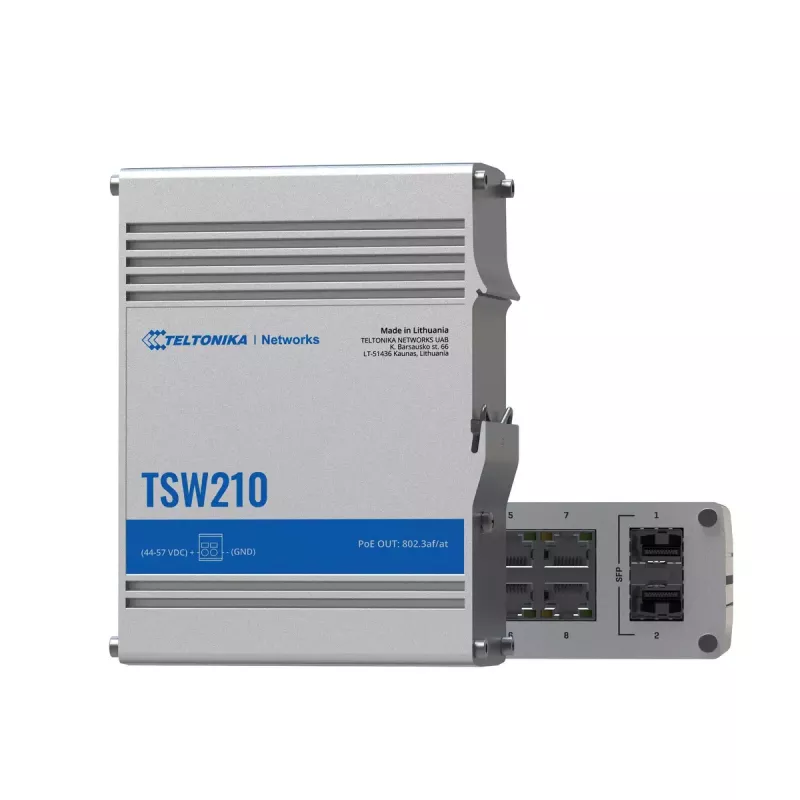

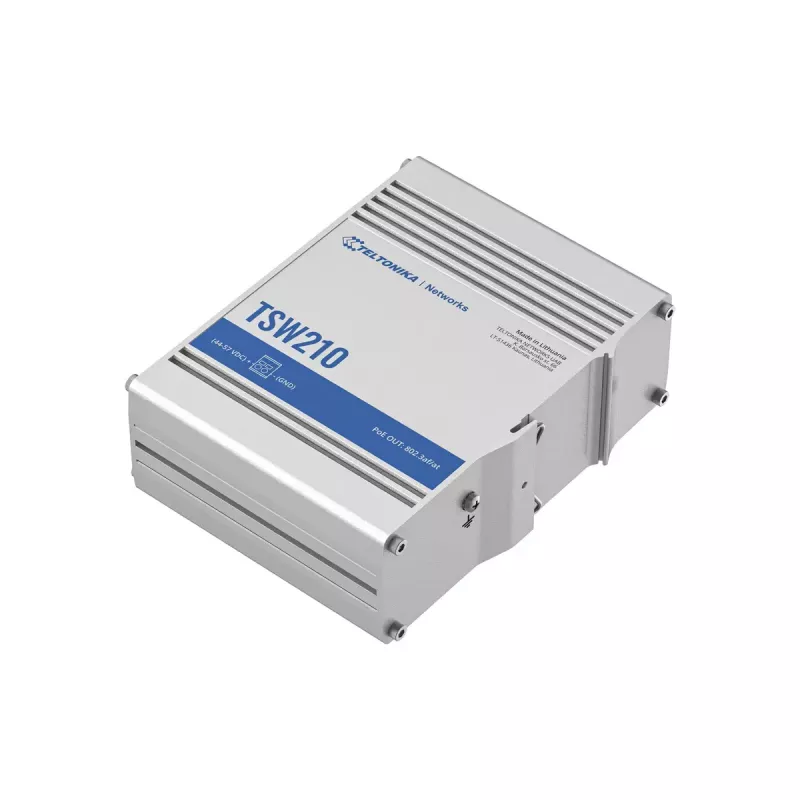

The Teltonika TSW210 is an unmanaged gigabit Ethernet switch designed to centralize network resources in industrial environments. It provides eight Gigabit RJ-45 ports and two SFP slots for fiber-optic uplinks, supporting data rates up to 1000 Mbps per Ethernet port. The switch is built in a durable aluminium housing and offers DIN-rail and surface mounting options for flexible installation.

Advantages

The TSW210 supports a switching capacity of 20 Gbit/s and a MAC address table with 2048 entries, enabling stable layer-2 traffic handling without configuration. Wide DC input range (7–57 V) and compliance with common IEEE networking standards ensure compatibility with existing infrastructure. Compact, rugged construction minimizes maintenance and fits industrial racks or cabinets.

Suitable for

• Industrial automation networks
• Factory floor and machine-to-machine connectivity
• Long-distance fiber uplinks between sites or cabinets
• Small to medium-sized Ethernet aggregation points

Key specifications

• Switch type: Unmanaged

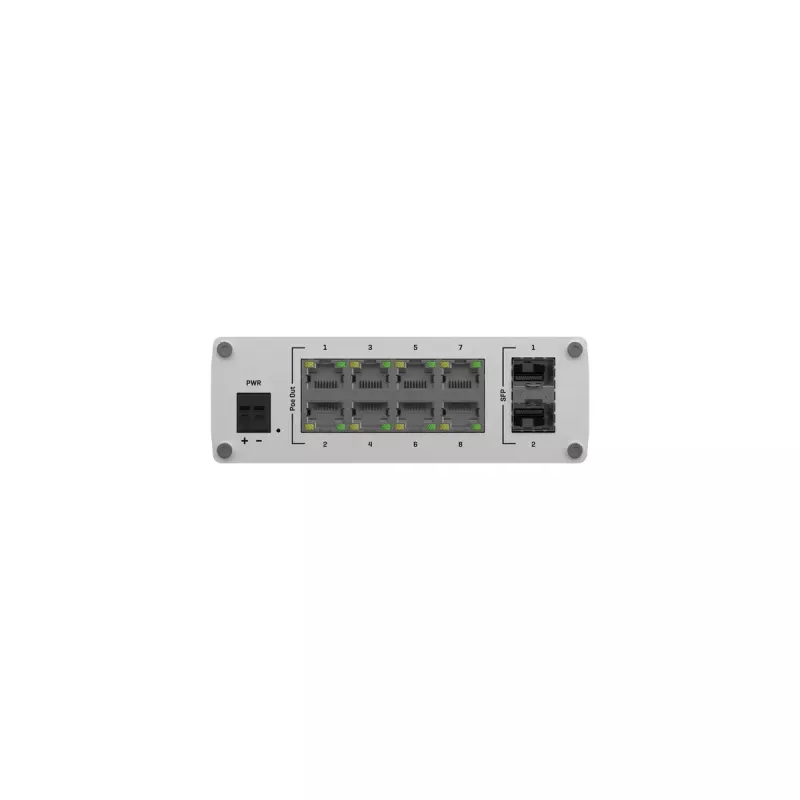

• Ports: 8 × Gigabit RJ-45 (10/100/1000) + 2 × SFP
• Switching capacity: 20 Gbit/s
• MAC address table: 2048 entries
• Input voltage: DC 7–57 V
• Product colour: Aluminium
• Weight: 0.5 kg
• Networking standards: IEEE 802.3ab, 802.3ad, 802.3az, 802.3i, 802.3u, 802.3x

How to use

Mount the switch on a DIN rail or a flat surface using the supplied brackets. Connect the power source within the 7–57 V DC range. Attach Ethernet devices to the RJ-45 ports and fiber modules to the SFP slots as required. The device is unmanaged, so it operates immediately without configuration; verify link LEDs to confirm active connections.

Recommendations

Install the TSW210 in a ventilated enclosure away from direct heat sources. Use compatible SFP modules for fiber links and ensure correct polarity and grounding in industrial installations to maintain stable operation.
