Switch no gestionado Trendnet TI-ELC80 8 puertos Fast Ethernet 10/100

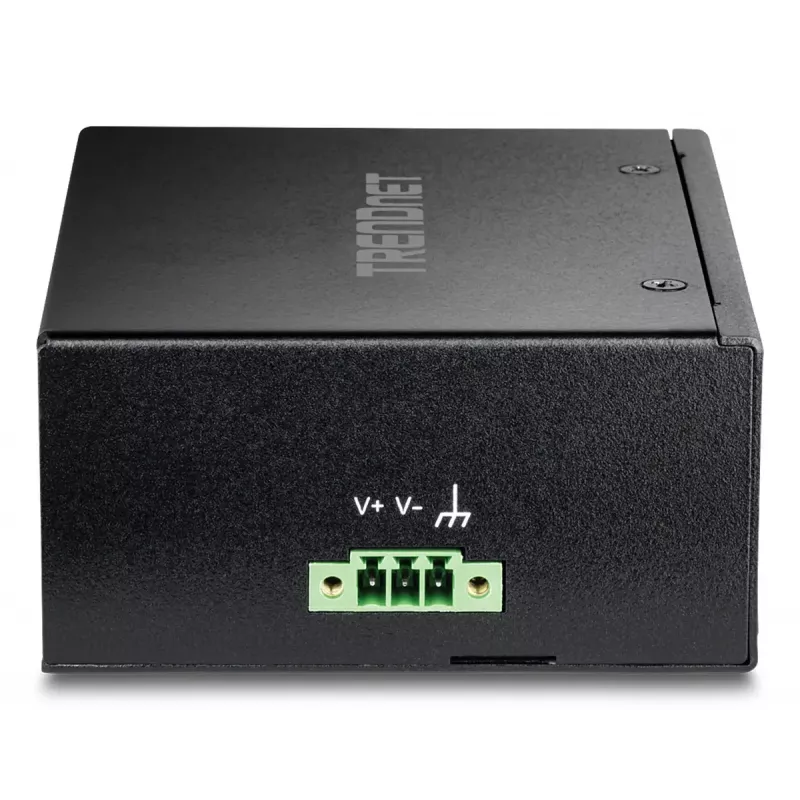

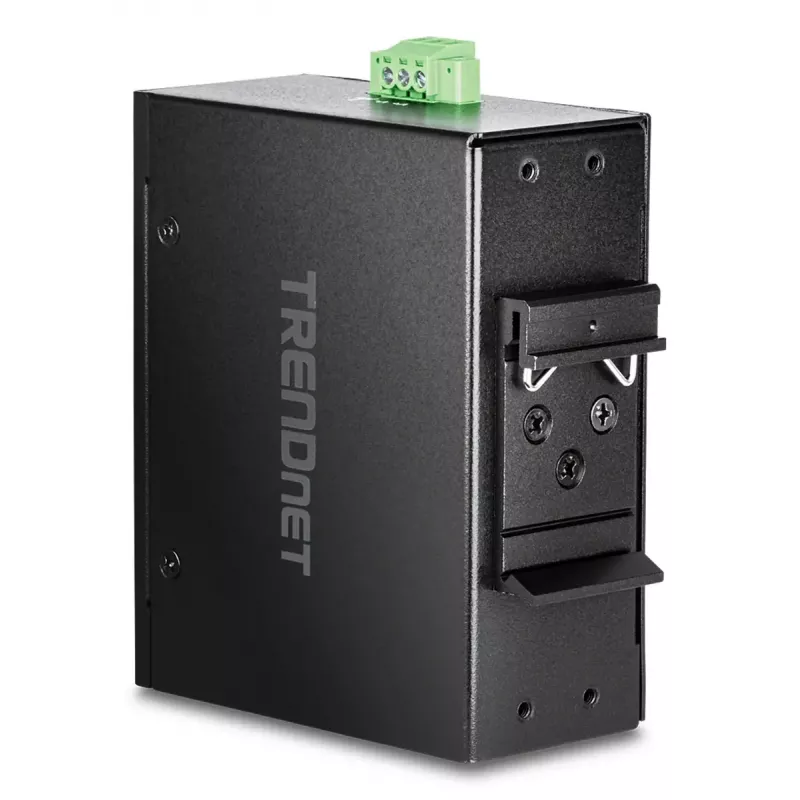

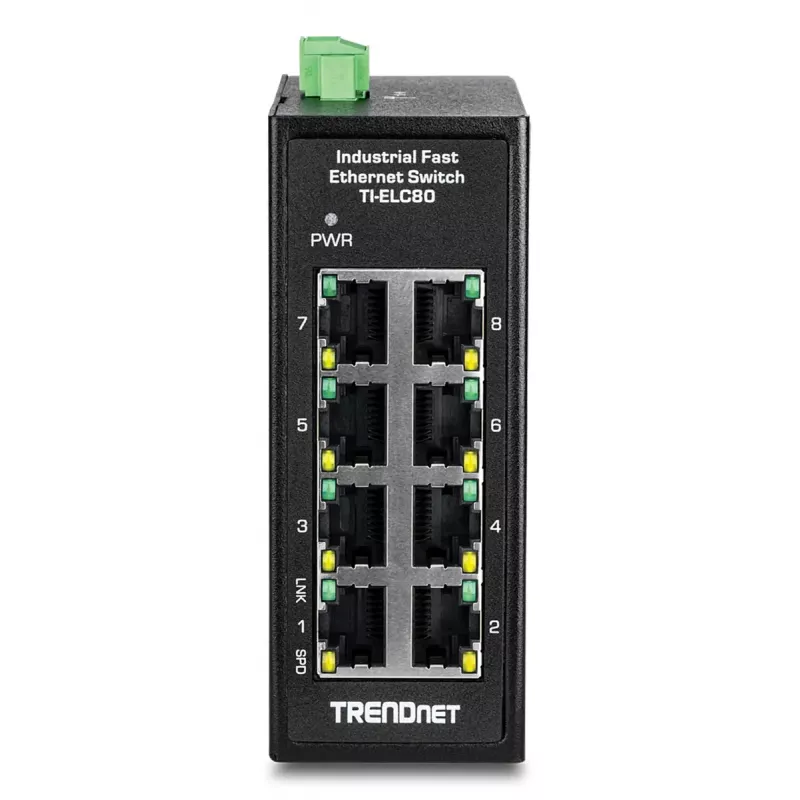

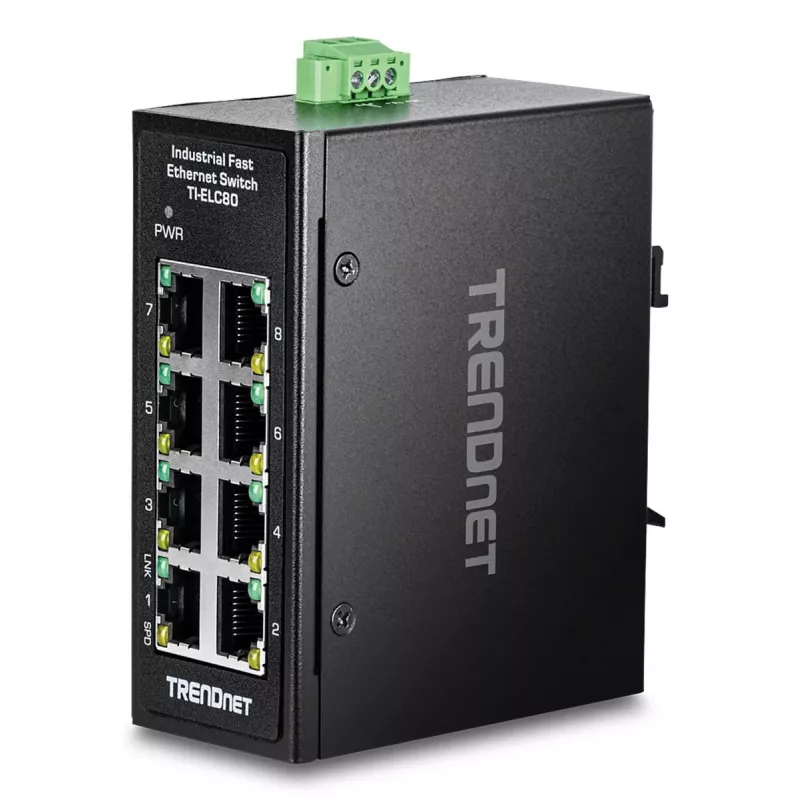

TRENDnet TI-ELC80 is an unmanaged 8-port Fast Ethernet switch designed for industrial environments. Housed in a hardened IP30 metal enclosure, the compact DIN-rail mini switch provides reliable 10/100 Mbps connectivity for multiple devices and is built to tolerate vibration, shock and wide temperature ranges from -40° to 75° C (-40° to 167° F). The unit is compact for installation in constrained spaces and can be mounted on DIN-rail or on a wall; a separate DC power supply is required (model TI-M6024).

Advantages

The TI-ELC80 offers a rugged metal housing and an extended operating temperature range suitable for demanding installations. With eight Fast Ethernet RJ-45 ports, a MAC address table of 1000 entries and a switching capacity of 1 Gbit/s, it delivers stable basic switching performance in an unmanaged configuration. DIN-rail and wall mount brackets are included for flexible installation.

Suitable for

• Industrial automation networks
• Factory floors and outdoor cabinet installations
• Compact or space-constrained control panels
• Basic unmanaged LAN expansions

Key specifications

• Ports: 8 x 10/100 Mbps RJ-45
• Switch type: Unmanaged
• MAC address table: 1000 entries
• Switching capacity: 1 Gbit/s (1.6 Gbps stated switching capacity in some documentation)
• Operating temperature: -40° to 75° C (-40° to 167° F)
• Power input: DC (requires external power supply, model TI-M6024 sold separately)
• Enclosure: Hardened IP30 metal

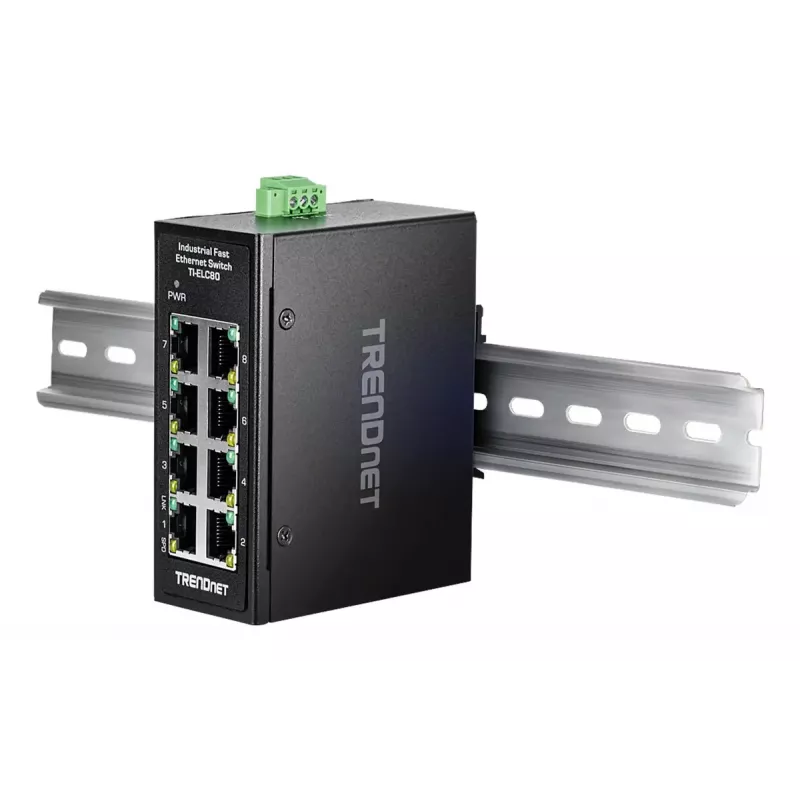

• Mounting: DIN-rail and wall mount brackets included
• Compliance: NDAA / TAA (U.S. and Canada only)

How to use

Mount the TI-ELC80 on a DIN-rail or attach it to a wall using the supplied brackets. Connect devices to the 8 Fast Ethernet RJ-45 ports using standard Ethernet cables. Provide DC power using a compatible external power supply (model TI-M6024) within the specified voltage range. The switch is unmanaged and requires no configuration—connected devices will communicate using standard Ethernet auto negotiation and full/half duplex as supported.

Recommendations

Install the switch in a well-ventilated location within its specified temperature range, secure mounting to reduce vibration, and use the recommended power supply (TI-M6024). For critical deployments, verify cable quality and grounding to maintain reliable connections.
