Switch no gestionado Trendnet TI-G62

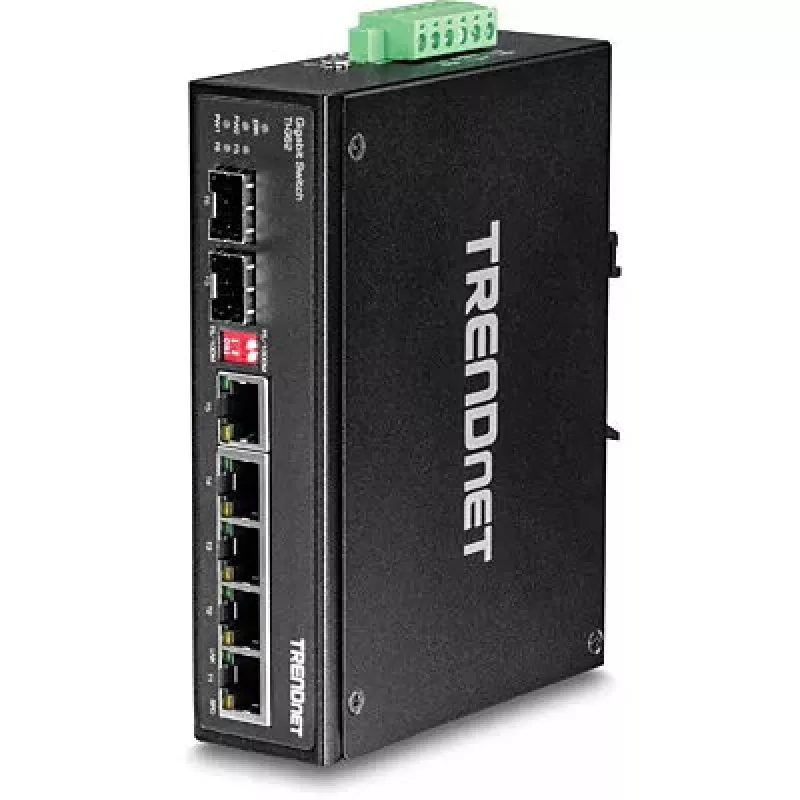

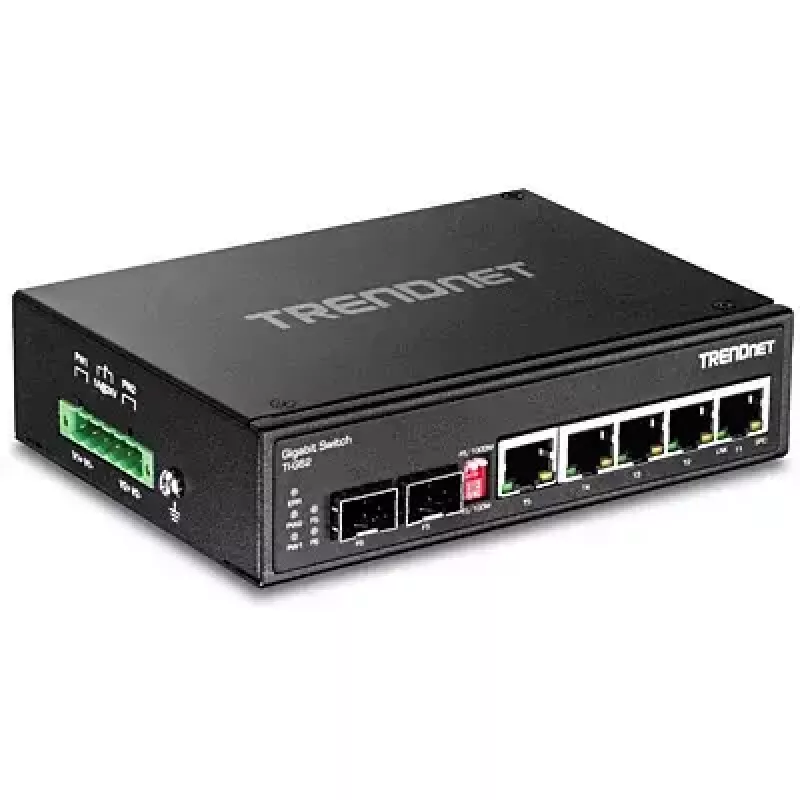

The TRENDnet TI-G62 is an unmanaged L2 Gigabit Ethernet DIN-rail switch built for industrial use and rated to IP30. It provides five 10/100/1000 Mbps RJ-45 ports, one dedicated SFP slot and one shared SFP/Gigabit port, a MAC address table of 2048 entries and a switching capacity of 12 Gbps. The device supports full-duplex communication and common IEEE networking standards for straightforward integration into existing networks.

Advantages

The TI-G62 offers hardened components for extreme industrial environments, dual redundant power inputs for higher availability, and a compact DIN-rail form factor for easy mounting in control cabinets. DIP switches allow selecting between the shared Gigabit copper port and the shared SFP slot and set the supported throughput to either 100 Mbps or 1 Gbps, providing flexible port configuration without software management.

Suitable for

• Small to medium industrial Ethernet networks
• Factory automation and process control cabinets
• Applications requiring DIN-rail mounting and compact footprint
• Environments needing redundant power inputs for increased uptime

Key specifications

• Switch type: Unmanaged L2
• Ports: 5 x RJ-45 Gigabit (10/100/1000 Mbps), 1 x dedicated SFP, 1 x shared SFP/Gigabit port
• Switching capacity: 12 Gbps
• MAC address table: 2048 entries
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z
• Ingress protection: IP30
• Mounting: DIN-rail
• Weight: 0.514 kg
• Colour: Black

How to use

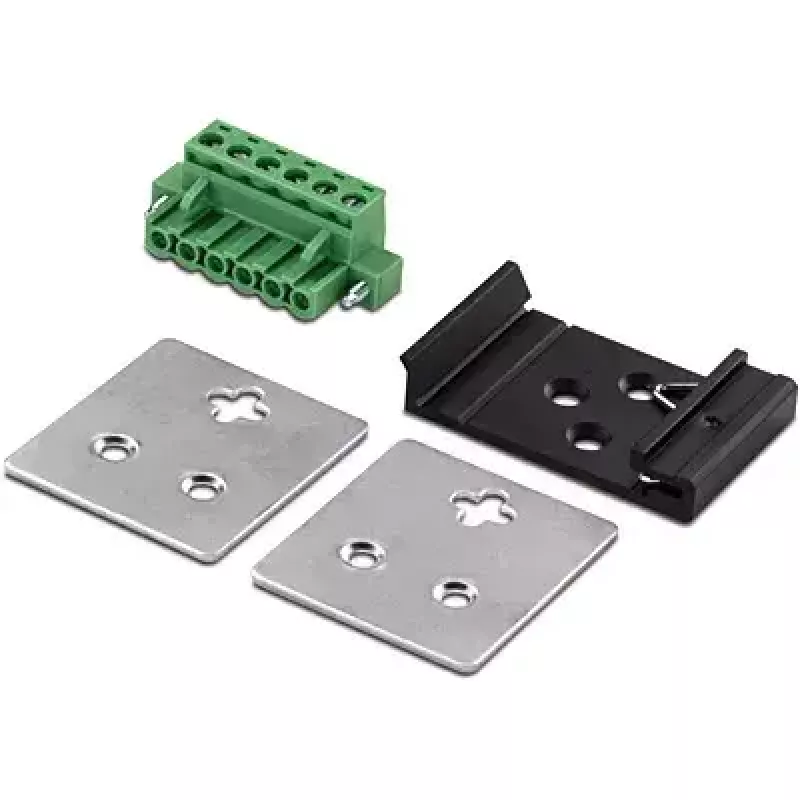

Mount the TI-G62 on a standard DIN rail inside a suitable control cabinet and connect the RJ-45 ethernet cables to the Gigabit ports. Insert SFP modules into the dedicated or shared SFP slot as required; use the DIP switches to select whether the shared port uses the copper Gigabit port or the SFP transceiver and to set the shared port speed to 100 Mbps or 1 Gbps. Connect power to the dual redundant power inputs (power supply sold separately, model TI-M6024) and verify link/activity LEDs for proper operation.

Recommendations

Use compatible industrial-grade SFP modules and install a redundant power supply to take advantage of the TI-G62’s dual power inputs. Ensure proper ventilation and mounting inside a cabinet rated for industrial environments to maintain reliability.
