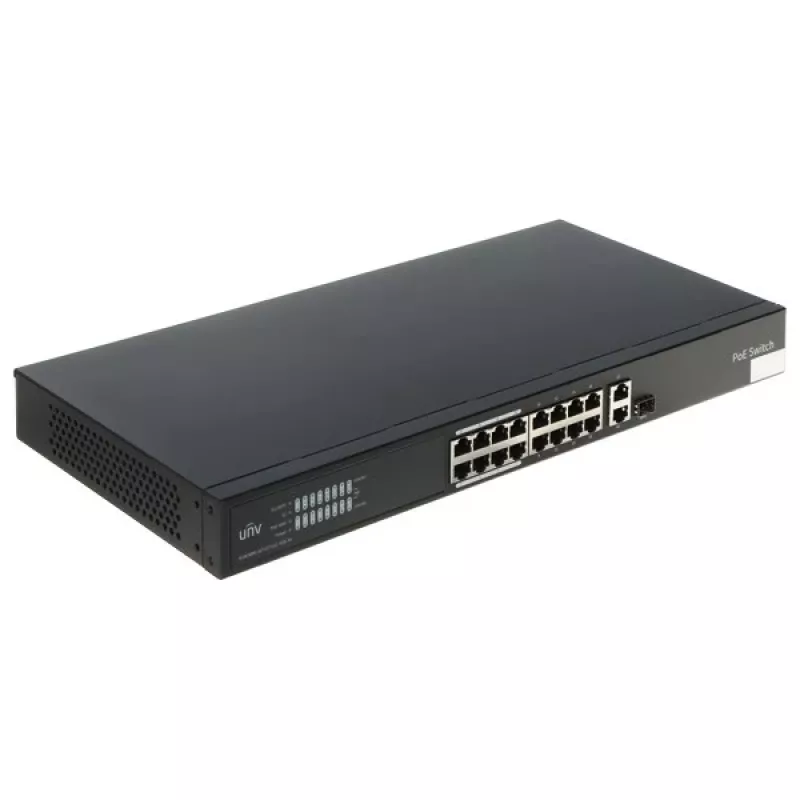

Switch PoE LANG 16 puertos Uniview NSW3000-16T1GT1GC-POE-IN

The POE LANG NSW3000-16T1GT1GC-POE-IN is a high-performance 16-port PoE switch designed for reliable network expansion in surveillance and enterprise environments. With a total PoE power budget of 230W and support for IEEE 802.3af/at, it delivers up to 30W per port to power IP cameras, access points, and other PoE devices. The switch features 16 PoE ports (10/100 Mbps) and 2 Gigabit uplink ports (10/100/1000 Mbps), providing seamless connectivity and data throughput.

Advantages

This switch offers advanced PoE features including Extend Mode for ports 1-8, enabling power and data transmission up to 250 meters, and PoE Watchdog for automatic device reset. Its 1U rack-mountable design saves space, while internal power supply ensures stable operation. With a switching capacity of 7.2 Gbps and jumbo frame support up to 10 KB, it handles large data loads efficiently.

Suitable for

• IP surveillance systems requiring long-distance PoE
• Small to medium business networks
• Wireless access point deployments
• Edge network aggregation

Key specifications

• 16 PoE ports (10/100 Mbps) with 230W total budget
• 2 Gigabit uplink ports (10/100/1000 Mbps)
• PoE standard: IEEE 802.3af/at, up to 30W per port
• Switching capacity: 7.2 Gbps
• Packet forwarding rate: 5.36 Mpps
• MAC address table: 8K
• Jumbo frame support: 10 KB
• Internal power supply: AC 100-240V, 50/60Hz
• Mounting: 1U rack-mount
• Operating temperature: 0°C to 40°C
• PoE features: Extend Mode (250m for ports 1-8), PoE Watchdog
• Network features: VLAN, QoS
• LED indicators: Link/Act, PoE, Power

Recommendations

For optimal performance, use with CAT5e or higher cabling. Ideal for powering Uniview IP cameras and other PoE devices. Ensure proper ventilation when rack-mounted.
