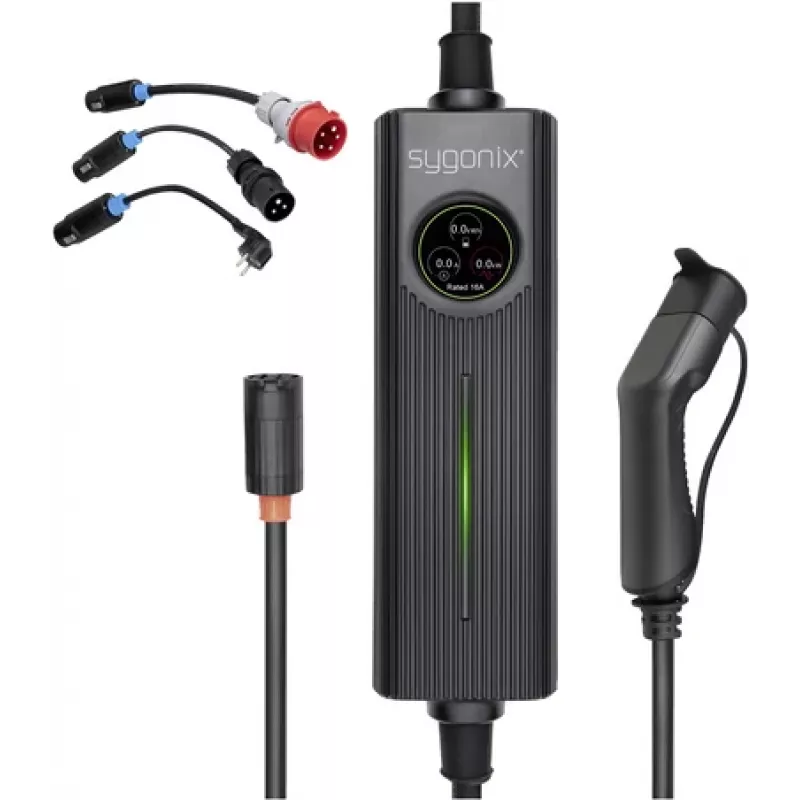

Sygonix Estación de carga móvil Type 2 Mode 2 16 A 1 conexión 11 kW (SY-5479632)

Charging an electric vehicle away from a fixed wallbox often means relying on slow or incompatible equipment. The Sygonix Mobile Charging Station Type 2 Mode 2 solves this by delivering up to 11 kW of three-phase AC power through a standard CEE 16 A industrial socket, giving you a reliable portable charging solution wherever a suitable outlet is available.

Who is it for

This portable charger is ideal for EV owners who need a dependable charging option at locations without dedicated EV charging infrastructure, such as workshops, farms, or temporary parking spots. It suits drivers of any electric vehicle with a Type 2 inlet, including most European EVs and plug-in hybrids.

Main features

• 11 kW three-phase charging for faster top-ups compared to single-phase portable chargers.
• Mode 2 operation with integrated control box (ICCB) for safe charging from industrial sockets.
• Type 2 vehicle connector (IEC 62196-2) compatible with all standard European EVs.
• CEE 16 A 5-pin plug for connection to three-phase industrial outlets.
• 5 m cable length for flexibility in reaching the vehicle from the socket.
• IP65-rated control box withstands dust and water jets, suitable for outdoor use.
• Integrated RCD (Type A + DC 6 mA) and comprehensive protection against overcurrent, overvoltage, undervoltage, overtemperature, ground faults, and leakage current.
• LCD display and LED indicators provide clear charging status and diagnostics.
• Durable polycarbonate housing for long-lasting performance in demanding environments.
• Wide operating temperature range from -30 °C to +50 °C for use in extreme climates.

Specifications

• Charging Power: 11 kW
• Charging Current: 16 A
• Charging Mode: Mode 2
• Vehicle Connector Type: Type 2 (IEC 62196-2)
• Grid Connector Type: CEE 16 A 5-pin (3-phase)
• Number of Charging Phases: 3-phase
• Input Voltage: 400 V AC
• Cable Length: 5 m
• Protection Rating (ICCB): IP65
• Integrated RCD: Type A + DC 6 mA
• Operating Temperature Range: -30 to +50 °C
• Display Type: LCD
• Safety Features: Overcurrent, Overvoltage, Undervoltage, Overtemperature, Ground Fault, Leakage Current Protection
• Standards Compliance: IEC 62752, IEC 62196-2
• Housing Material (ICCB): Polycarbonate (PC)
• Color: Black
• Mounting: Portable
• Status Indicators: LCD, LED

Tips

Before first use, confirm that the industrial socket is properly grounded and protected by an appropriate circuit breaker. Always uncoil the cable fully during charging to prevent overheating. When not in use, store the charger in a dry place and protect the connectors from dirt and moisture.
