Sygonix M6 PT100 Sensor de temperatura 3 hilos SY-6085068 -50 a +200 °C cable de 2 m

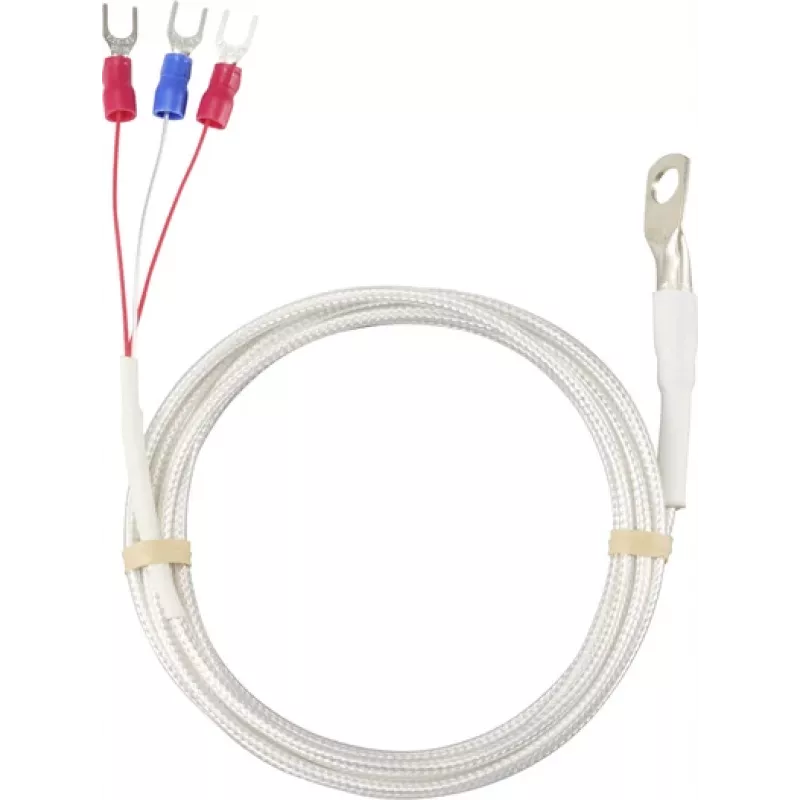

In industrial process control, HVAC systems, and laboratory environments, precise temperature monitoring is critical. The Sygonix M6 PT100 Temperature Sensor is a 3-wire resistance temperature detector (RTD) that delivers accurate measurements from -50 to +200 °C. Its stainless steel probe with M6 thread and 2 m PVC cable with open wire ends make it suitable for direct mounting into machinery, pipes, or test setups.

Key specifications

• Sensor type: PT100 (Platinum RTD)
• Wiring configuration: 3-wire
• Temperature range: -50 to +200 °C
• Probe connection thread: M6
• Cable length: 2 m
• Nominal resistance at 0°C: 100 Ohm
• Accuracy class: Class B
• Probe material: Stainless steel
• Cable material: PVC
• Probe length: 30 mm
• Probe diameter: 6 mm
• Electrical connection: Open wire ends
• Temperature coefficient (Alpha): 0.00385 Ω/Ω/°C

Why choose it

The 3-wire configuration compensates for lead resistance, ensuring reliable readings even with longer cable runs. The robust stainless steel probe withstands harsh environments, while the PT100 element offers excellent long-term stability and interchangeability.

Ideal use cases

• Industrial temperature monitoring
• HVAC system control
• Laboratory and process control
• Machinery and pipe surface measurement

Good to know

The sensor is supplied with open wire ends for flexible connection to your existing instrumentation. No connector is included.
