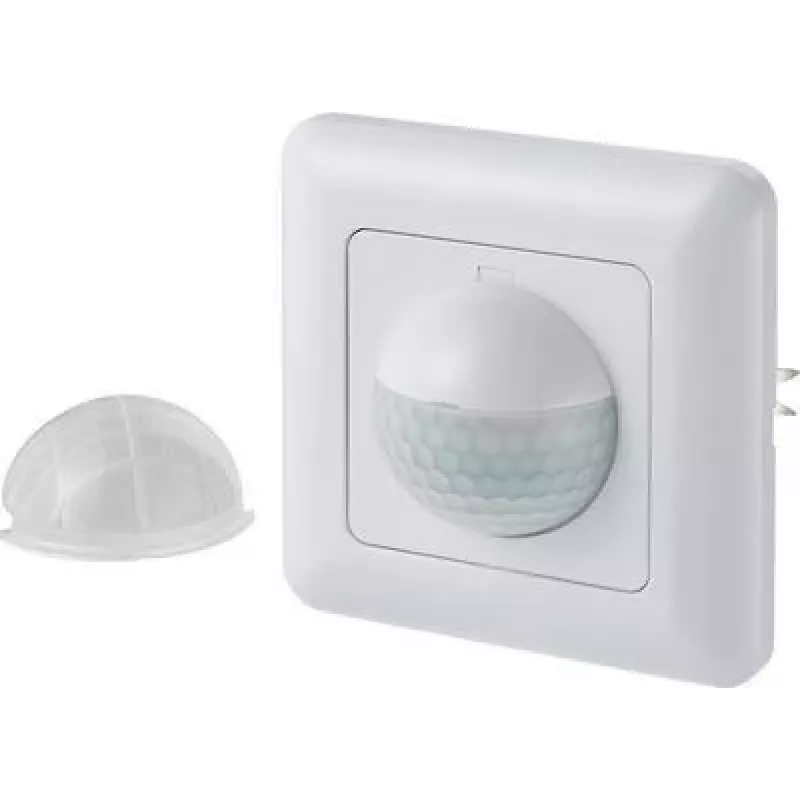

Sygonix SY-4755362 Detector de movimiento PIR empotrable 190° Triac blanco

Detect movement across a full 190° with this flush-mount PIR motion detector, switching loads up to 2000 W via Triac technology. Designed for indoor installation, it combines a 12 m detection range with adjustable time and twilight settings.

Overview

The Sygonix SY-4755362 is a passive infrared (PIR) motion detector for flush-mount installation in walls. It operates on 230 V/AC and uses Triac switching for silent, wear-free control of lighting loads. The detection angle of 190° and maximum range of 12 m make it suitable for hallways, staircases, and large rooms.

What stands out

• Wide 190° detection angle with 12 m range
• Triac switching: no relay clicking, suitable for LED loads up to 1000 W
• Adjustable switch-off delay from 10 seconds to 7 minutes
• Twilight threshold adjustable from 3 to 2000 lux
• Flush-mount design for discreet in-wall installation

Technical details

• Sensor type: Passive infrared (PIR)
• Mounting type: Flush-mount (in-wall)
• Detection angle: 190°
• Detection range: max. 12 m
• Operating voltage: 230 V/AC
• Switching capacity (incandescent/halogen): 2000 W
• Switching capacity (LED/energy-saving lamps): 1000 W
• Switching technology: Triac
• Time setting: 10 s – 7 min
• Light sensitivity: 3 – 2000 lux
• Installation height: 1.0 – 1.8 m
• IP rating: IP20
• Colour: White
• Housing material: Plastic (PC)
• Standby power consumption: 0.5 W
• Operating temperature: -20 °C to +40 °C
• Operating humidity: max. 93% RH (non-condensing)

Our verdict

A reliable flush-mount motion detector with Triac switching, ideal for indoor lighting control where silent operation and LED compatibility matter.
