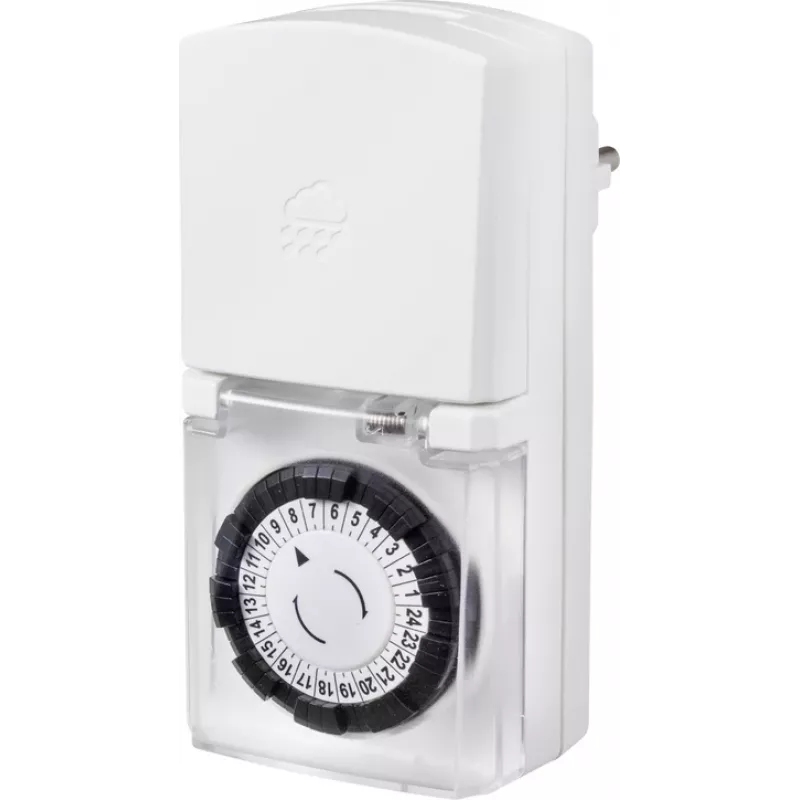

Sygonix SY-5042670 Temporizador analógico diario 3680 W IP44

Managing outdoor lighting or appliances on a fixed daily schedule can be tedious without automation. The Sygonix SY-5042670 analog timer switch provides reliable time-based control for devices up to 3680 W, with a 24-hour dial and 15-minute switching segments. Its IP44 rating makes it suitable for both indoor and outdoor use, while the integrated child protection adds safety.

Who is it for

Homeowners and facility managers who need to automate lights, pumps, or other electrical loads on a daily repeating schedule, especially in sheltered outdoor areas or workshops.

Main features

• Analog daily program with 96 switching segments (15-minute intervals)
• Maximum switching capacity: 3680 W / 16 A at 230 V AC
• IP44 protection against splashing water, suitable for outdoor use
• Integrated child protection shutters
• Plug-in design with Schuko (Type F) socket
• Low standby power consumption (< 1 W)

Specifications

• Timer type: Analog
• Programming period: 24 hours
• Shortest switching interval: 15 minutes
• Number of switching segments: 96
• Maximum power: 3680 W
• Maximum current: 16 A
• AC input voltage: 230 V
• International Protection (IP) code: IP44
• Operating temperature range: -25 to +55 °C
• Housing material: Plastic
• Colour: Black / Grey

Tips

Set the current time by rotating the dial, then push down the segments for the desired ON periods. Ensure the connected load does not exceed 3680 W. For outdoor use, install in a sheltered location to maximize longevity.
