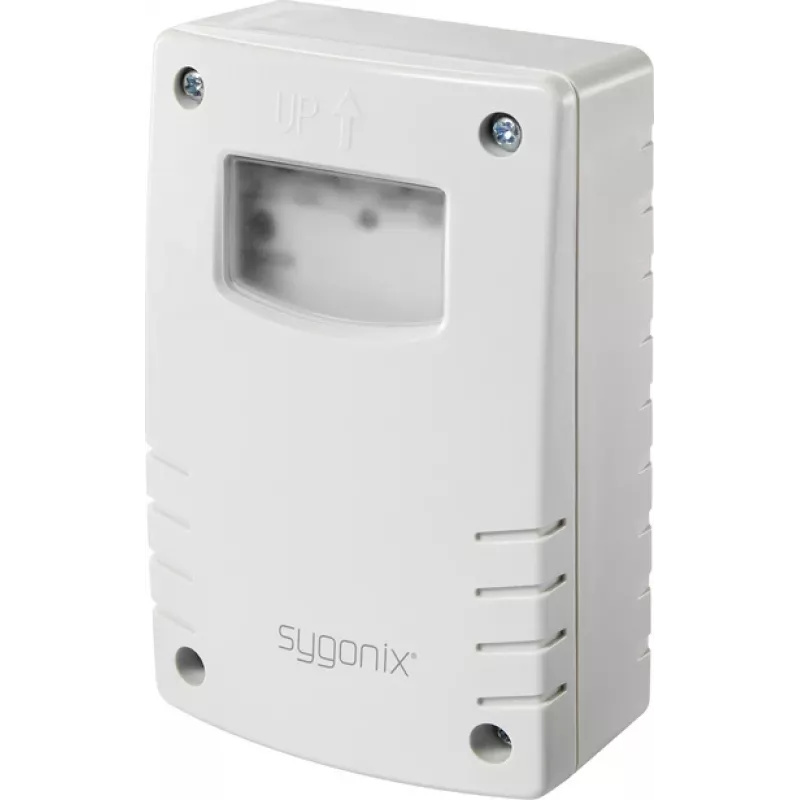

Sygonix SY-5836542 Interruptor crepuscular gris 230 V/AC 1 contacto NA 1 a 9 h

Twilight switch with integrated light sensor for automatic lighting control. It switches connected loads on at dusk and off after an adjustable timer duration of 1 to 9 hours. The switching threshold is adjustable from 5 to 100 lux.

Advantages

Automatic switching based on ambient brightness, with adjustable timer to avoid unnecessary operation. Robust plastic housing in grey, suitable for wall mounting.

Suitable for

• Outdoor lighting
• Garden and pathway lights
• Shop window lighting

Key specifications

• Operating voltage: 230 V/AC
• Frequency: 50 Hz
• Switching contact: 1 NO (normally open)
• Max. resistive load: 2300 W (10 A)
• Max. inductive load: 1150 VA (5 A)
• Twilight threshold: 5 - 100 lux
• Timer function: 1 - 9 hours
• Protection class: IP44
• Mounting type: Wall mounting
• Colour: Grey
• Material: Plastic
• Standby power consumption: < 0.5 W
• Operating temperature range: -20 to +40 °C
• Sensor type: Integrated light sensor
• Cable entry: Rear

Recommendations

Ideal for automatic control of outdoor lighting with adjustable timer and twilight threshold.
