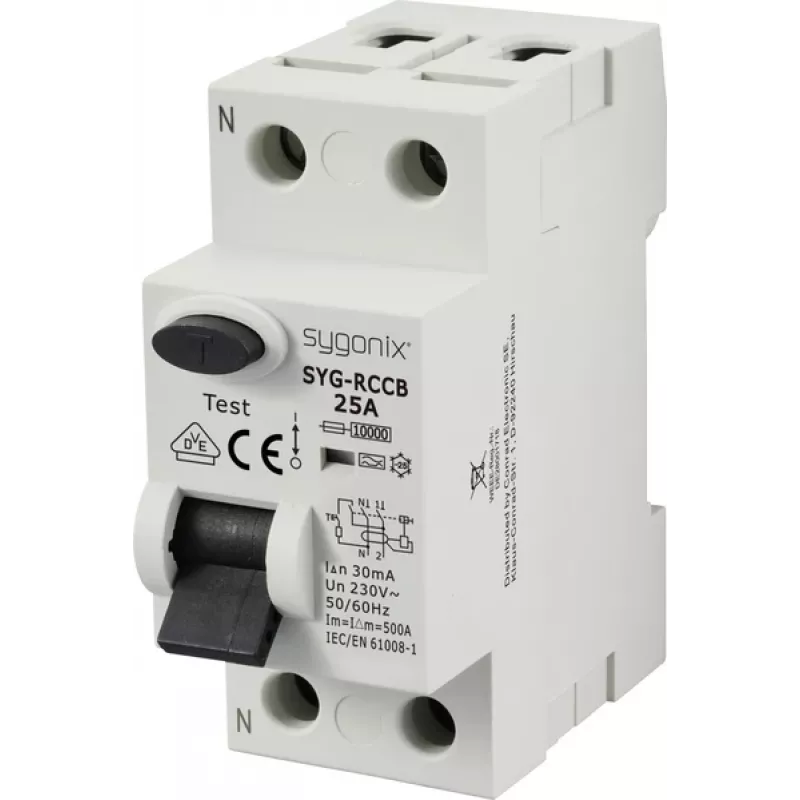

Sygonix SY-6438014 Interruptor diferencial 1P+N 25A 30mA tipo A 230V AC 10kA

Residual Current Circuit Breaker (RCCB) with a rated current of 25 A and a residual operating current of 30 mA. This electromechanical device provides protection against indirect contact and fire hazards by disconnecting the circuit when a fault current is detected. The integrated test button allows for regular functional checks.

Advantages

Voltage-independent operation ensures reliable tripping even in the event of a neutral conductor failure. The Type A residual current characteristic detects alternating and pulsating direct residual currents, making it suitable for a wide range of applications.

Suitable for

• Residential distribution boards
• Commercial electrical installations
• Protection of socket outlets and lighting circuits

Key specifications

• Rated current: 25 A
• Rated residual operating current: 30 mA
• Residual current type: A
• Number of poles: 1P+N
• Rated voltage: 230 V AC
• Rated short-circuit breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Terminal type: Screw terminals
• Standard compliance: IEC/EN 61008-1

Recommendations

Install this RCCB in distribution boards to enhance protection against electric shock and fire risks. Regular testing with the integrated test button is recommended to ensure proper functionality.
