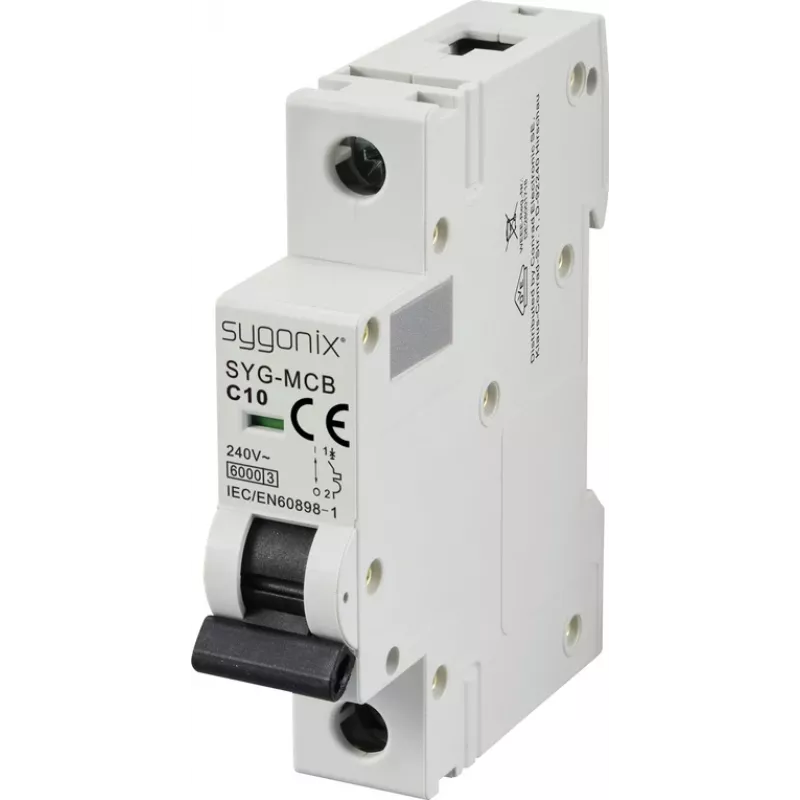

Sygonix SY-6440888 SYG-MCB 1P C10 6kA Interruptor automático 10 A 240 V/AC

Miniature circuit breaker with 1-pole protection and C tripping characteristic, rated for 10 A at 240 V/AC. Its 6 kA breaking capacity reliably interrupts short-circuit currents in residential and commercial installations.

Advantages

DIN rail mounting for quick installation. Screw terminals accept solid conductors up to 25 mm² and flexible conductors up to 16 mm². Mechanical endurance of 20,000 cycles and electrical endurance of 10,000 cycles ensure long service life.

Suitable for

• Protection of lighting and socket circuits in residential buildings
• Control circuits in industrial environments
• Distribution boards with DIN rail mounting

Key specifications

• Number of poles: 1
• Rated current: 10 A
• Rated voltage: 240 V/AC
• Tripping characteristic: C
• Rated breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Terminal type: Screw terminals
• Max. terminal cross-section (solid): 25 mm²
• Max. terminal cross-section (flexible): 16 mm²
• Protection class (front): IP40
• Protection class (terminals): IP20
• Operating temperature range: -25 to +55 °C
• Energy limiting class: 3

Recommendations

Verify the short-circuit current at the installation point does not exceed 6 kA. For mixed loads with high inrush currents, consider a D characteristic breaker.
