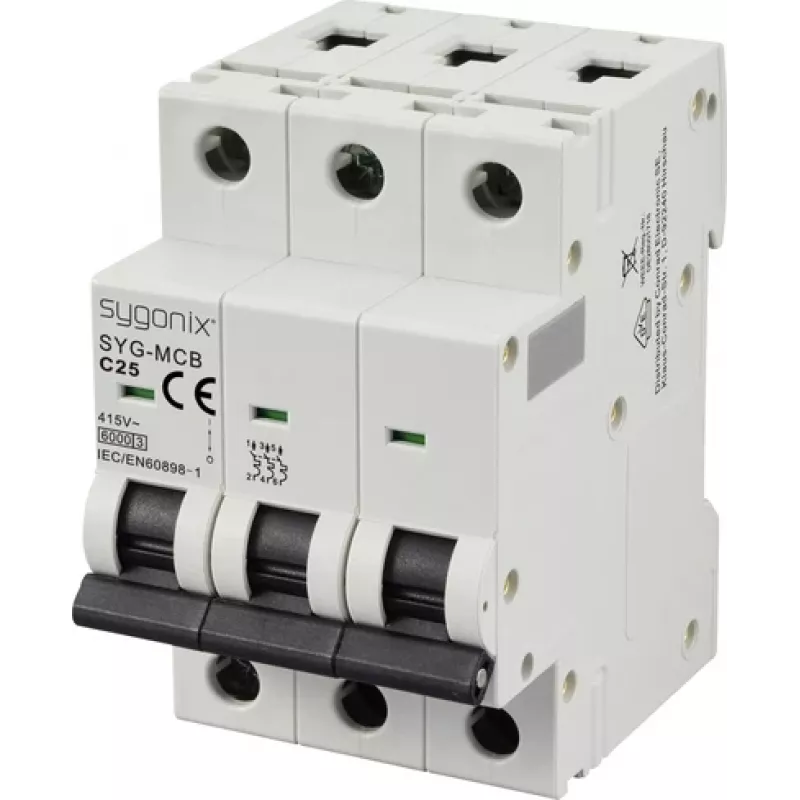

Sygonix SY-6441088 interruptor automático 3 polos C25A 6kA 415V AC montaje en carril DIN

The Sygonix SY-6441088 is a 3-pole miniature circuit breaker with a C tripping characteristic, rated at 25 A and 415 V AC. It offers a short-circuit breaking capacity of 6 kA and mounts on a standard DIN rail. This MCB is suitable for protecting circuits in commercial and industrial installations where moderate inrush currents are expected.

Highlights

• 3-pole design for three-phase circuits
• Type C tripping curve for general applications
• 25 A rated current, 415 V AC rated voltage
• 6 kA short-circuit breaking capacity
• DIN rail mounting, 3 modules wide

Full specifications

• Product type: Miniature Circuit Breaker (MCB)
• Number of poles: 3
• Tripping characteristic: C
• Rated current: 25 A
• Rated voltage: 415 V AC
• Short-circuit breaking capacity: 6 kA
• Mounting type: DIN rail
• Frequency: 50/60 Hz
• Protection class: IP20
• Standard compliance: EN 60898-1
• Energy limiting class: 3
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Terminal capacity: 1-25 mm²
• Operating temperature range: -25 to +55 °C
• Module width: 3 modules (52.5 mm)

Final note

Reliable circuit protection for three-phase installations, with robust performance and easy DIN rail installation.
