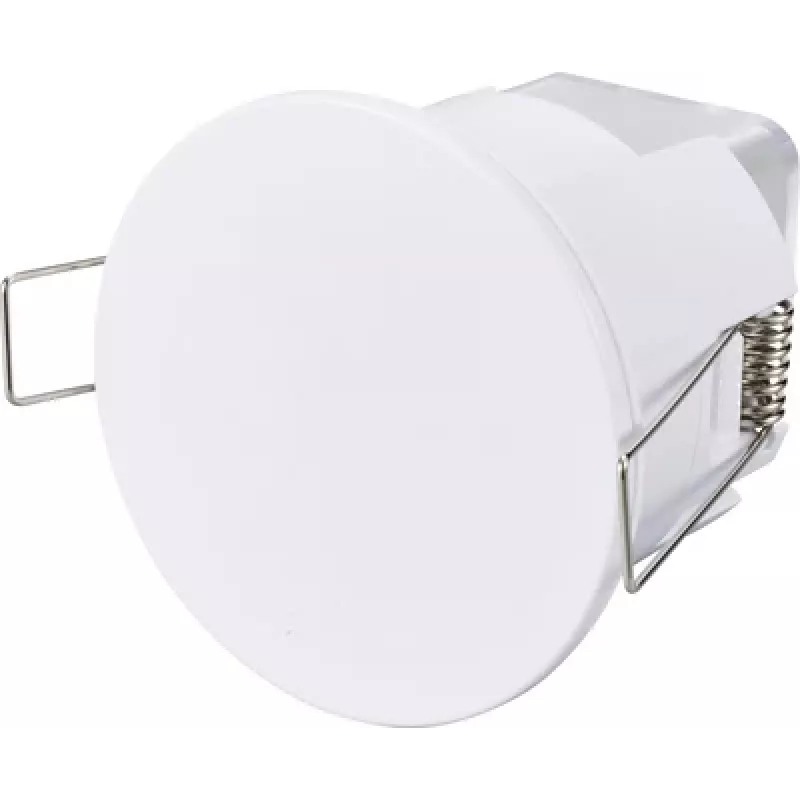

Sygonix SY-6683268 detector de presencia PIR de techo empotrable 360° relé blanco IP54

Ceiling flush-mount presence detector with a 360° detection angle and relay output for automatic lighting control. It detects motion using a passive infrared sensor and switches connected loads up to 2000 W (resistive) or 1000 W (LED/fluorescent).

Advantages

Wide 360° coverage with a detection radius of 6 m at a mounting height of 2.5 m. Adjustable time delay from 10 seconds to 15 minutes and twilight threshold from 3 to 2000 lux for flexible automation. IP54-rated housing suitable for dusty or damp indoor environments.

Suitable for

• Automatic lighting in corridors, stairwells, and restrooms
• Energy-saving control in offices, warehouses, and public buildings
• Ceiling flush-mount installation in indoor areas

Key specifications

• Detection angle: 360°
• Sensor type: Passive infrared (PIR)
• Mounting type: Ceiling flush-mount
• Operating voltage: 230 V/AC, 50 Hz
• Max switching capacity: 2000 W resistive, 1000 W LED/fluorescent
• IP rating: IP54
• Detection range: 6 m radius at 2.5 m height
• Time delay: 10 s – 15 min
• Twilight threshold: 3 – 2000 lux
• Recommended mounting height: 2.2 – 4 m
• Standby power consumption: 0.5 W
• Output type: Relay
• Colour: White
• Installation cut-out diameter: 65 mm
• Operating temperature: -20 to +40 °C

Recommendations

For best coverage, install at a height of 2.5 m in an open area. Adjust the time delay and twilight threshold according to the specific application to avoid unnecessary switching.
