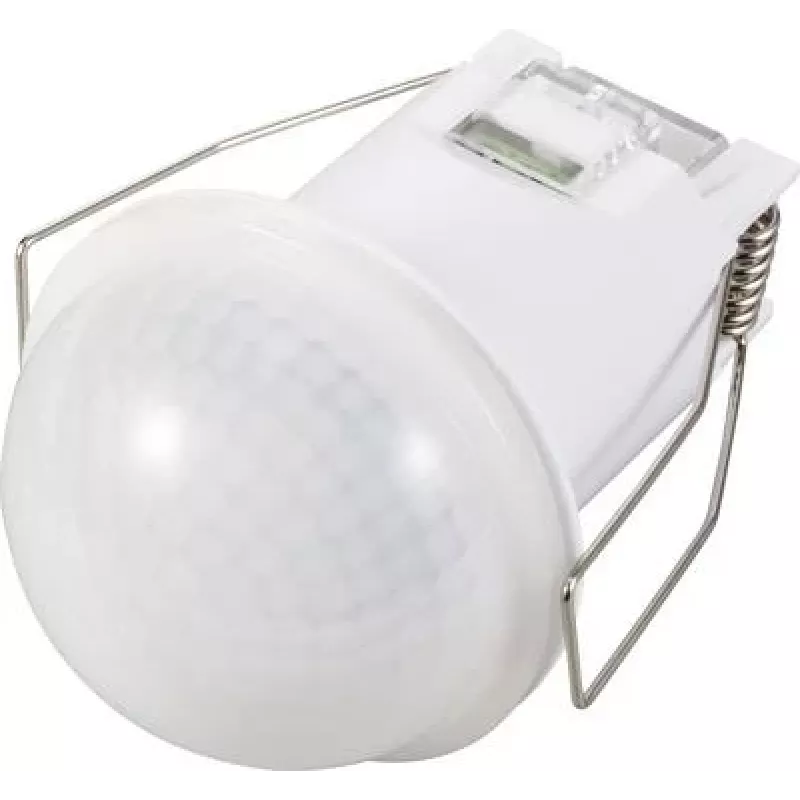

Sygonix SY-6733032 detector de movimiento PIR 360° empotrable en techo, relé de 230 V, 2000 W, alcance 6 m, blanco

Detect motion in a full 360° circle with this flush-mount ceiling sensor, switching up to 2000 W of resistive load via its built-in relay. The 6-metre detection range at a 2.4 m mounting height makes it ideal for hallways, offices, and utility rooms.

Overview

The Sygonix SY-6733032 is a passive infrared (PIR) motion sensor designed for flush mounting in ceilings. It operates on 230 V AC and provides a relay output rated at 10 A, supporting up to 2000 W for resistive loads and 1000 W for LED or fluorescent lighting. The sensor offers adjustable time delay from 10 seconds to 15 minutes and light sensitivity from 3 to 2000 lux, allowing customisation for various environments.

What stands out

• 360° detection angle for complete coverage
• Flush-mount design with only 52 mm installation depth
• Relay switching up to 2000 W resistive load
• Wide light sensitivity range: 3–2000 lux
• Time delay adjustable from 10 seconds to 15 minutes
• Low standby power consumption of 0.5 W

Technical details

• Detection angle: 360°
• Sensor type: Passive Infrared (PIR)
• Mounting type: Ceiling, flush-mount
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2000 W
• Max. switching capacity (LED/fluorescent): 1000 W
• Switching current: 10 A
• Detection range: 6 m at 2.4 m installation height
• Recommended installation height: 2.2–4 m
• Time setting range: 10 s – 15 min
• Light sensitivity range: 3–2000 lux
• Standby power consumption: 0.5 W
• Operating temperature: -20 °C to +40 °C
• Housing material: Polycarbonate (PC)
• International Protection: IP20
• Outer diameter: 76 mm
• Installation depth: 52 mm
• Mounting hole diameter: 65 mm

Our verdict

A reliable 360° ceiling motion sensor with robust relay switching and flexible settings, perfect for automating lighting in indoor spaces.
