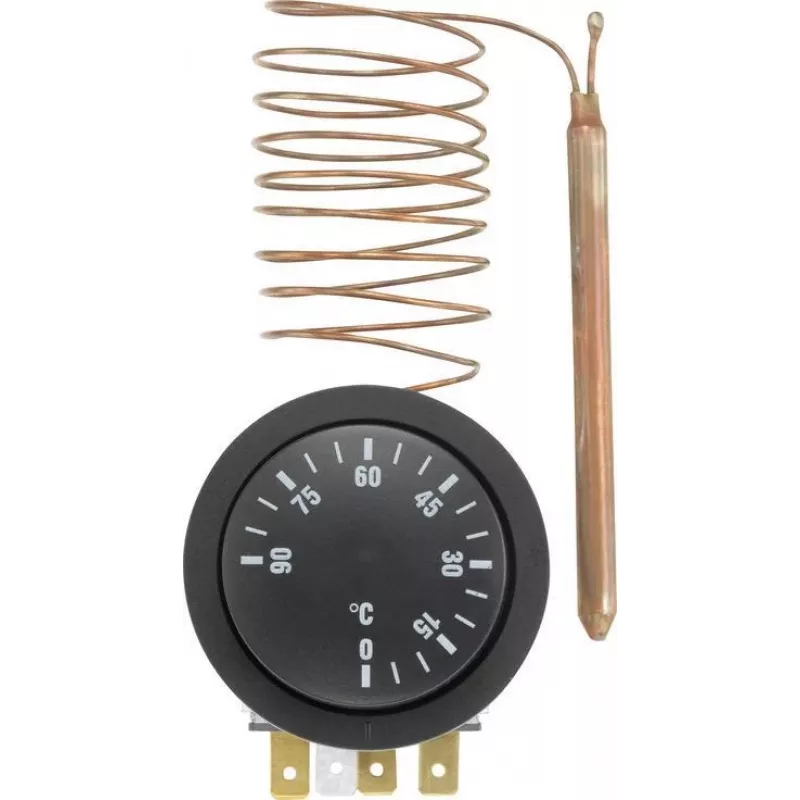

SYGONIX Termostato de montaje empotrado 0-90°C, contacto conmutado, sensor capilar, 10A/250V AC, montaje en panel (SY-5045296)

With a switching capacity of 10 A at 250 V AC for resistive loads, the SYGONIX built-in thermostat controls temperatures from 0 to 90 °C with a changeover contact and a 1000 mm capillary sensor.

Overview

The SYGONIX SY-5045296 is a panel-mount thermostat for heating, ventilation, and air conditioning systems. It uses a capillary sensor with a 6 mm diameter and 1000 mm length to regulate temperature. The switching differential is approximately 5 K, and the contact is a changeover (SPDT) type. Electrical connection is via screw terminals, and the housing is made of plastic.

What stands out

• Wide temperature control range from 0 to 90 °C
• High switching capacity: 10 A resistive at 250 V AC
• Changeover contact for flexible control
• Long 1 m capillary sensor for remote sensing
• Panel mounting for built-in installation

Technical details

• Temperature control range: 0 - 90 °C
• Switching differential: approx. 5 K
• Switching capacity (resistive): 10 A at 250 V AC
• Switching capacity (inductive): 2.5 A at 250 V AC
• Contact type: changeover (SPDT)
• Sensor type: capillary sensor
• Capillary length: 1000 mm
• Sensor diameter: 6 mm
• Mounting type: panel mounting / built-in
• Electrical connection: screw terminals
• Housing material: plastic
• Operating voltage: 250 V AC
• Application: HVAC
• Max. ambient temperature: 70 °C
• Min. ambient temperature: -10 °C

Our verdict

A reliable built-in thermostat for HVAC applications, offering precise control and robust switching capacity.
