Synergy 21 caja compacta FTTH preensamblada 2xSC/APC a extremo abierto 60m 9/125µm G.657.A2

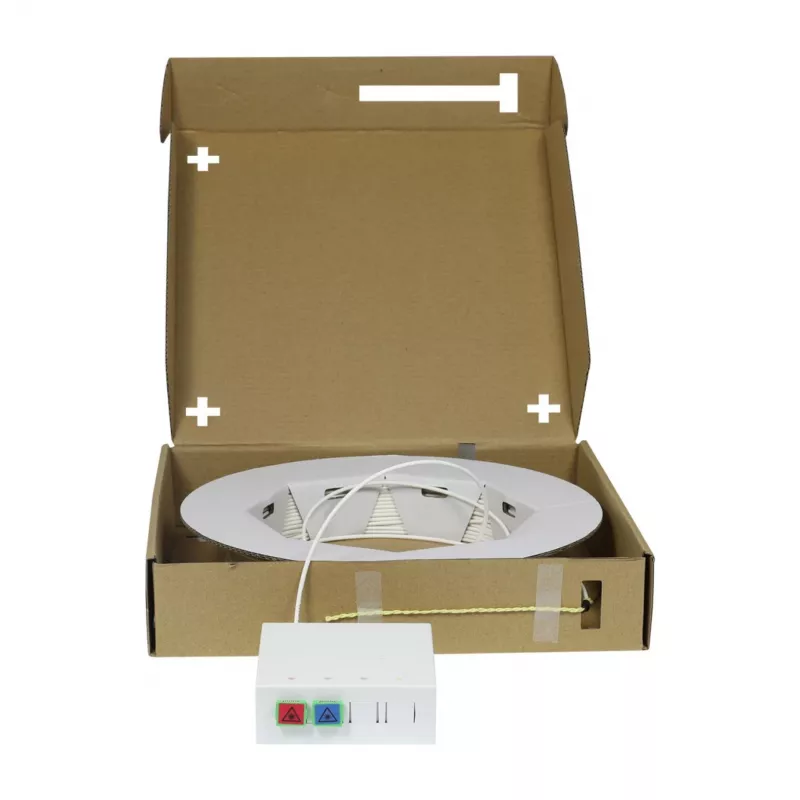

The Synergy 21 FTTH Compact Box is a pre-assembled fiber optic termination solution designed for Fiber-to-the-Home (FTTH) installations. This unit features a 60-meter single-mode cable with 2xSC/APC connectors on one end and an open (unterminated) end on the other, providing flexibility for direct splicing or connectorization. The cable complies with ITU-T G.657.A2 bend-insensitive standard, ensuring reliable performance even in tight bends.

Advantages

Pre-assembled and tested for quick deployment, reducing installation time and on-site termination errors. The compact wall-mountable design saves space and simplifies cable management. Low smoke zero halogen (LSZH) jacket enhances safety in residential and commercial environments.

Suitable for

• FTTH (Fiber-to-the-Home) drop cables
• Indoor fiber optic distribution
• Last-mile fiber connectivity
• Wall-mounted termination points

Key specifications

• Product Type: FTTH Compact Box / Fiber Optic Termination Box
• Fiber Type: Single-mode (OS2)
• Fiber Standard: ITU-T G.657.A2 (Bend-insensitive)
• Core/Cladding Diameter: 9/125 µm
• Cable Length: 60 m
• Connector End 1: 2x SC/APC
• Connector End 2: Open End (Unterminated)
• Number of Fibers: 2
• Insertion Loss (SC/APC): ≤ 0.3 dB typical
• Return Loss (SC/APC): ≥ 60 dB typical
• Operating Temperature: -40°C to +85°C
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Mounting: Wall-mountable

Recommendations

For optimal performance, ensure proper cable routing with minimum bend radius as per G.657.A2 guidelines. Suitable for use with standard FTTH splice closures and patch panels.
