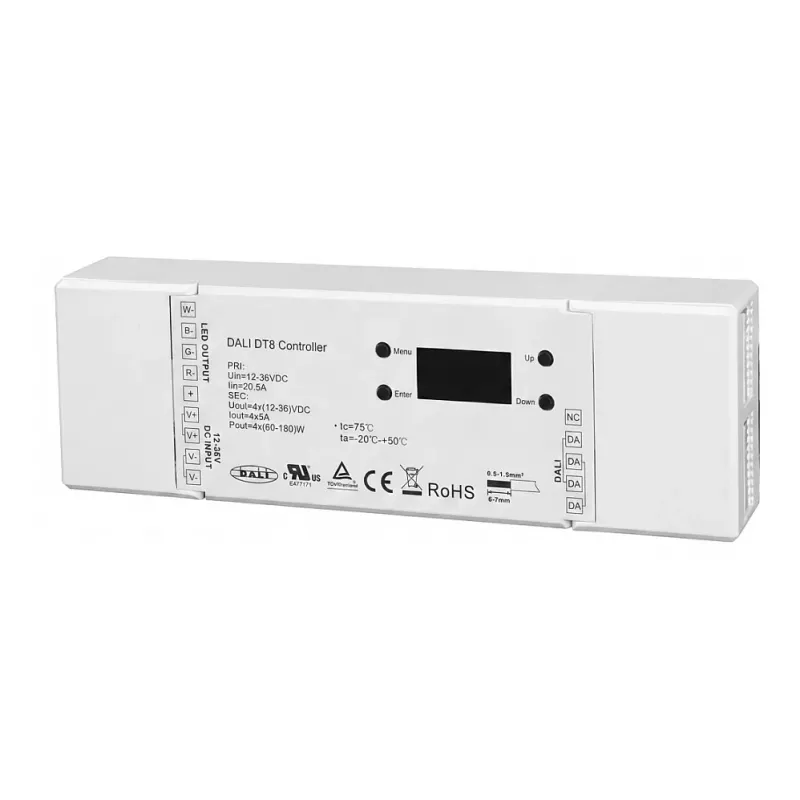

Synergy 21 Controlador LED Serie EOS 07 DALI DT8 RGB/W OLED

The Synergy 21 LED Serie EOS 07 DALI Controller DT8 RGB/W OLED Controller is a high-end control interface for professional lighting systems. Designed for DALI DT8 networks, it enables precise control of RGBW LED fixtures, including dimming, color tuning, and scene management. The intuitive OLED display and rotary knob with push function provide easy navigation and configuration.

Advantages

Full DALI DT8 compliance ensures compatibility with a wide range of LED drivers. The OLED display offers clear visual feedback, while the flush-mount design integrates seamlessly into standard EU wall boxes. Supports up to 4 scenes for quick recall of lighting presets.

Suitable for

• Commercial lighting control in offices, retail, and hospitality
• Residential smart lighting systems
• DALI DT8 RGBW LED installations

Key specifications

• Control Protocol: DALI (Digital Addressable Lighting Interface)
• DALI Device Type: DT8 (Colour Type 8)
• Controlled Channels: RGBW (Red, Green, Blue, White)
• Display Type: OLED Display
• Control Interface: Rotary Knob with Push Function, Touch Buttons
• Functions: Dimming, RGB Color Control, Tunable White (CCT), Scene Recall
• Number of Scenes: Up to 4
• Power Supply: DALI Bus Powered
• DALI Bus Current Consumption: 8 mA
• Operating Voltage: DALI Bus (12-22.5V DC)
• Mounting Type: Flush-mount (Standard EU Wall Box)
• Operating Temperature: -20°C to +50°C
• Protection Class: IP20
• Housing Material: Glass Front Panel, Plastic Housing
• Compatibility: DALI DT8 LED Drivers
• Dimming Range: 0.1% - 100%
• Color Control Method: DALI DT8 (e.g., HSI, xy coordinates)

Recommendations

For optimal performance, pair with DALI DT8-compatible LED drivers. Ensure proper bus wiring and configuration. Suitable for professional installation by qualified electricians.
