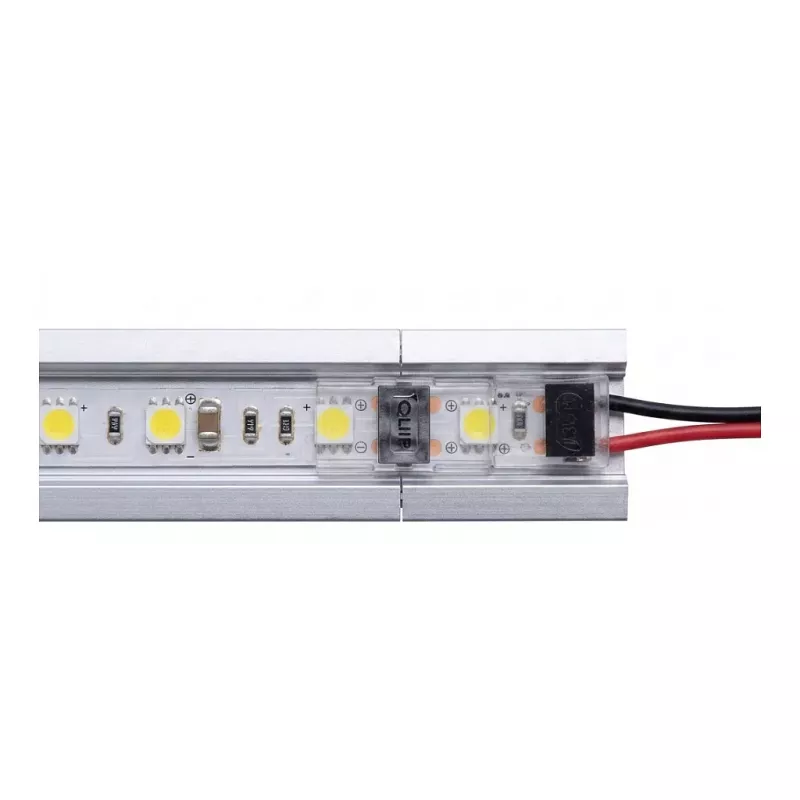

Synergy 21 LED FLEX Strip Easy Connect conector MINI strip-to-strip 10mm

The Synergy 21 LED FLEX Strip Easy Connect MINI Strip-to-Strip Joint 10mm is a solderless connector designed for extending Synergy 21 Easy Connect MINI LED strips. It enables quick, tool-free connections for continuous lighting runs.

Advantages

Tool-free installation saves time and effort. The clip-on design ensures a secure, reliable connection without soldering. Compact and durable construction with flame-retardant PC material.

Suitable for

• Extending Synergy 21 Easy Connect MINI LED strips
• Creating continuous runs of LED strip lighting
• Indoor applications requiring IP20 protection

Key specifications

• Product Type: LED Strip Connector
• Connector Type: Strip-to-Strip Joint
• System Compatibility: Synergy 21 Easy Connect MINI
• LED Strip Width Compatibility: 10 mm
• Connection Method: Solderless, Clip-on
• Number of Pins/Channels: 4-pin
• Material: High-grade Plastic (PC)
• Color: White / Transparent
• Voltage Rating: 12V / 24V DC
• Current Rating: Max. 5A
• IP Rating: IP20 (Indoor Use)
• Operating Temperature: -20°C to +60°C
• Conductor Material: Tinned Copper
• Insulation Material: Flame-retardant PC
• Certifications: CE, RoHS

Recommendations

Ensure the LED strip width is 10mm for proper fit. For outdoor use, additional waterproofing may be required.
