Synergy 21 LED Tira Flex COB RGB-W Pixel DC24V WS2814F IP67 2m

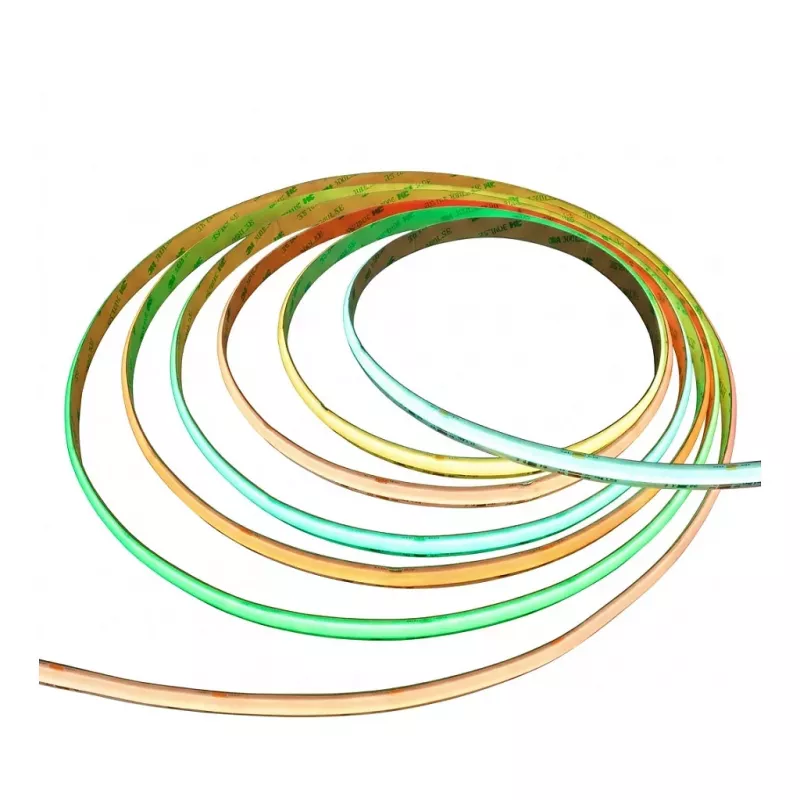

The Synergy 21 LED Flex Strip COB RGB-W is a high-performance, individually addressable LED strip designed for professional lighting applications. Featuring Chip-on-Board (COB) technology, it delivers smooth, uniform light with no visible dots. The strip combines RGB (Red, Green, Blue) with a dedicated White (3000K) channel, allowing for vibrant color mixing and warm white illumination. Operating at DC 24V, it ensures stable performance over the 2-meter length. With an IP67 rating, it is fully waterproof and dustproof, suitable for both indoor and outdoor use. The WS2814F control IC enables pixel-level control, compatible with standard SPI-like protocols (WS2811/WS2812B).

Advantages

COB technology provides seamless lighting without hotspots. Individual addressability allows dynamic effects and precise color control. IP67 protection ensures durability in harsh environments. High LED density (480 LEDs/m) offers bright, even illumination. Easy to cut every 50mm for custom lengths.

Suitable for

• Architectural accent lighting
• Stage and event decoration
• Signage and channel letters
• Outdoor landscape lighting
• DIY projects and custom installations

Key specifications

• LED Technology: COB (Chip-on-Board)
• Color: RGB-W (RGB + 3000K White)
• Control IC: WS2814F
• Operating Voltage: DC 24V
• Length: 2 meters
• IP Rating: IP67
• LED Density: 480 LEDs/m
• Power Consumption: 15W/m (30W total)
• Beam Angle: 180°
• Cuttable: Every 50mm
• Dimmable: Yes (via digital controller)
• Operating Temperature: -20°C to +50°C
• Lifespan: >50,000 hours
• Number of Pixels: 60 pixels/m (120 total)
• Material: Flexible PCB, Silicone Encapsulation
• Connector: JST SM 3-pin (Data, VCC, GND)
• CRI: >80 (white component)

Recommendations

For best results, use with a compatible DC 24V power supply and a digital LED controller (e.g., SPI controller). Ensure proper heat dissipation when mounting on non-flammable surfaces. Not suitable for direct burial or submersion beyond IP67 rating.
