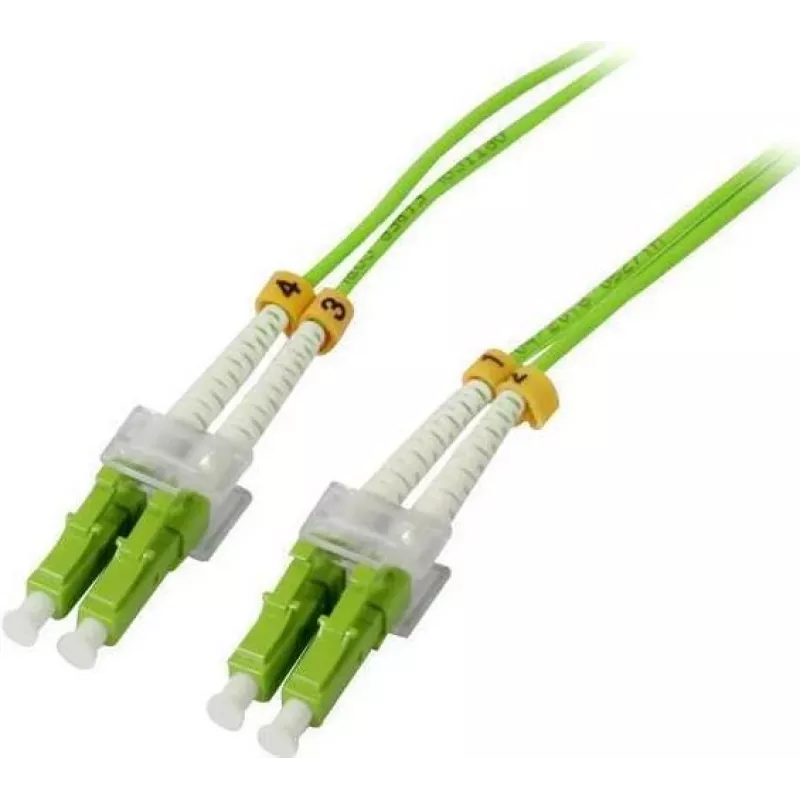

SYNERGY21 Cable de conexión de fibra óptica 40 m LC-LC dúplex OM5 50/125 µm LSZH verde lima

The SYNERGY21 S215506 is a high-performance fiber optic patch cable designed for demanding data center, LAN, and SAN environments. Featuring a 40-meter length with LC duplex connectors on both ends, this OM5 wideband multimode fiber (WBMMF) cable supports high-speed data transmission up to 400 Gbps over specified distances. The 50/125 µm core/cladding diameter and 2 mm outer diameter per simplex strand ensure flexibility and easy installation. With a lime green LSZH (Low Smoke Zero Halogen) jacket, it provides safety and durability in confined spaces.

Advantages

OM5 fiber enables multiple wavelengths (850nm and 953nm) for increased bandwidth and future-proofing. The LSZH jacket reduces toxic smoke in case of fire, making it ideal for indoor installations. Low insertion loss (≤0.3 dB) and high return loss (≥30 dB) ensure reliable signal integrity.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• High-speed computing environments

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode (OM5)
• Core/Cladding: 50/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 40 m
• Number of Fibers: 2 (Duplex)
• Cable Outer Diameter: 2 mm (per simplex)
• Jacket Color: Lime Green
• Jacket Material: LSZH
• Connector Polish: UPC
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥30 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC duplex interfaces and supports OM5 applications.
