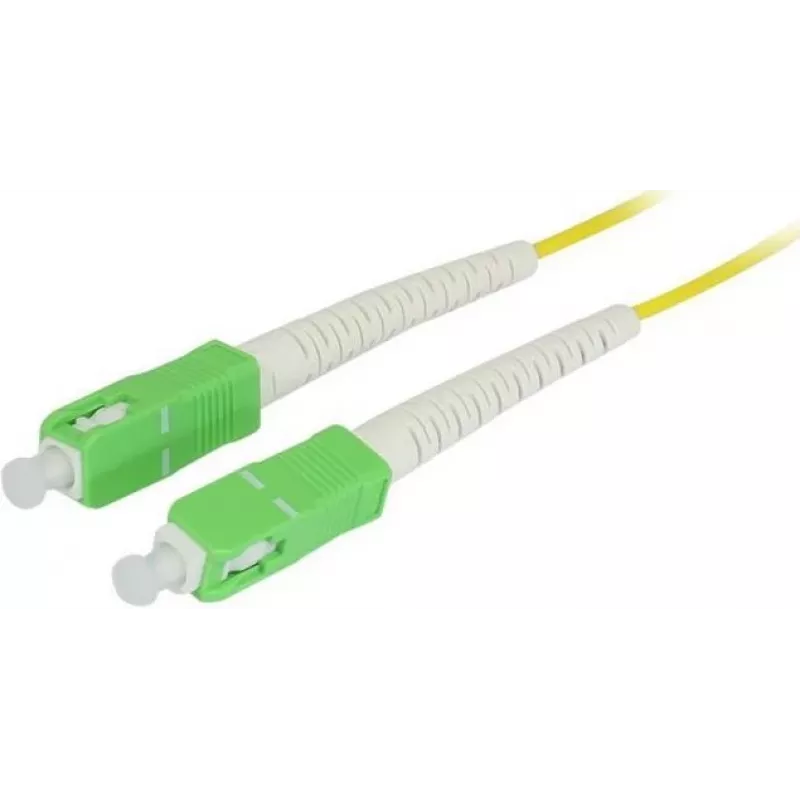

SYNERGY21 Cable de fibra óptica 7,5m SC/APC-SC/APC OS2 G.657.A2 9/125μm Simplex 2mm

The SYNERGY21 S215716 is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in FTTH, LAN, and telecommunication networks. With a length of 7.5 meters and SC/APC connectors on both ends, this simplex cable ensures low insertion loss and high return loss. The 9/125 μm core/cladding and OS2 classification make it ideal for long-distance and high-bandwidth applications. The cable features a 2 mm outer diameter, bend-insensitive G.657.A2 fiber, and flexible bend protection sleeves for durability in tight installations.

Advantages

This patch cable offers excellent signal integrity with APC polish to minimize back reflection. The bend-insensitive fiber allows for tight bends without performance degradation, simplifying installation in confined spaces. The flexible bend protection sleeves at the connector ends prevent kinking and extend cable life.

Suitable for

• FTTH (Fiber to the Home) installations
• Data center and server room connections
• Telecommunication networks
• LAN and WAN infrastructure
• Test and measurement equipment

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-Mode
• Fiber Class: OS2
• Core Diameter: 9 μm
• Cladding Diameter: 125 μm
• ITU-T Standard: G.657.A2
• Number of Fibers: 1 (Simplex)
• Connector Type: SC/APC to SC/APC
• Connector Polish: APC (Angled Physical Contact)
• Cable Length: 7.5 m
• Cable Outer Diameter: 2 mm
• Cable Construction: Simplex
• Special Features: Flexible Bend Protection Sleeve

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splice closures. This cable is compatible with all standard SC/APC interfaces.
