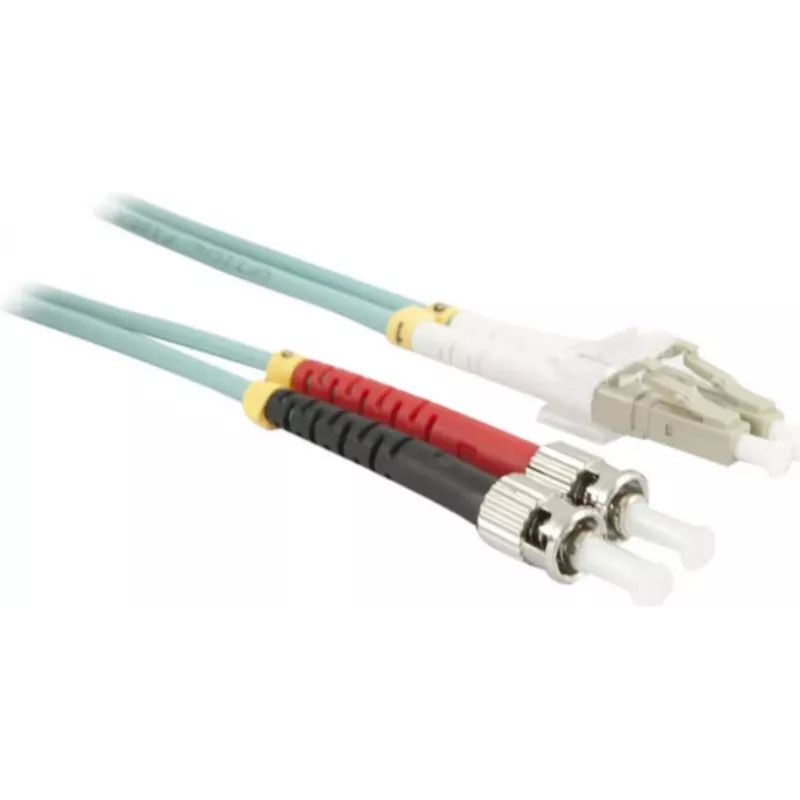

SYNERGY21 cable patch de fibra óptica OM3 LC-ST dúplex multimodo, 50/125µm, LSZH, azul S216286

Fiber optic patch cable for high-speed multimode networking, delivering 10 Gbps over 300 meters with OM3 laser-optimized fiber. This duplex cable features LC and ST connectors, ideal for data centers, LAN backbones, and SAN environments.

Advantages

OM3 fiber supports 10 Gbps Ethernet up to 300 meters and is compatible with 40/100 Gbps for shorter links, future-proofing your infrastructure. The LSZH jacket emits low smoke and zero halogen, enhancing safety in enclosed spaces. Duplex construction with LC and ST connectors ensures reliable, low-loss connections.

Suitable for

• Data center interconnects and server-to-switch links
• Enterprise LAN backbone cabling
• Storage area networks (SAN) and Fibre Channel
• FTTx and high-density patching environments

Key specifications

• Length: 2.0 m
• Fiber type: Multimode OM3, 50/125 µm core/cladding
• Connectors: LC to ST, duplex
• Jacket: LSZH (Low Smoke Zero Halogen), blue
• Insertion loss: ≤ 0.3 dB typical
• Return loss: ≥ 30 dB typical
• Operating temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173

Recommendations

For reliable 10G multimode links, pair with OM3-compatible transceivers and maintain proper bend radius during installation to preserve signal integrity.
