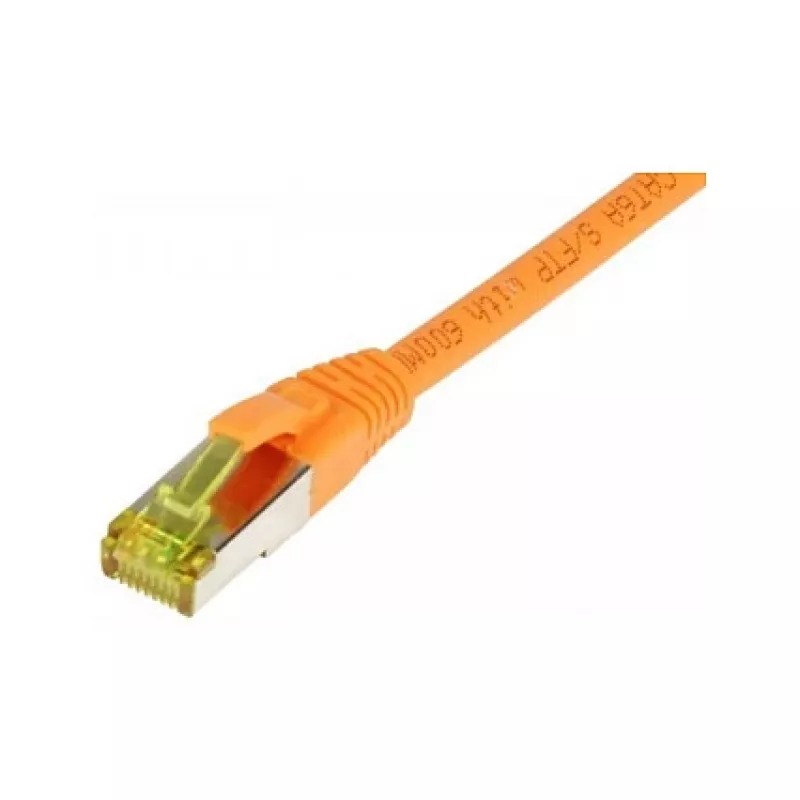

Cable patch Synergy 21 S217687 Cat6A S/FTP, 1m, Naranja, LSZH, 500MHz, 10Gbps

High-performance Cat6A patch cable engineered for 10 Gigabit Ethernet, delivering 500 MHz bandwidth with S/FTP shielding to ensure signal integrity in dense network environments. The 1-meter orange cable features a flexible TPE/LSZH jacket and stranded AWG26 conductors, built on a Cat7 raw cable for superior headroom.

Advantages

This cable exceeds Cat6A standards by utilizing a Cat7 raw cable, providing exceptional crosstalk resistance and future-proof performance. The S/FTP construction (shielded pairs plus overall braid) offers maximum protection against EMI/RFI, while the LSZH jacket emits low smoke and zero halogen in case of fire, enhancing safety. The Ultraflex TPE material ensures easy routing in tight spaces without kinking, and the stranded conductors allow repeated flexing without breakage.

Suitable for

• 10GBASE-T network connections up to 100 meters
• Data centers and server rooms with high-density cabling
• Industrial environments with electromagnetic interference
• Public buildings requiring low-smoke, halogen-free cabling
• PoE applications up to 100W (PoE++)

Key specifications

• Category: Cat6A (500 MHz)
• Shielding: S/FTP (S-STP)
• Length: 1.0 m
• Colour: Orange
• Jacket: TPE/LSZH (Ultraflex)
• Wire gauge: AWG26 stranded
• Raw cable: Cat7
• Connectors: RJ45 male to RJ45 male
• Data rate: 10 Gbps

Recommendations

For reliable 10G links in challenging environments, pair this cable with shielded Cat6A patch panels and equipment. Verify bend radius compliance during installation to maintain performance.
