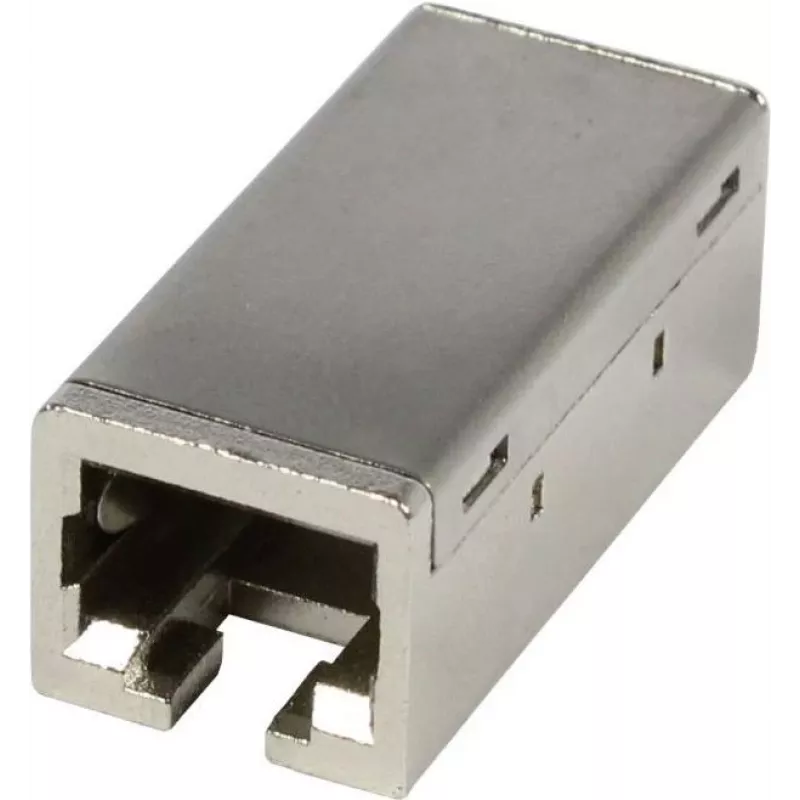

SYNERGY21 CAT6A TP-TP Acoplador RJ45 hembra a hembra Slim Line Fundición de zinc - Red - CAT 6a

The SYNERGY21 CAT6A TP-TP Coupling is a high-performance RJ45 female to female adapter designed for reliable network connections. Manufactured by Synergy 21, this slim line keystone module features a robust zinc die-cast housing, ensuring durability and excellent shielding for CAT6A applications. It supports 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of up to 500 MHz, making it ideal for demanding network environments.

Advantages

This coupling provides a secure and stable connection for network cable extensions or patch panel integration. The slim line design allows for high-density installations, saving space in patch panels and wall outlets. With gold-plated contacts and shielded construction, it ensures minimal signal loss and interference, supporting Power over Ethernet (PoE, PoE+, 4PPoE/PoE++) for powered devices.

Suitable for

• Network cable extension in data centers and server rooms
• Patch panel integration for structured cabling
• Home and office network upgrades to CAT6A
• High-speed data transmission up to 10 Gbps

Key specifications

• Network Standard: CAT6A (Category 6A)
• Connector Type: RJ45 Female to RJ45 Female
• Number of Contacts: 8P8C (8-position, 8-contact)
• Shielding: Shielded (FTP/STP compatible)
• Housing Material: Zinc Die-Cast
• Wiring Configuration: 1:1 Straight-Through
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Design: Slim Line Keystone Module
• Contact Plating: Gold-plated (e.g., 50µm)
• PoE Support: Yes (PoE, PoE+, 4PPoE/PoE++)
• Installation: Snap-in for Keystone Panels/Outlets
• Operating Temperature: -10°C to +60°C
• Certifications: RoHS, CE
• Compatibility: Backward compatible with CAT6, CAT5e, CAT5
• Insertion Cycles: >750
• Insulation Resistance: >500 MΩ
• Dielectric Strength: 1000 V AC (RMS, 60 Hz, 1 min)

Recommendations

For optimal performance, use with CAT6A shielded cables and compatible keystone panels. This coupling is an excellent choice for network professionals seeking reliable and high-speed connections.
