SYNERGY21 FTTH Caja compacta preensamblada, 2xLC/APC -> extremo abierto, 60m, 9/125µm, G.657.A2, 2 fibras, AD=2,2mm

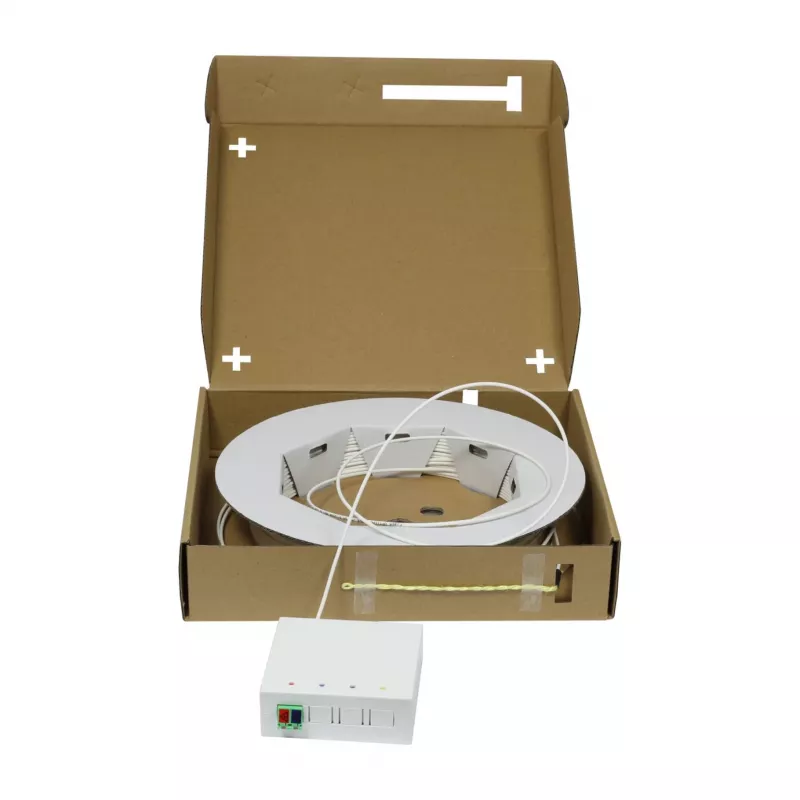

The SYNERGY21 FTTH Compact Box is a pre-assembled fiber optic cable assembly designed for Fiber to the Home (FTTH) installations. It features a compact, ready-to-use design with a 60-meter single-mode cable terminated with 2x LC/APC connectors on one end and an open (unterminated) end on the other, allowing for flexible field termination. The cable meets ITU-T G.657.A2 bend-insensitive standards, ensuring reliable performance even in tight bends.

Advantages

This pre-terminated solution saves installation time and reduces the risk of connection errors. The bend-insensitive fiber (G.657.A2) provides superior durability and signal integrity in confined spaces. The compact box design protects the connectors and simplifies deployment in customer premises.

Suitable for

• FTTH (Fiber to the Home) installations
• Last-mile fiber connections
• Indoor and outdoor applications (with proper protection)
• Connecting optical network terminals (ONTs) to distribution points

Key specifications

• Product Type: FTTH Compact Box
• Fiber Type: Single-mode (9/125 µm)
• Fiber Standard: ITU-T G.657.A2 (Bend-Insensitive)
• Number of Fibers: 2 (Duplex)
• Cable Length: 60 meters
• Connector End A: 2x LC/APC
• Connector End B: Open End (Unterminated)
• Connector Polish: APC (Angled Physical Contact)
• Cable Outer Diameter: 2.2 mm
• Termination: Pre-terminated (vorkonfektioniert)
• Wavelength: 1310nm / 1550nm

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends beyond the cable's minimum bend radius. Use appropriate splice closures or termination boxes for the open end. This product is ideal for quick and reliable FTTH deployments.
