SYNERGY21 LED Flex Strip 5050 - 60 RGB DC24V + RGB-WW (RGB-CCT) One Chip ULS 10m HP IP20

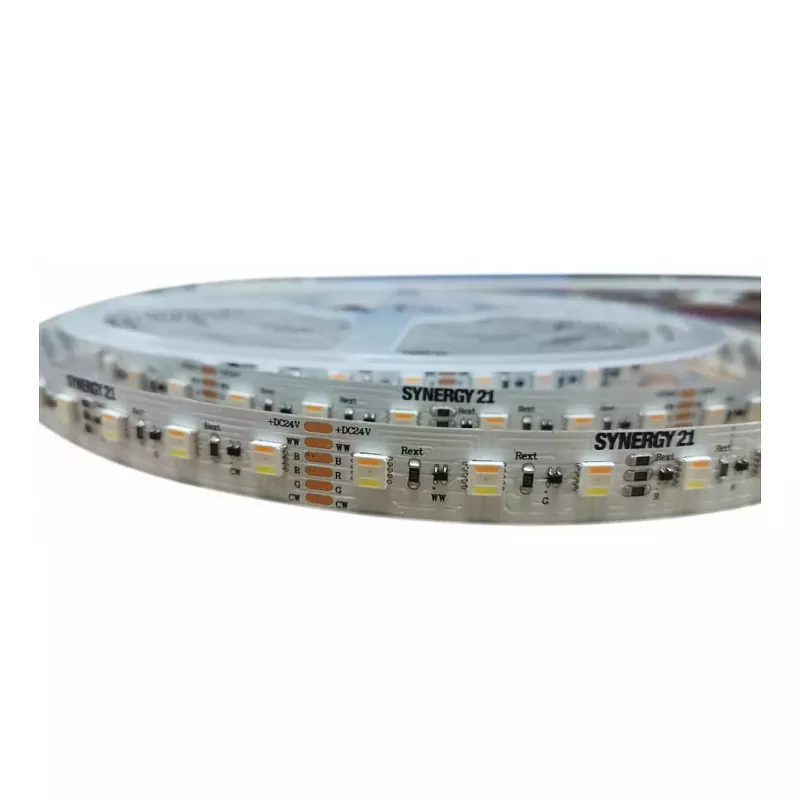

The SYNERGY21 LED Flex Strip 5050 is a high-performance RGB-CCT flexible LED strip designed for professional indoor lighting applications. With 60 LEDs per meter and a total length of 10 meters, this strip delivers vibrant RGB colors and tunable white light (warm white to cool white) from a single SMD 5050 chip. Operating at DC 24V, it offers consistent brightness and is dimmable with a compatible controller. The IP20 rating makes it suitable for dry indoor environments, and the self-adhesive backing ensures easy installation on clean surfaces.

Advantages

This LED strip combines full RGB color capabilities with tunable white light, allowing you to create dynamic lighting scenes or adjust color temperature from warm to cool white. The single-chip RGB-CCT technology ensures uniform color mixing and high efficiency. With a lifespan of over 50,000 hours and a beam angle of 120 degrees, it provides long-lasting, wide illumination. The strip is cuttable every 10 cm (6 LEDs) for custom lengths, and the 5-pin connection (V+, R, G, B, W/C) integrates easily with standard RGB-CCT controllers.

Suitable for

• Indoor accent lighting
• Under-cabinet lighting
• Coove lighting and architectural highlights
• Display and retail lighting
• Home theater and entertainment setups

Key specifications

• Product Type: Flexible LED Strip
• LED Type: SMD 5050
• LED Configuration: RGB-CCT (Red, Green, Blue + Tunable White)
• LEDs per Meter: 60 LEDs/m
• Total Strip Length: 10 meters
• Operating Voltage: DC 24V
• IP Rating: IP20 (Indoor Use)
• Color Capabilities: Full RGB Spectrum + Tunable White (Warm White to Cool White)
• Chip Technology: Single-chip RGB-CCT
• Dimmability: Yes (requires compatible controller)
• Cuttable: Yes (every 10 cm / 6 LEDs)
• Adhesive Backing: Yes (self-adhesive tape)
• Beam Angle: 120 degrees
• Max. Power Consumption per Meter: Approx. 15-20 W/m
• Total Max. Power Consumption: Approx. 150-200 W
• Lifespan: >50,000 hours
• Operating Temperature: -20°C to +45°C
• CRI (Color Rendering Index): >80 (for white light)
• Connection Type: 5-pin (V+, R, G, B, W/C)
• Application Environment: Dry Indoor Locations

Recommendations

For optimal performance, use with a compatible RGB-CCT LED controller and a 24V power supply rated for the total power consumption (minimum 200W). Ensure proper heat dissipation if installed in enclosed spaces. Always follow local electrical codes and safety guidelines.
