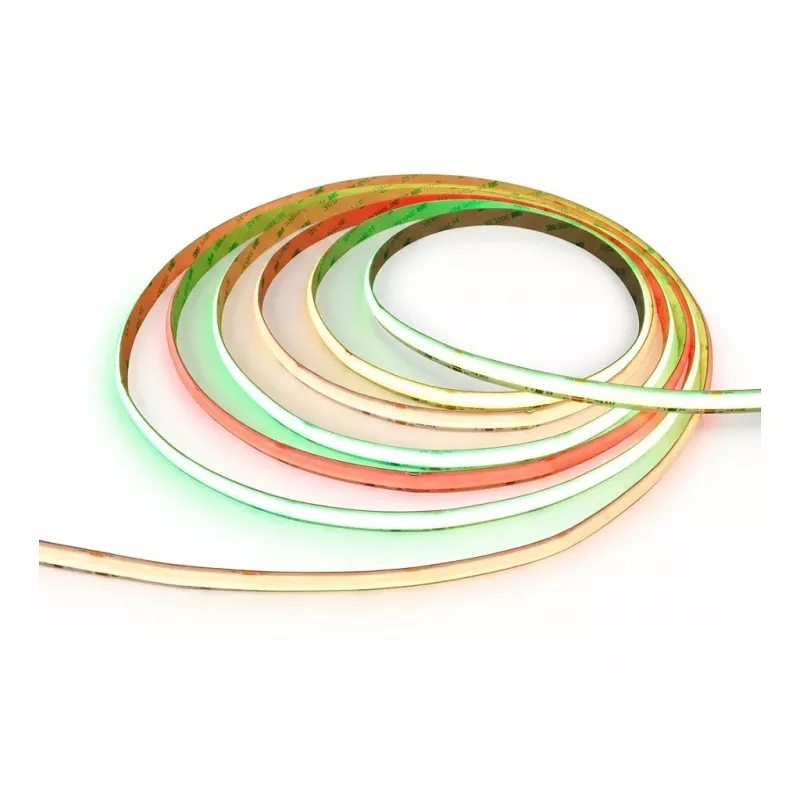

SYNERGY21 LED Tira Flex COB RGB-W Pixel DC24V WS2814F IP20 5m

The SYNERGY21 LED Flex Strip COB RGB-W Pixel is a high-density, addressable LED strip designed for professional lighting applications. Featuring Chip-on-Board (COB) technology, it delivers smooth, continuous light output without visible dots, ideal for accent lighting, architectural contours, and creative installations. With 60 pixels per meter and WS2814F IC control, each pixel can be individually addressed for dynamic RGB-W color effects. Operating at DC 24V, this 5-meter strip offers efficient power distribution and low voltage drop. The IP20 rating makes it suitable for indoor use, while the 3M VHB adhesive backing ensures easy mounting on clean surfaces.

Advantages

COB technology provides uniform, dot-free illumination with a wide 120° beam angle. The RGB-W color type includes a dedicated white channel for true white light, enhancing color mixing and brightness. Pixel addressability allows for intricate animations and effects via compatible controllers. High LED density ensures bright, consistent output up to 1000 lm/meter white. Cuttable at marked intervals for custom lengths, and dimmable with appropriate controllers.

Suitable for

• Architectural lighting (cove, under-cabinet, accent)
• Entertainment venues (bars, clubs, stages)
• Retail displays and signage
• Home automation and smart lighting projects
• Event decoration and festive lighting

Key specifications

• Product Type: LED Flex Strip
• LED Technology: COB (Chip-on-Board)
• Color Type: RGB-W (Red, Green, Blue + White)
• Addressability: Pixel Addressable
• Control IC: WS2814F
• Operating Voltage: DC 24V
• Strip Length: 5 meters
• IP Rating: IP20
• Beam Angle: 120°
• Cuttable Segments: Yes, at marked intervals
• Adhesive Backing: Yes, 3M VHB Tape
• Max Power Consumption: Up to 18W/meter (90W total)
• LED Density: High Density COB
• Pixels per Meter: 60 pixels/meter
• Dimmable: Yes (via compatible controller)
• Lifespan: >50,000 hours
• Operating Temperature: -20°C to +45°C
• Connector Type: Bare Wire Leads (Input/Output)
• Color Rendering Index (CRI): >80
• Luminous Flux (White): Up to 1000 lm/meter

Recommendations

For optimal performance, use with a compatible 24V constant voltage LED driver and a pixel controller supporting WS2814F protocol. Ensure proper heat dissipation if mounted on non-metallic surfaces. Not suitable for outdoor or wet locations.
