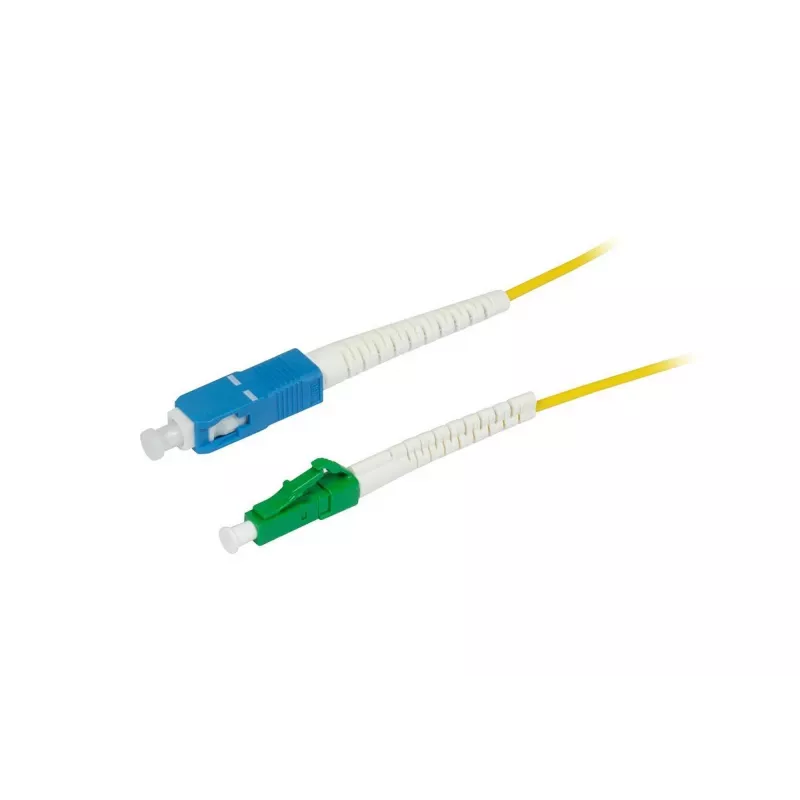

SYNERGY21 S215627V2 Cable de conexión de fibra óptica LC/APC a SC monomodo OS2 de 1m, 9/125µm, G.657.A2, 2mm, protección flexible contra dobleces

In tight fiber routing spaces, standard patch cables can fail at the connector boot, causing signal loss and expensive rework. This SYNERGY21 single-mode patch cable solves that with a flexible bend protection sleeve that absorbs stress at the LC/APC end, preventing sharp bends and maintaining signal integrity. The 1-meter length is ideal for patching between LC/APC and SC ports in fiber distribution frames, ONTs, or test equipment.

Who is it for

Network technicians and installers working with single-mode fiber systems who need a reliable, bend-insensitive patch cord for indoor connections. It suits FTTH installations, data centers, and enterprise networks where LC/APC to SC interfaces are common.

Main features

• Connector A: LC/APC (angled polish for low return loss)
• Connector B: SC (UPC polish)
• Fiber type: 9/125µm single-mode, OS2, ITU-T G.657.A2 bend-insensitive
• Cable diameter: 2.0mm, simplex (1 fiber)
• Length: 1.0 meter
• Flexible bend protection sleeve at LC/APC end for durability
• Indoor-rated cable construction

Specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Single-mode
• Fiber category: OS2
• Core/cladding diameter: 9/125 µm
• ITU-T standard: G.657.A2
• Connector A: LC/APC
• Connector B: SC
• Polish: APC on LC, UPC on SC
• Number of fibers: Simplex
• Outer diameter: 2.0 mm
• Bend insensitive: Yes
• Special feature: Flexible bend protection sleeve
• Application environment: Indoor

Tips

When connecting, ensure the LC/APC connector is clean and properly aligned to avoid damaging the angled ferrule. The bend protection sleeve allows for tighter routing near patch panels without exceeding the minimum bend radius.
