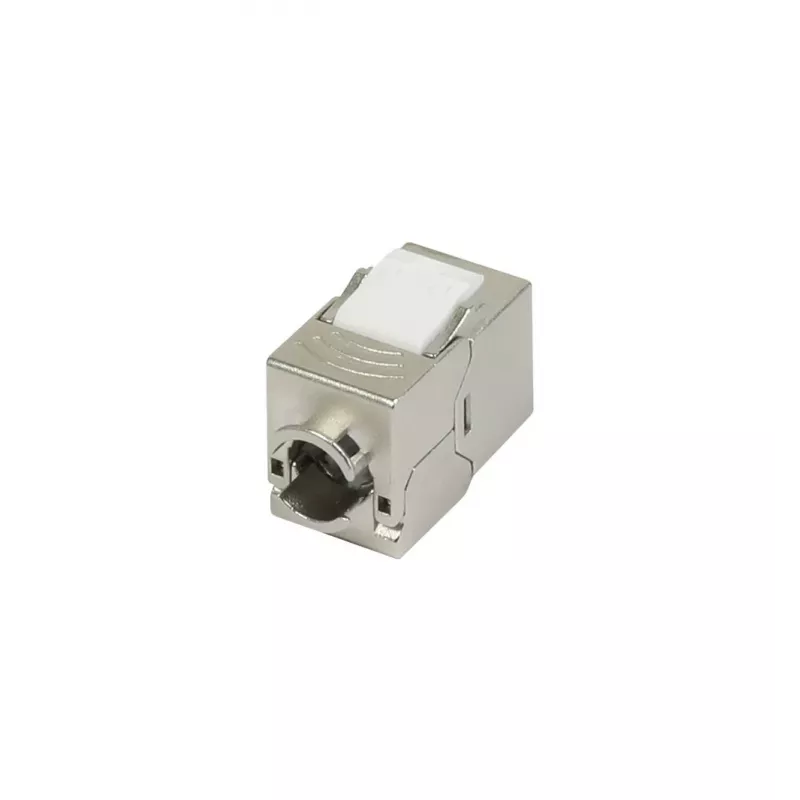

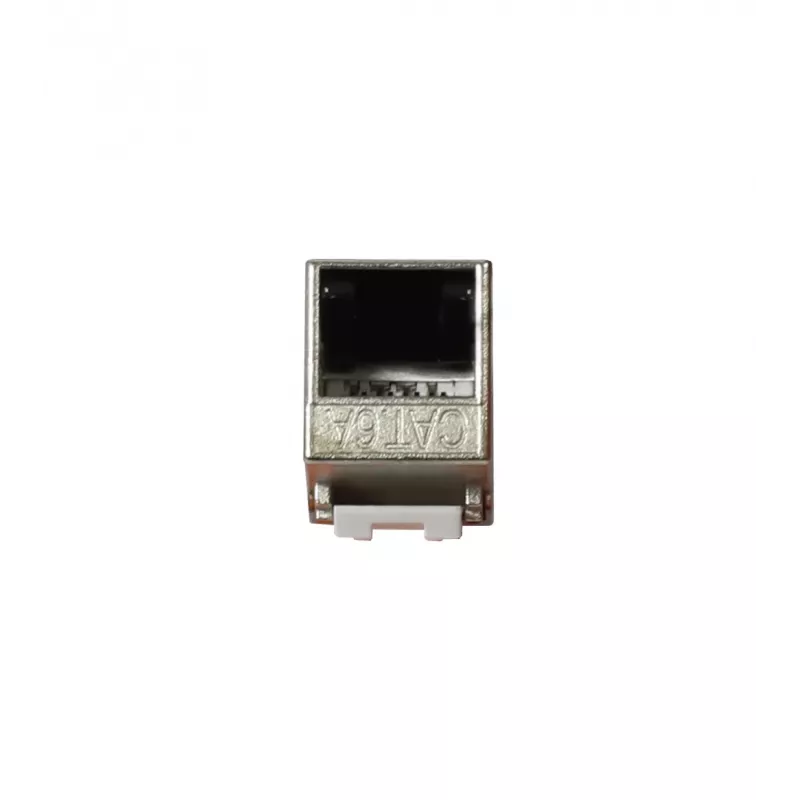

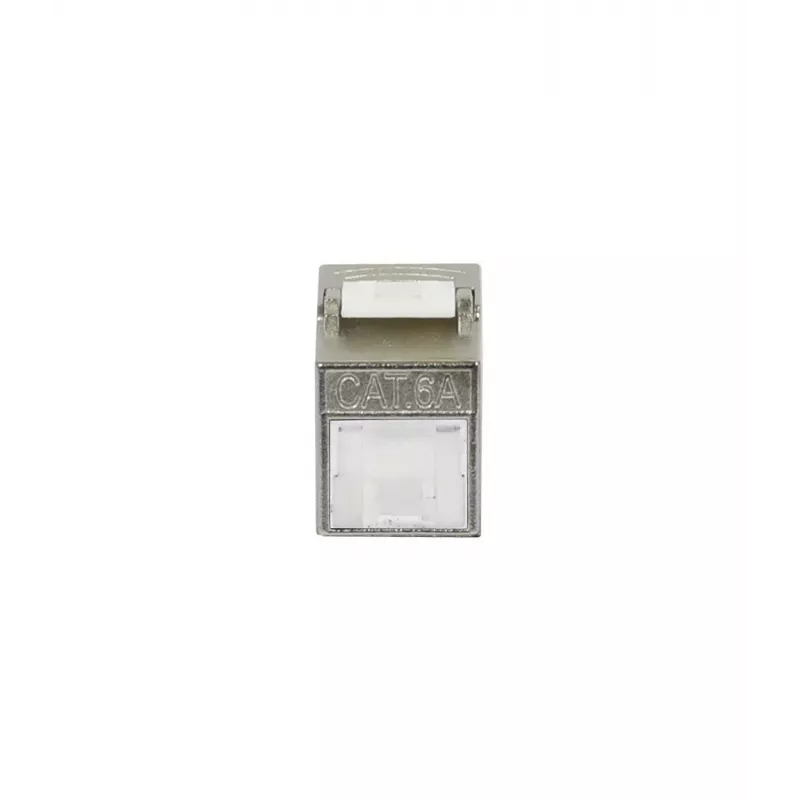

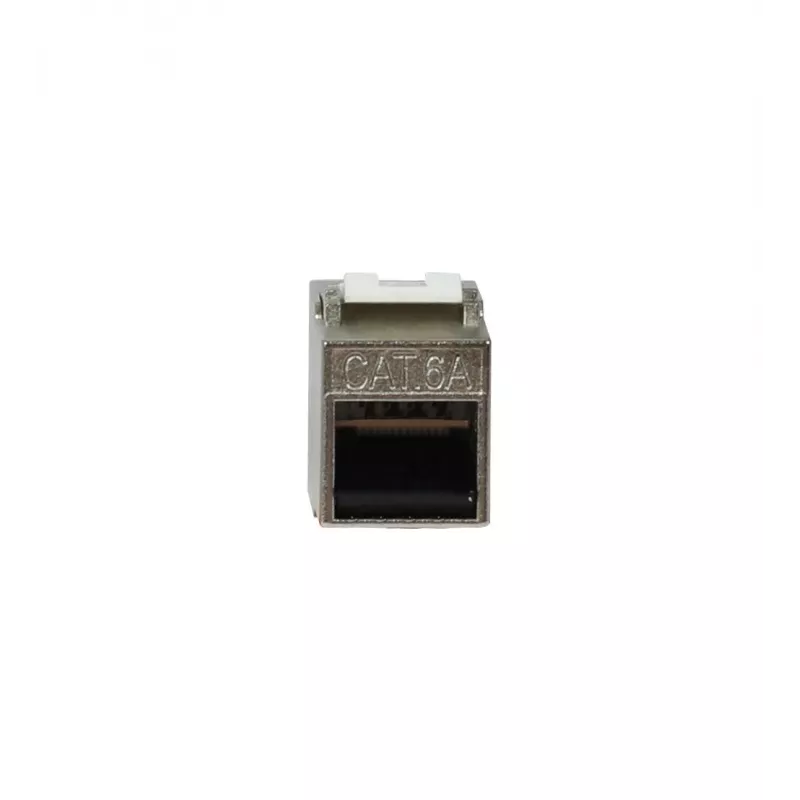

SYNERGY21 S216338V2 Jack Keystone CAT6A blindado, sin herramientas, Slim-line, RJ45, 500 MHz

Network installers and data centre technicians use the SYNERGY21 S216338V2 keystone module to terminate shielded CAT6A cabling in patch panels, wall outlets, and floor boxes. Its slim-line, short design fits into tight spaces and high-density installations where standard modules are too bulky.

Key specifications

• Connector type: RJ45 jack, 8P8C
• Performance: CAT6A (Class EA), 500 MHz bandwidth
• Shielding: Shielded (FTP/STP), zinc die-cast housing
• Termination: Tool-free LSA (punchdown), supports AWG 22-24 solid or stranded conductors
• Wiring: T568A and T568B
• Contact plating: Gold-plated, 50µ"
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Insertion cycles: >750
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Why choose it

The tool-free LSA termination speeds up installation without sacrificing reliability. The shielded zinc die-cast housing protects against electromagnetic interference, making it suitable for noisy industrial environments. The slim-line profile allows for more ports in a given space.

Ideal use cases

• High-density patch panels in data centres
• Shielded office cabling systems
• Industrial Ethernet applications requiring PoE++

Good to know

The module snaps into standard keystone openings and is compatible with SYNERGY21 faceplates and patch panels.
