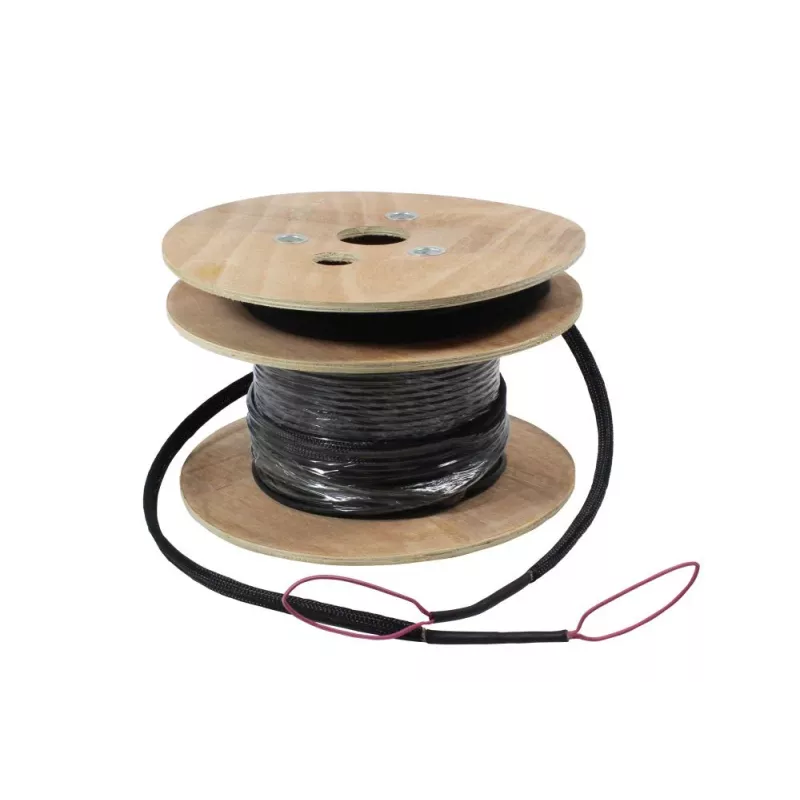

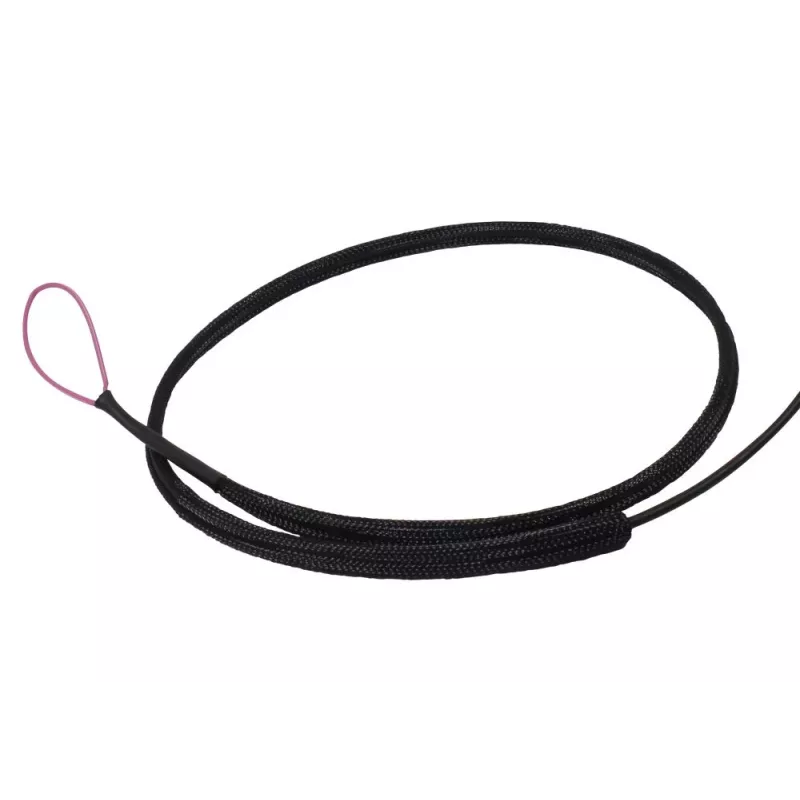

SYNERGY21 S217060V2 Cable troncal de fibra óptica multimodo OM4, 4 fibras, LC/LC, 110m, en bobina

Data center technicians and enterprise network engineers deploying high-speed backbone links will appreciate this 110-meter OM4 multimode fiber optic trunk cable. Pre-terminated with LC connectors on both ends, it provides a fast, reliable connection for 10G, 40G, and 100G Ethernet applications over multimode fiber.

Key specifications

• Fiber type: Multimode OM4, 50/125 µm core/cladding
• Fiber count: 4 fibers
• Connectors: LC to LC
• Length: 110 meters
• Cable construction: U-DQ(ZN)BH, halogen-free and flame-retardant outer sheath
• Strain relief: Non-metallic (aramid yarn)
• Jacket color: Aqua
• Maximum bandwidth: 4700 MHz·km at 850 nm, 500 MHz·km at 1300 nm
• Typical insertion loss: <0.3 dB per connector
• Typical return loss: >20 dB per connector
• Operating temperature: -20°C to +70°C

Why choose it

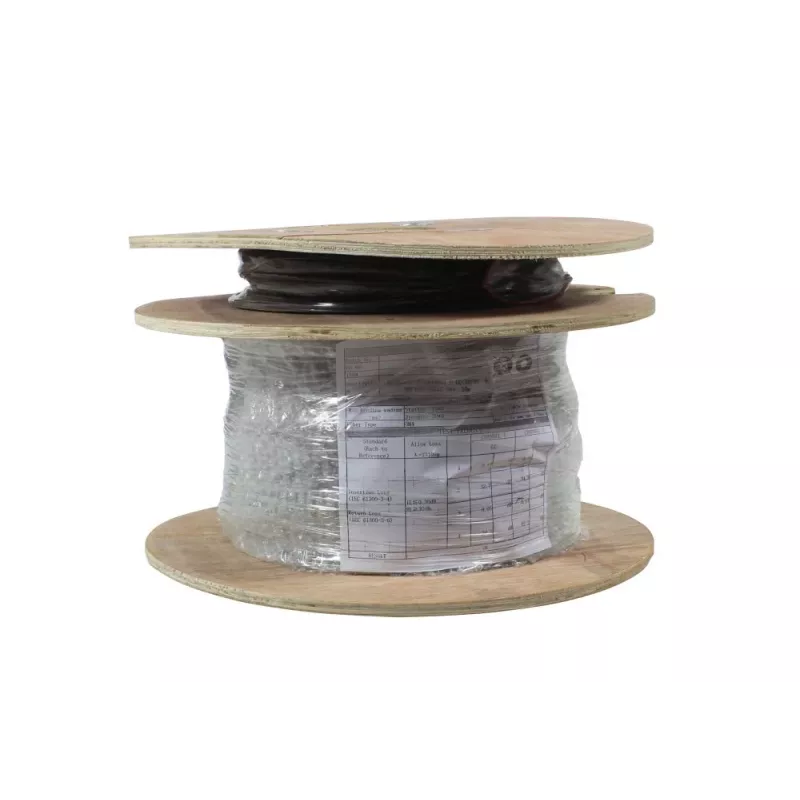

The OM4 grade ensures excellent performance for high-speed data transmission, supporting longer distances at 40G and 100G compared to OM3. The halogen-free, flame-retardant jacket makes it suitable for both indoor and outdoor use, while the drum packaging allows for easy deployment and storage.

Ideal use cases

• Data center backbone cabling
• High-density fiber distribution
• Enterprise network trunk links
• Storage area networks (SAN)

Good to know

This trunk cable is built to meet IEC 60794 and TIA/EIA-568-C.3 standards, ensuring compatibility and reliability in structured cabling systems. The non-metallic strain relief provides durability without adding conductive elements.
