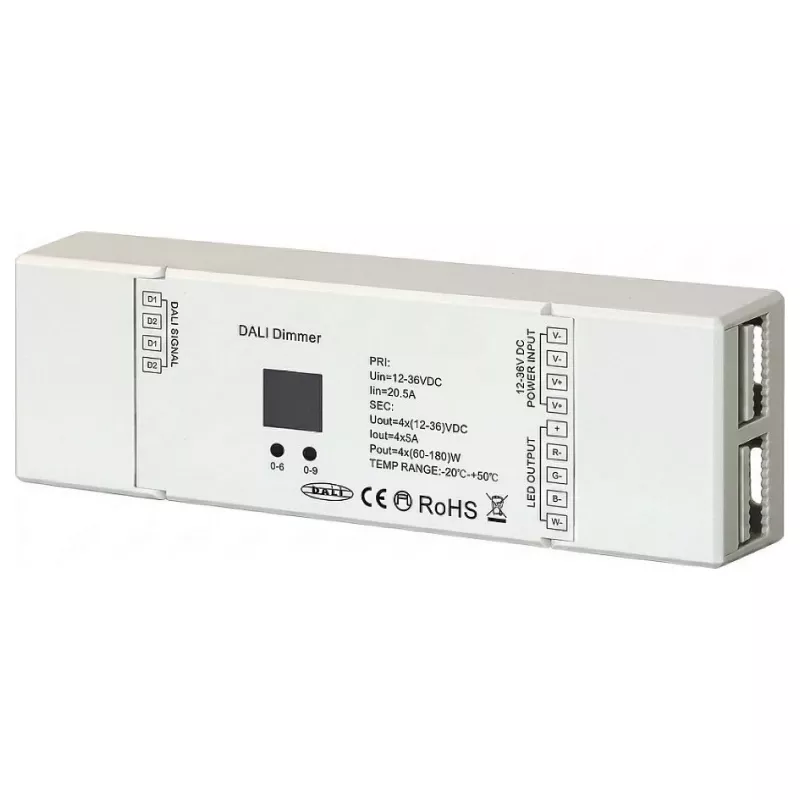

SYNERGY21 serie LED EOS 07 controlador DALI DT8 RGB/RGB-W

The SYNERGY21 LED Serie EOS 07 DALI Controller DT8 RGB/RGB-W is a high-performance constant voltage LED controller designed for professional RGB and RGB-W lighting installations. It supports the DALI standard IEC 62386-209 (DT8) for precise colour control, making it ideal for dynamic lighting scenes in commercial, hospitality, and architectural applications.

Advantages

This controller offers seamless integration with DALI systems, enabling smooth dimming from 0.1% to 100% with a logarithmic curve. With four output channels (RGBW) and a total output current of up to 20A, it can drive large LED installations. The robust protection features (overload, short circuit, over-temperature) ensure reliable operation, while the screw terminals simplify wiring.

Suitable for

• RGB and RGB-W constant voltage LED strips and modules
• Architectural and accent lighting
• Hospitality and retail environments
• Stage and event lighting

Key specifications

• DALI Device Type: DT8 (Colour Control) per IEC 62386-209
• Input Voltage: 12-24V DC
• Output: 4 channels, constant voltage, max 5A per channel (total 20A)
• Max Output Power: 240W (12V) / 480W (24V)
• Dimming Range: 0.1% - 100%
• Protection: Overload, short circuit, over-temperature
• Operating Temperature: -20°C to +50°C
• Housing: Plastic, screw terminals
• Certifications: CE, RoHS

Recommendations

For optimal performance, pair with a compatible DALI master controller and use 12V or 24V constant voltage LED products. Ensure adequate ventilation and do not exceed the maximum load.
