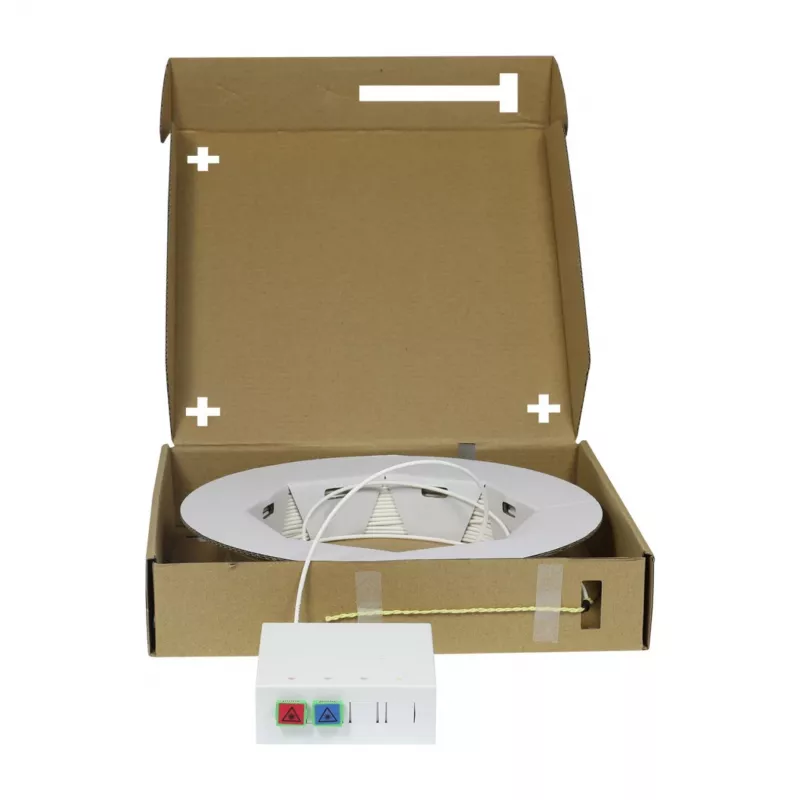

Synergy 21 caja compacta FTTH, premontada, 2xSC/APC -> extremo abierto, 40m, 9/125µm, G.657.A2, 2 fibras, DE=2,2mm

The Synergy 21 FTTH Compact Box is a pre-assembled, high-performance fiber optic termination solution designed for Fiber to the Home (FTTH) applications. This unit features a compact termination box with two SC/APC connectors on one end and an open end on the other, pre-terminated with a 40-meter single-mode fiber cable. The cable is manufactured to G.657.A2 bend-insensitive standards, ensuring reliable signal transmission even in tight installation spaces.

Advantages

This pre-configured solution saves installation time and reduces the risk of field termination errors. The bend-insensitive fiber (G.657.A2) allows for tighter bends without signal loss, making it ideal for residential and small business environments. The SC/APC connectors provide low insertion loss and high return loss, ensuring optimal network performance.

Suitable for

• FTTH (Fiber to the Home) installations
• Fiber optic termination in distribution boxes or wall outlets
• Connecting optical network terminals (ONTs) to fiber distribution networks
• Indoor and protected outdoor applications

Key specifications

• Product Type: FTTH Compact Termination Box
• Fiber Type: Single-mode (SM)
• Fiber Standard: G.657.A2 (Bend-Insensitive)
• Fiber Count: 2 Fibers (Duplex)
• Core/Cladding Diameter: 9/125 µm
• Cable Length: 40 m
• Cable Outer Diameter (OD): 2.2 mm
• Connector Type (Box Side): SC/APC
• Number of Connectors (Box Side): 2
• Connector Polish: APC (Angled Physical Contact)
• Cable End Termination: Open End
• Pre-terminated: Yes
• Application: Fiber to the Home (FTTH)
• Configuration: Pre-assembled / Pre-configured

Recommendations

For optimal performance, ensure that the open end is terminated with compatible connectors or spliced according to your network requirements. This product is designed for indoor use; if outdoor installation is required, protect the cable and connectors from moisture and direct sunlight.
