Synergy 21 carcasa de módulo Keystone de superficie IP66 con argolla para candado, gris claro (RAL 7035) - S216381

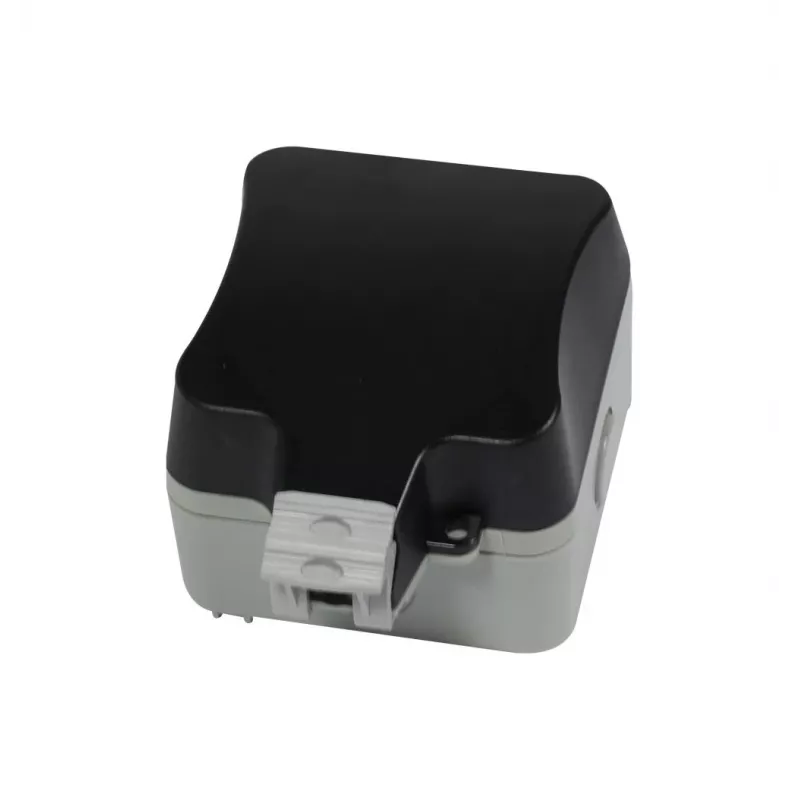

The Synergy 21 S216381 Keystone Module Housing is a robust surface-mount enclosure designed for outdoor and industrial environments. With an IP66 rating, it provides dust-tight and water jet protection, ensuring reliable performance in harsh conditions. The housing features an integrated padlock tab for security and supports standard Keystone modules for flexible network installations.

Advantages

This housing offers exceptional durability and security for Keystone modules. Its IP66 rating protects against dust and powerful water jets, making it ideal for outdoor use. The padlock tab allows for physical security, preventing unauthorized access. Easy snap-in installation simplifies setup, and multiple cable entry options (top, bottom, rear) provide flexibility.

Suitable for

• Outdoor network installations
• Industrial environments
• Security-sensitive applications requiring padlock protection
• Surface-mount Keystone module deployments

Key specifications

• Product Type: Keystone Module Housing
• Mounting Type: Surface Mount
• IP Protection Rating: IP66
• Number of Module Slots: 2

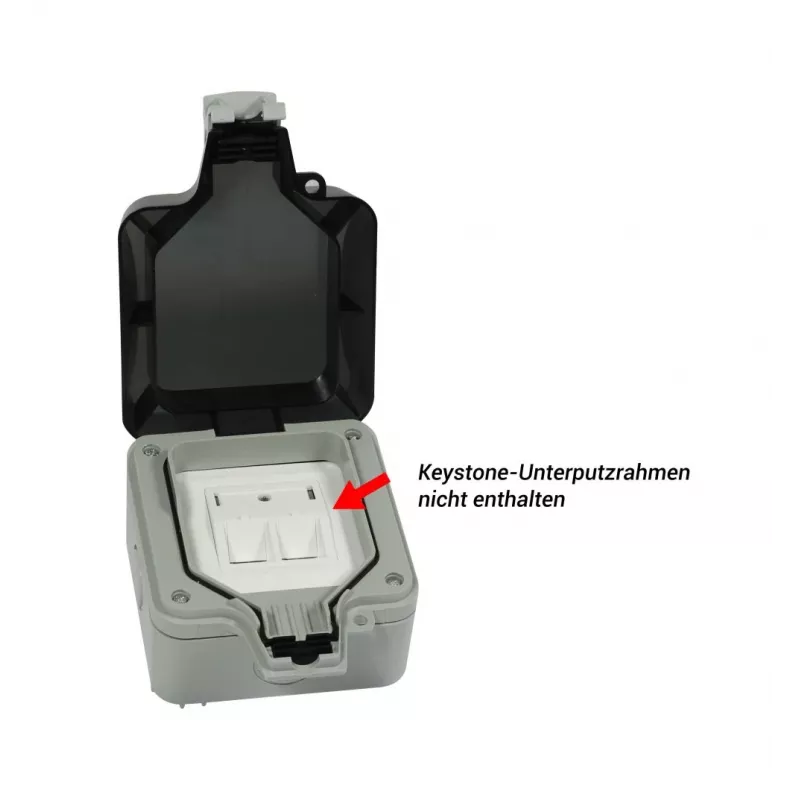

• Module Compatibility: Standard Keystone Modules

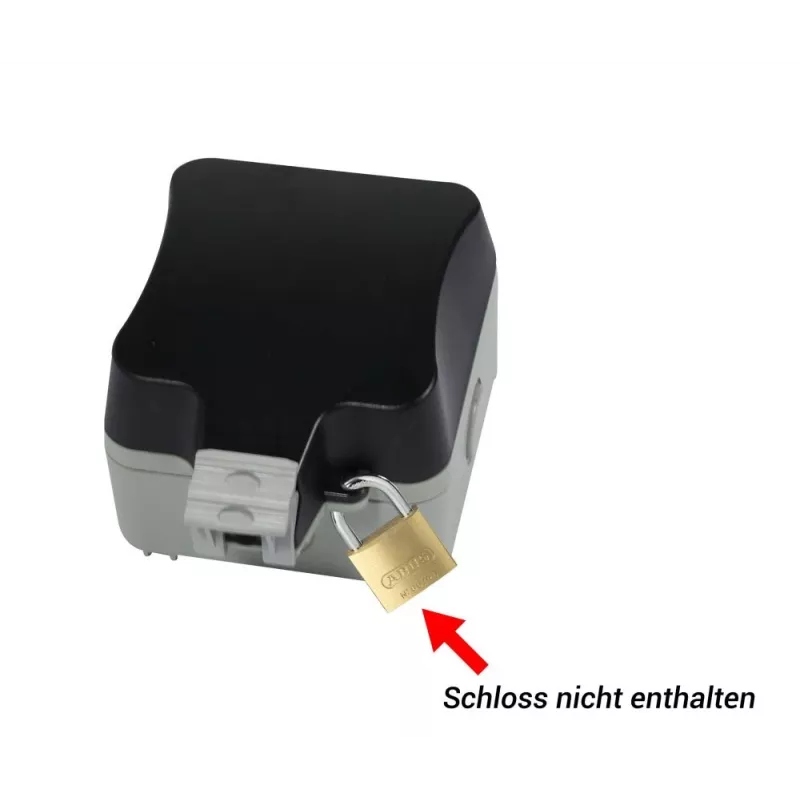

• Security Feature: Integrated Padlock Tab
• Material: ABS Plastic
• Color: Light Grey (RAL 7035)
• Application Environment: Outdoor, Industrial, Harsh Environments
• Dust Protection: Dust-tight
• Water Protection: Protected against powerful water jets

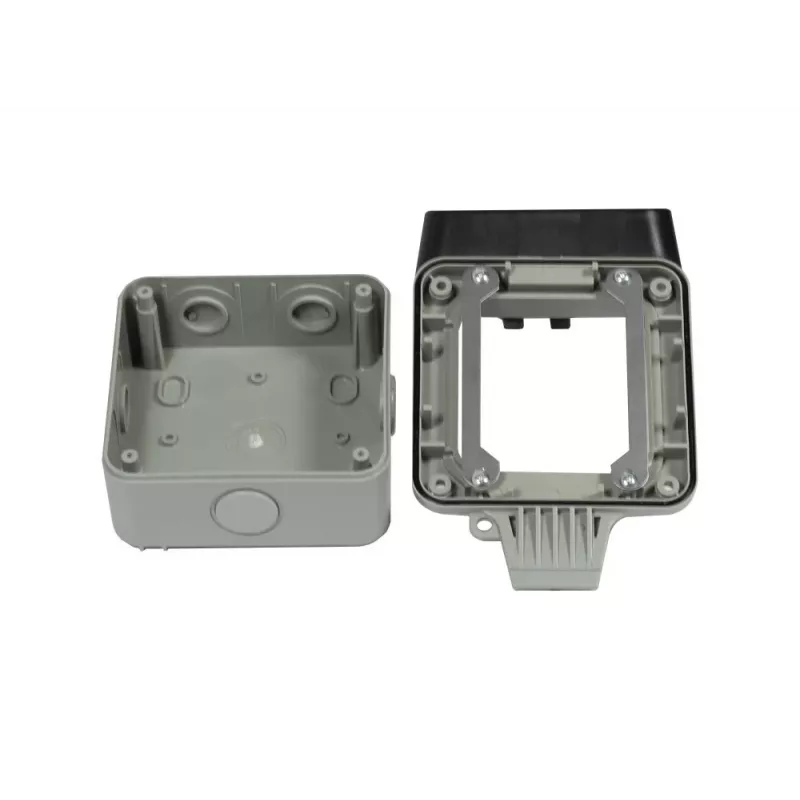

• Cable Entry: Multiple options (top, bottom, rear)
• UV Resistance: Yes
• Operating Temperature: -25°C to +70°C
• Flame Retardancy: Self-extinguishing
• External Dimensions (L x W x H): 70 x 70 x 50 mm

Recommendations

For optimal performance, use with standard Keystone modules and ensure proper cable sealing for outdoor installations. The padlock tab is compatible with standard ring locks (not included).
