Synergy 21 Conector Tira a Cable Easy Connect para Tira LED FLEX 12/14mm IP67 Negro

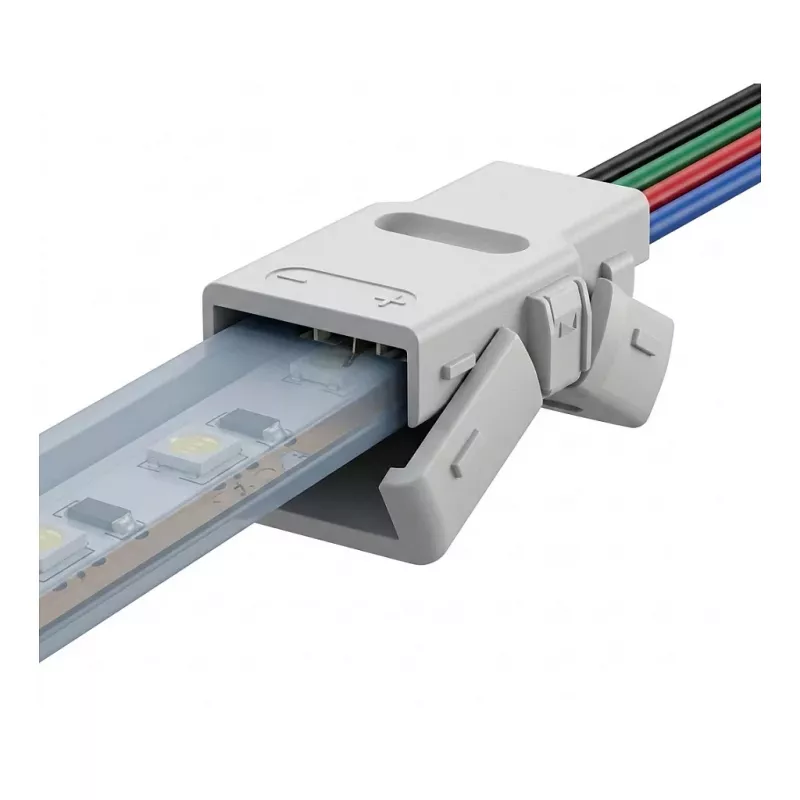

The Synergy 21 LED FLEX Strip Easy Connect Strip to Wire Connector is a high-quality, solderless connector designed for quick and reliable connections between LED FLEX strips and wires. Part of the Synergy 21 Easy Connect System, this IP67-rated connector is suitable for both indoor and outdoor applications, offering dust-tight and water-resistant protection. Compatible with 12mm and 14mm wide LED strips, it features a 5-pin design for RGBW strips and supports 12V/24V DC systems.

Advantages

Tool-free installation saves time and effort, while the waterproof and dustproof design ensures long-lasting performance in challenging environments. The UV-resistant polycarbonate housing and copper contacts provide durability and corrosion resistance. With a maximum current rating of 5A per channel and support for 20-16 AWG wires, this connector delivers reliable power transmission.

Suitable for

• Outdoor LED strip installations (gardens, facades, signage)
• Damp or wet locations (bathrooms, kitchens, marine)
• Indoor decorative and accent lighting
• RGBW LED strip projects requiring 5-pin connections

Key specifications

• Product Type: LED Strip Connector
• Connector Type: Strip to Wire
• LED Strip Compatibility: 12mm and 14mm wide
• IP Rating: IP67
• Number of Pins: 5-Pin (RGBW)
• Connection Method: Solderless, Quick Connect, Clip-on
• Voltage Compatibility: 12V DC, 24V DC
• Material: UV-resistant PC housing, Copper contacts
• Operating Temperature: -20°C to +60°C
• Max Current Rating: 5A per channel
• Wire Gauge Compatibility: 20-16 AWG (0.5-1.5mm²)
• Color: Black
• Certifications: CE, RoHS
• Quantity: 1 piece

Recommendations

For best results, use with Synergy 21 LED FLEX strips and ensure proper sealing of connections in outdoor environments. Always verify voltage compatibility before installation.
