SYNERGY21 Synergy 21 controlador CCT 2 hilos Zigbee*Milight/Miboxer* (LC2-ZR)

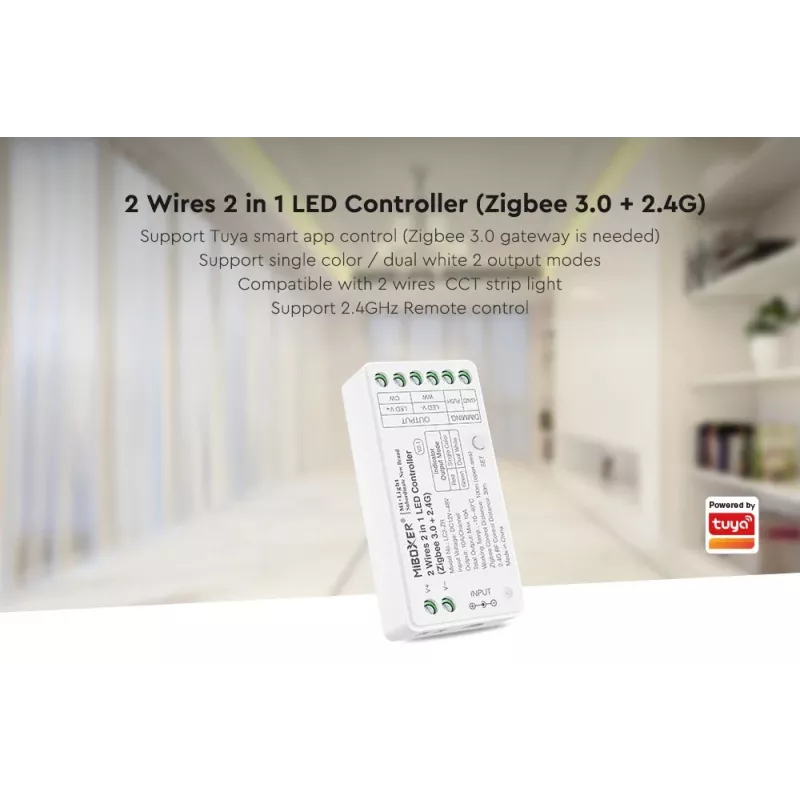

This CCT LED controller stands out by combining Zigbee 3.0 wireless control with compatibility for MiLight/MiBoxer ecosystems, enabling tunable white lighting from a single device. It drives two channels (warm white and cold white) with independent PWM dimming, making it suitable for LED strips that require adjustable color temperature.

Highlights

• Zigbee 3.0 protocol for integration with popular smart home gateways
• Supports MiLight/MiBoxer remotes and gateways for flexible control options
• Two output channels for warm white and cold white LEDs
• High current capacity: 6A per channel, 12A total
• Wide input voltage range: DC 12-24V

In daily use

The controller operates on 2.4 GHz frequency and is housed in ABS plastic with an IP20 rating, intended for indoor use. It delivers smooth dimming and color temperature adjustments, making it a practical choice for residential or commercial tunable white lighting projects.

Full specifications

• Product Type: LED Controller
• Control Type: CCT (Correlated Color Temperature) / Tunable White
• Wireless Protocol: Zigbee 3.0
• Input Voltage: DC 12-24V
• Output Channels: 2 (Warm White, Cold White)
• Max Output Current per Channel: 6A
• Total Max Output Current: 12A
• Max Output Power (12V): 144W
• Max Output Power (24V): 288W
• Dimming Capability: Yes (PWM)
• Operating Frequency: 2.4 GHz
• Operating Temperature: -20°C to 60°C
• Housing Material: ABS Plastic
• Protection Rating: IP20
• Certifications: CE, RoHS
• Application: Tunable White LED Strips

Final note

For reliable tunable white control with dual protocol support, the LC2-ZR offers a robust solution for modern lighting installations.
