SYNERGY21 Synergy 21 LED QuinLED dig2GO pack portátil de LED de píxeles digitales con regulador de potencia y fuente de alimentación

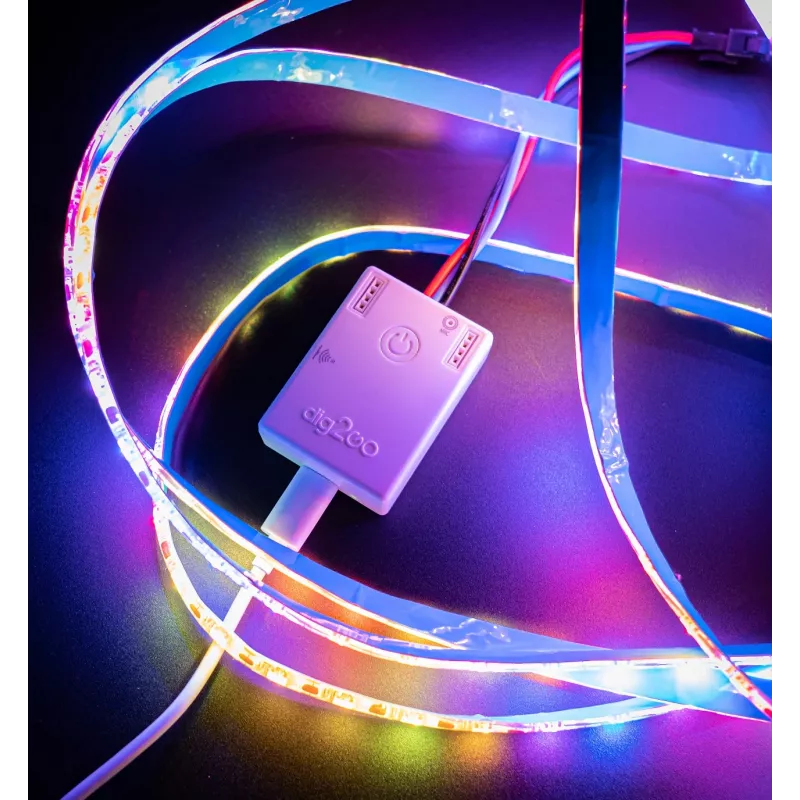

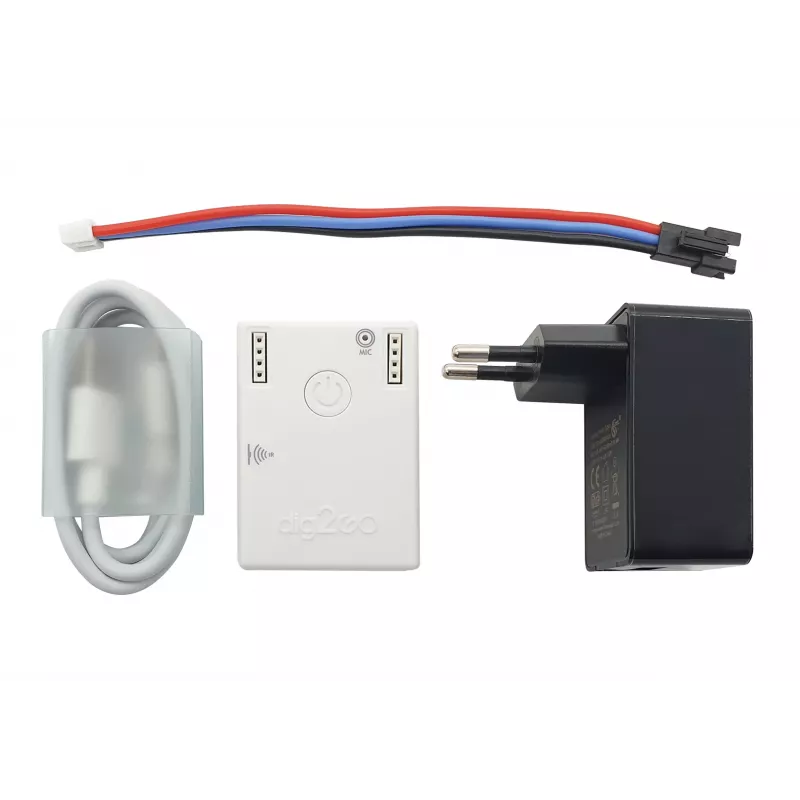

The SYNERGY21 Synergy 21 LED QuinLED dig2GO Portable Digital Pixel LED Bundle is a complete kit combining the powerful QuinLED dig2GO controller with a dedicated power supply unit, designed for portable digital pixel LED projects. This bundle offers an all-in-one solution for creating stunning ambient lighting, DIY smart lighting, and dynamic LED displays with ease.

Advantages

This bundle provides everything you need to get started with digital addressable LEDs. The QuinLED dig2GO controller features an ESP32 microcontroller with built-in Wi-Fi, enabling wireless control via the WLED firmware. The included 5V 8A power supply ensures reliable operation for up to 2000 pixels. With two data outputs, reverse polarity protection, and overcurrent protection, this kit is both versatile and safe for portable use.

Suitable for

• Portable LED projects and installations
• Ambient lighting for events, parties, or home decor
• DIY smart lighting systems
• Digital pixel LED art and displays
• Educational projects and prototyping

Key specifications

• Product Type: Digital Pixel LED Controller Kit
• Controller Model: QuinLED dig2GO
• Microcontroller: ESP32
• LED Compatibility: Digital Addressable LEDs (e.g., WS2812B, SK6812, APA102, WS2815)
• Control Interface: Wi-Fi (2.4 GHz)
• Firmware Compatibility: WLED (pre-flashed or compatible)
• Power Supply Included: Yes
• Power Supply Output Voltage: 5V DC
• Power Supply Output Current: 8A
• Controller Input Voltage Range: 5V - 24V DC
• Number of Data Outputs: 2
• Max Pixels Supported (Total): Up to 2000
• Wi-Fi Standard: 802.11 b/g/n
• Control Features: Real-time control, extensive effects library, OTA updates, app control
• Application: Portable LED projects, ambient lighting, DIY smart lighting
• Included Cables: DC Power Cable
• Enclosure Material: Compact, durable plastic housing
• Protection Features: Reverse polarity protection, overcurrent protection
• Operating Temperature: -20°C to +50°C
• Portability: Designed for portable use

Recommendations

For best performance, use with compatible digital addressable LEDs such as WS2812B or SK6812. Ensure the power supply is connected correctly and observe polarity. The controller supports OTA updates, so keep the firmware up to date for new features and improvements.
