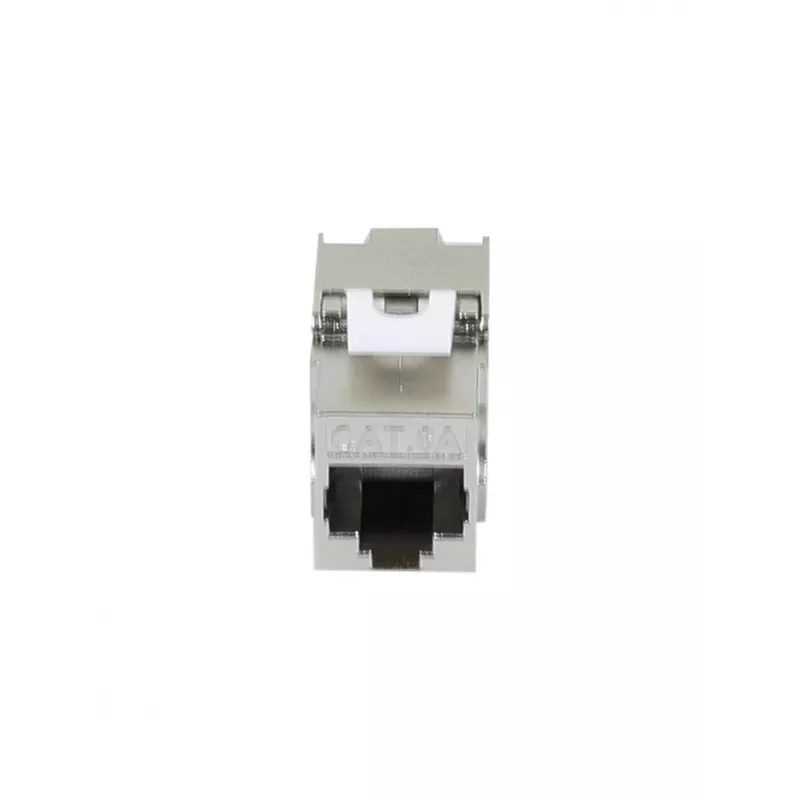

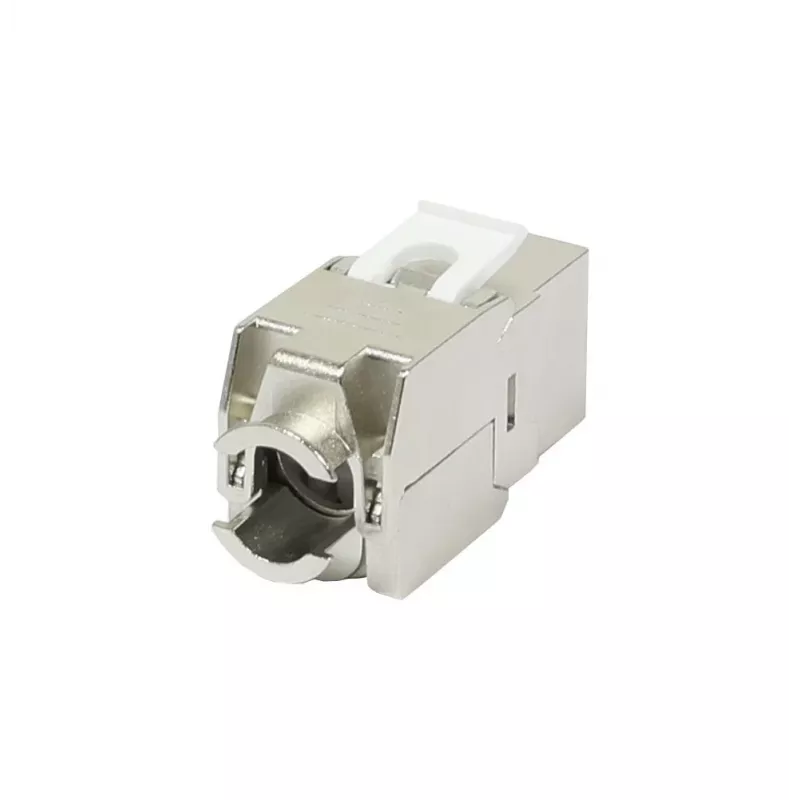

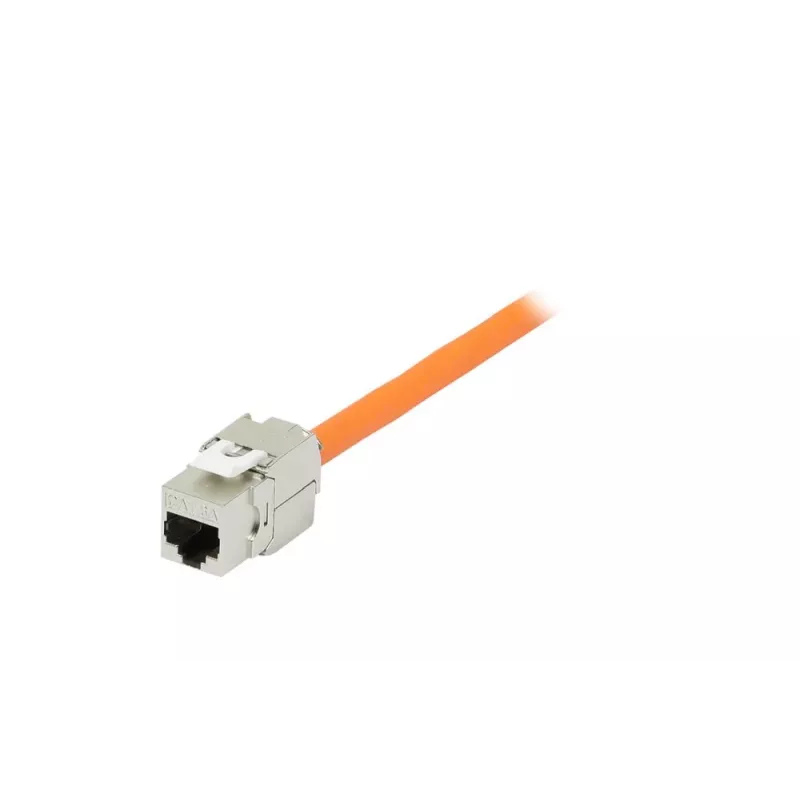

Synergy 21 módulo Keystone RJ45 CAT6A 500MHz Slim-line apantallado

The Synergy 21 Keystone Module RJ45 CAT6A 500MHz Slim-line is a high-performance keystone jack designed for structured cabling systems. It supports 10 Gigabit Ethernet (10GBASE-T) and is fully compliant with Category 6A standards, ensuring reliable data transmission at frequencies up to 500 MHz. The slim-line form factor allows for high-density installations in patch panels and faceplates.

Advantages

This keystone module offers exceptional signal integrity and reduced crosstalk thanks to its shielded design and zinc die-cast housing. The gold-plated contacts provide corrosion resistance and reliable connectivity over time. It supports Power over Ethernet (PoE, PoE+, PoE++) for powering devices such as IP cameras and wireless access points.

Suitable for

• Data centers and server rooms requiring high-speed 10G connections
• Enterprise networks with structured cabling
• High-density patch panels and faceplates
• PoE applications for IP cameras, VoIP phones, and wireless access points

Key specifications

• Connector Type: RJ45 (8P8C)
• Module Type: Keystone Jack
• Cabling Standard: CAT6A (Category 6A)
• Frequency Bandwidth: 500 MHz
• Shielding: Shielded (FTP/STP compatible)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Form Factor: Slim-line

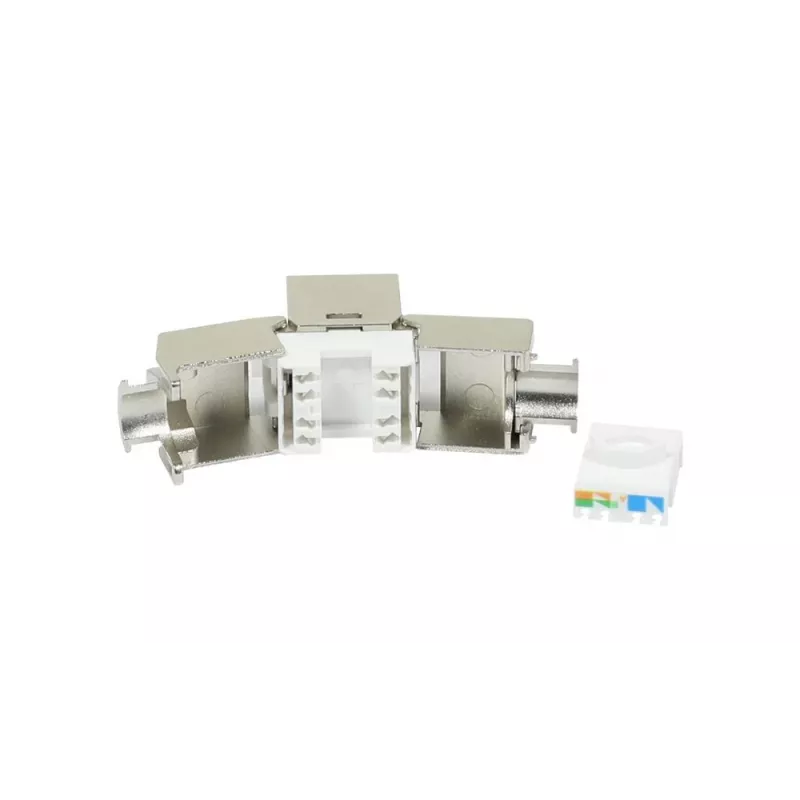

• Termination Type: IDC (Insulation Displacement Connector)
• Wiring Scheme: T568A/B compatible
• Housing Material: Zinc Die-Cast
• Contact Plating: Gold-plated (50µm)
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Wire Gauge Compatibility: 22-26 AWG Solid/Stranded
• Installation Type: Snap-in
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -10°C to 60°C

Recommendations

For optimal performance, use with CAT6A shielded patch cables and ensure proper grounding. Compatible with standard keystone patch panels and faceplates.
