Synergy 21 pigtail de fibra óptica LC 50/125 µm OM3 2 m pack de 12 colores

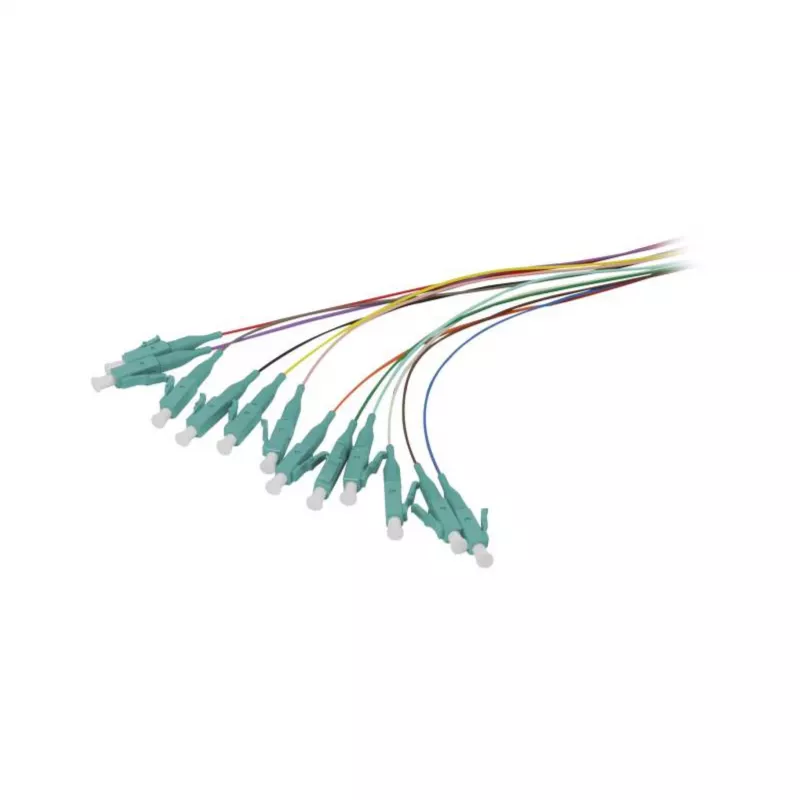

The Synergy 21 Fiber Optic Pigtail LC 50/125 µm OM3 2 m 12-Pack Coloured is a high-quality solution for reliable fiber optic connections in data centers, LAN, SAN, and telecommunications networks. This pack includes 12 individually colored pigtails, each with a 2-meter length, featuring LC connectors with UPC polish for low insertion loss and high return loss. The multimode OM3 fiber supports 850 nm and 1300 nm wavelengths, making it ideal for high-speed data transmission.

Advantages

Pre-terminated pigtails save installation time and ensure consistent performance. The color coding according to TIA/EIA-598-C simplifies identification and organization. The tight buffer design provides durability and protection for the fiber.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• Telecommunications infrastructure
• Fiber optic patch panels and splice closures

Key specifications

• Product Type: Fiber Optic Pigtail
• Fiber Type: Multimode OM3
• Core/Cladding Diameter: 50/125 µm
• Connector Type: LC
• Connector Polish: UPC
• Cable Length: 2 m
• Number of Pigtails: 12
• Color Coding: Yes (TIA/EIA-598-C)
• Buffer Type: Tight Buffer, 900 µm
• Cable Construction: Simplex
• Typical Insertion Loss: ≤ 0.3 dB
• Typical Return Loss: ≥ 20 dB
• Operating Wavelengths: 850 nm / 1300 nm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, IEC 61754-20, TIA/EIA-568-C.3

Recommendations

For optimal performance, use with compatible LC adapters and ensure proper cleaning before installation. This pigtail pack is an excellent choice for network expansions and upgrades.
