Synergy 21 S215475V2 Pigtail de fibra óptica 2 m LC/UPC OS2 pack de 12 colores

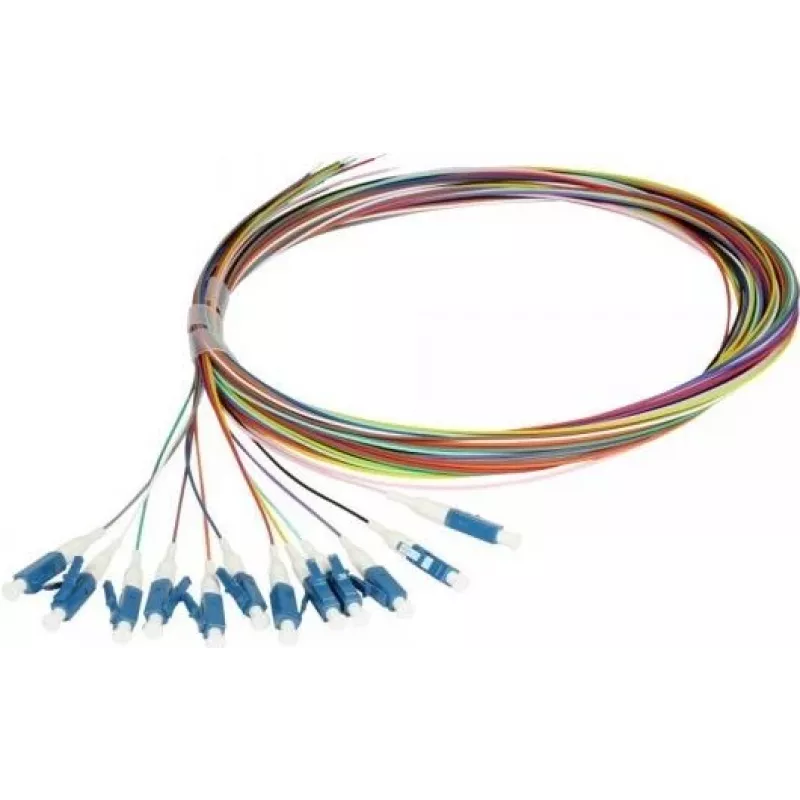

The Synergy 21 S215475V2 is a high-quality fiber optic pigtail set designed for professional network installations. This 12-pack of single-mode OS2 pigtails features LC/UPC connectors and a 2-meter length, making it ideal for splicing, patch panels, and data center applications. Each pigtail is individually color-coded for easy identification and organization.

Advantages

Pre-terminated with LC/UPC connectors for quick and reliable splicing. Color-coded jackets (12 distinct colors) simplify cable management and reduce installation errors. Low insertion loss (≤0.3 dB) and high return loss (≥50 dB) ensure excellent signal integrity. LSZH buffer material enhances safety in enclosed spaces.

Suitable for

• Fiber optic splicing and termination
• Patch panels and optical distribution frames (ODFs)
• Data centers and telecommunications rooms
• FTTx and LAN networks

Key specifications

• Product Type: Fiber Optic Pigtail Set
• Fiber Type: Single-Mode OS2 (ITU-T G.652.D)
• Connector: LC/UPC
• Number of Fibers: 12
• Length per Pigtail: 2 m
• Core/Cladding: 9/125 µm
• Polish: UPC
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 50 dB
• Jacket Colors: Black, Blue, Brown, Green, Grey, Orange, Pink, Red, Turquoise, Violet, White, Yellow
• Buffer Diameter: 0.9 mm
• Buffer Material: LSZH
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, use with compatible LC/UPC adapters and ensure proper cleaning before splicing. Ideal for high-density fiber environments where color coding aids in quick identification.
